What You Need to Know About DMR Walkie Talkies

Facebook
Twitter
WhatsApp
Discover how DMR digital walkie-talkies are transforming the way we communicate, offering advanced features and improved functionality.
engineer team working in wind turbine farm

Walkie-talkies have transformed over the years, with new technologies coming up to enhance the quality of communication. One such improvement was the introduction of the Digital Mobile Radio (DMR).

The DMR came with better qualities than those found in analog two-way radios. And over time, it became popular among walkie-talkie users in different sectors. But is it worth the hype it gets?

Understanding DMR Digital Walkie-Talkies

What is DMR?

DMR (Digital Mobile Radio) is an international standard created for two-way radios. DMRs, developed by the European Telecommunications Standards Institute (ETSI), provide a non-complex low-cost radio system option.

DMR standard allows radios of different brands to work together for all the functions available within the DMR standard. What makes it great is that DMR is an open standard. Hence users can be flexible when choosing brands rather than being locked into a proprietary product.

dmr association logo

History and Development of DMR

ETSI conceived DMR because of the need for technological advancement. Hence, ETSI produced the DMR standard as a direct digital replacement for analog PMR. The first DMR standard was authorized in 2005.

Since then, it has been updated and revised to improve its functionality and performance. Most notably, DMR tiers I and II were introduced in 2005, while DMR tier III came in 2012.

DMR vs. Analog Walkie-Talkies

DMR walkie-talkies offer several advantages over their analog counterparts:

  • Enhanced audio quality: DMR radios have better voice quality than analog. Digital audio processing reduces background noise and reconstructs signals from degraded transmissions. Hence, users can communicate even at the edge of coverage.
  • Improved range: DMR radios can penetrate through buildings and other obstacles. And this increases their coverage area.
  • Greater capacity: DMR uses Time Division Multiple Access (TDMA) technologies that allow more users to communicate simultaneously, on the same frequency.
  • Better battery life: TDMA lowers power consumption in DMR radios. A call uses only one of the two-time slots, so it uses less power. Consequently, this will increase battery life.
  • Advanced privacy and security features: DMR supports modern digital encryption and authentication methods. It prevents other users from listening in on your call. This feature makes communication more secure and private.

DMR Standards and Compatibility: The Three Tiers

The DMR standard has three tiers, each offering different levels of functionality and complexity.

  • DMR Tier I: Tier I includes license-free two-way radios in the European Union and the UK with 16 channels between 446 MHz and 446.2 MHz frequency bands. Walkie-talkies under Tier I are low-power radios with a maximum power output of 500mW. These walkie-talkies can be used by small businesses or for recreational activities.
  • DMR Tier II: It refers to licensed, high-power radios. They typically use frequencies between 136 – 174 MHz band for VHF and 403 – 527 MHz band for UHF. Tier II radios have advanced features like IP connectivity, text messaging, and GPS location tracking. These radios are primarily for professional and industrial settings, and you will require a license to use these radios.
  • DMR Tier III: Tier III is exclusively for trunked radio systems, which means radios have automatically assigned frequencies rather than having fixed frequencies.

The trunked system supports large-scale operations and provides even more advanced features. The features include dynamic channel allocation and seamless roaming between sites. Radios under this tier are typically for public safety, utilities, and transportation networks.

Note: DMR radios are designed to be compatible across different brands within the same tier. But, some manufacturers add proprietary features that may not work across other brands. Thus, verify compatibility before investing in a DMR digital walkie-talkie system.

Technical Aspects of DMR Digital Walkie-Talkies

Frequency Range and Bandwidth

DMR walkie-talkies operate within the same frequency bands as analog radios. Like analog,  they use Very High Frequency (VHF) and Ultra High Frequency (UHF). VHF frequencies range from 136 to 174 MHz, while UHF falls between 400 to 470 MHz.

The frequency band you will choose depends on how and where you intend to use the radio. Generally, VHF frequencies are best for outdoor use in places with little to no obstructions. On the other hand, UHF frequencies work better in urban areas and indoors because they can easily penetrate through walls.

DMR uses a 12.5 kHz channel bandwidth, the same as narrowband analog radios. But unlike analog radios, DMR also uses TDMA technology. TDMA allows two simultaneous voice or data calls on the same channel.

It divides a frequency into two-time slots – slots 1 and 2. Hence, two separate users can use one channel at the same time. TDMA effectively doubles the radio’s capacity without increasing the required spectrum. But, it only works with DMR repeaters — Tier II and III.

Modulation Techniques

DMR digital walkie-talkies use a modulation technique called 4-level Frequency Shift Keying (4FSK) to send voice and data messages. The 4FSK involves modulating the carrier frequency to one of four different frequency levels.

These frequency levels represent two bits of information per symbol. 4FSK allows for a more efficient radio spectrum use than the Frequency Modulation (FM) used in analog radios. Hence, DMR radios have better audio quality and increased capacity.

Error Correction and Digital Signal Processing

DMR walkie-talkies have one of the best audio quality. Unlike analog radios, DMR uses Forward Error Correction (FEC) and digital signal processing techniques to improve audio quality.

The Forward Error Correction (FEC) is a unique code that detects and corrects errors. When you talk, FEC adds redundant data to your transmission. It helps the receiver to identify and correct transmission errors.

Similarly, digital signal processing also improves audio quality by filtering background noise.

Time Division Multiple Access (TDMA)

DMR radios use Time Division Multiple Access (TDMA). What TDMA does is divide the channel into two-time slots. Each slot usually lasts for 30 milliseconds. The time slot lets two different groups of users talk simultaneously on the same channel. TDMA means more people can speak at the same time. It lowers power consumption and can hence increase the battery life of DMR radios.

differences between tdma and fdma
Differences Between TDMA and FDMA

Features and Functionality of DMR Digital Walkie-Talkies

Improved Audio Quality

DMR radios have better audio quality when compared to analog. Their improved quality is because of the audio processing techniques used in DMR. They include noise reduction and error corrections, which make it possible for users to communicate clearly. Even in noisy and crowded environments, you can communicate well.

Better Range and Coverage

DMR radios can travel longer distances and still maintain signal integrity. DMR radio signals can also penetrate walls better. These digital radios can prevent interference, fading, and other problems that can be affected by analog ones.

Superior Battery Life

DMR radios only send or receive using a one-time slot. Thus, your radio will be inactive when another user uses the second time slot. Thus, DMR radios consume less power and have longer battery life.

Advanced Privacy and Security Features

DMR walkie-talkies have improved privacy and security features such as AES256 encryption. To prevent interception, add digital encryptions to your voice and data transmissions. These privacy features also help organizations in protecting sensitive information.

Text Messaging and Data Transmission

DMR doesn’t limit you to voice communication. Instead, you can also communicate through text and data. You can also share GPS locations or send telemetry information to a receiver.

DMR Digital Walkie-Talkie Applications

Emergency Services and Public Safety

Emergency services and public safety agencies prefer DMR two-way radios. They support critical communication and are reliable. Because DMR radios have sound audio quality, users in this sector can communicate clearly.

TDMA also makes talking more efficient because more users can speak simultaneously.  The privacy features also help in protecting any sensitive information that they pass. GPS location tracker and text message feature improve situational awareness and coordination among emergency responders.

Business and Industrial Use

DMR walkie-talkies are great for business and industrial use. Construction, manufacturing, logistics, and hospitality industries can benefit from the enhanced features and performance of DMR radios.

Teams can communicate more efficiently as DMR supports both voice and data communication. DMR radios provide better range and coverage in rough environments like construction sites. Also, the advanced privacy features help to protect confidential information when communicating.

Outdoor Recreation and Adventure

DMR radios are also ideal for use outdoors as they help you communicate in remote locations where mobile signals can’t reach. Besides this, DMR radios have a better range and battery life, so users can stay connected while hiking, camping, or engaging in other outdoor activities.

GPS location tracking and text messaging capabilities can be very useful to users, which can share their location or send messages instead of sending a voice transmission. The DMR Tier I radio license-free radio is suitable for such use.

Event Management and Coordination

During events, personnel like security and event planners communicate using walkie-talkies. DMR radios make talking at huge events smoothly and easy, thus reducing the impact of the crowd and noise on communication. Fortunately, DMR radios can travel longer distances and penetrate obstacles, so are better suited for managing the event.

security guard are regulating the situation of safety in an event concert in a nightclub

Choosing the Right DMR Digital Walkie-Talkie

When choosing a DMR walkie-talkie, there are several factors you should consider :

  • Range and Power Output: Radios with higher output cover longer distances. So, if you need to communicate over long distances, go with licensed radios. They have higher power outputs. But you will need a license to use one.
  • Durability and Build Quality: Do you intend to use your radio in rough areas like construction locations, mountains, or in the woods? Then, you will need a durable walkie-talkie with a rugged structure and an IP rating.
  • Battery Life: A good two-way radio should last at least 7-10 hours. But, the best battery range will depend on where you want to use the radio and for how long. In case you forget, remember to check for the charging options available to you, such as vehicle chargers or an extra battery pack.
  • Extra Features and Accessories: Never settle for the first model you see, even if it looks good. Double-check the features and price with other models. Other features to watch out for include encryption, text messaging, GPS tracking, and Bluetooth function.

Tips for Getting the Most Out of Your DMR Walkie-Talkie

  • Familiarize yourself with the features and operation of the device: Read the user manual and ensure you learn how to use the walkie-talkie. Although DMRs are easy to use, it’s best to familiarize yourself with the advanced features.
  • Use accessories for better performance: Invest in quality walkie-talkie accessories, such as headsets, speaker microphones, and carrying cases. They help improve your walkie-talkie experience and increase the lifespan of your radio.
  • Keep software and firmware up-to-date: Regularly update your walkie-talkie’s software and firmware to ensure optimal performance and compatibility with other devices.
  • Practice proper radio etiquette: Radio etiquettes guide two-way radio users on proper communication. These etiquettes include using clear and concise language, listening before transmitting, and identifying yourself when on a call.

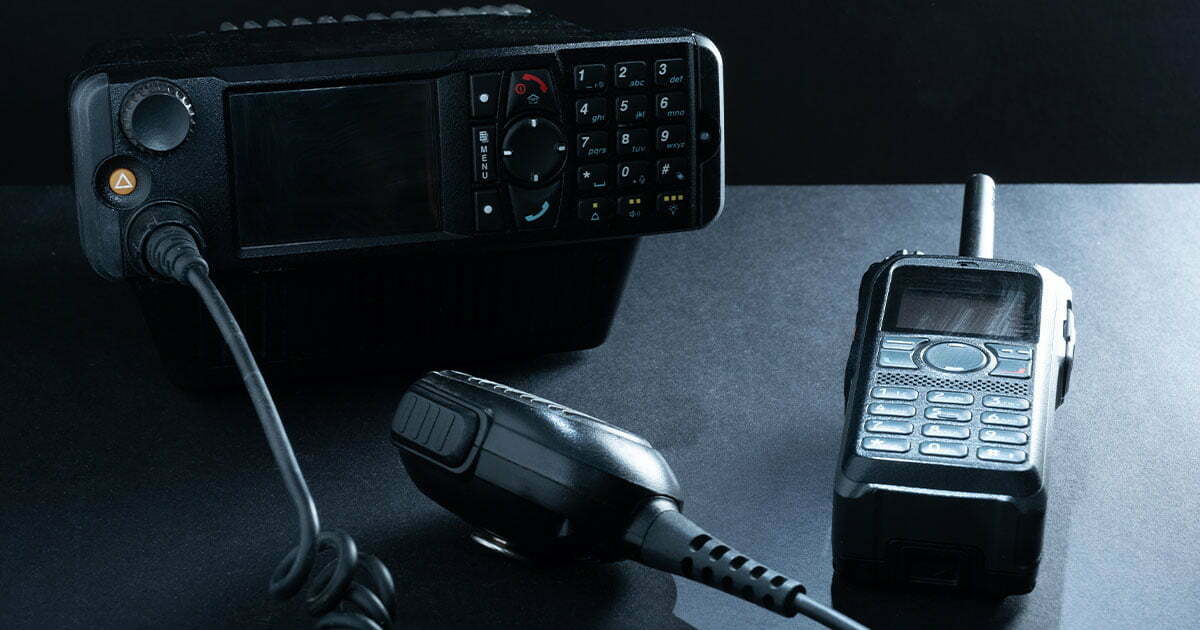

closeup of pair of mobile two way radios

Conclusion

The European Telecommunications Standards Institute (ETSI) designed DMRs to provide easier and cheaper radios. This digital radio system replaces the analog PMR. They have advanced features and also use TDMA technology that increases their capability.

There are three tiers of DMR radios, and your choice will depend on where you want to use it and how you intend to use it. For simple activities, you can choose license-free radios. But, you will need a licensed radio for greater needs. Also, consider the battery life, power output, and range before buying a DMR radio.
