Dual-band Foldable High-gain Antenna (48cm/18.9inch)



About the Product

The ANT-1 operates on VHF and UHF frequency bands. It is a foldable antenna for handheld walkie-talkies, with a total length of 48 cm (18.9 in). It supports extended signal reach while allowing the antenna to fold down when not in use, making it easier to carry and store. This walkie-talkie antenna helps improve both transmission and reception quality as it works across dual frequency ranges commonly used in two-way radio communication, including HAM radio use. It can be used as a replacement or upgrade for standard antennas.

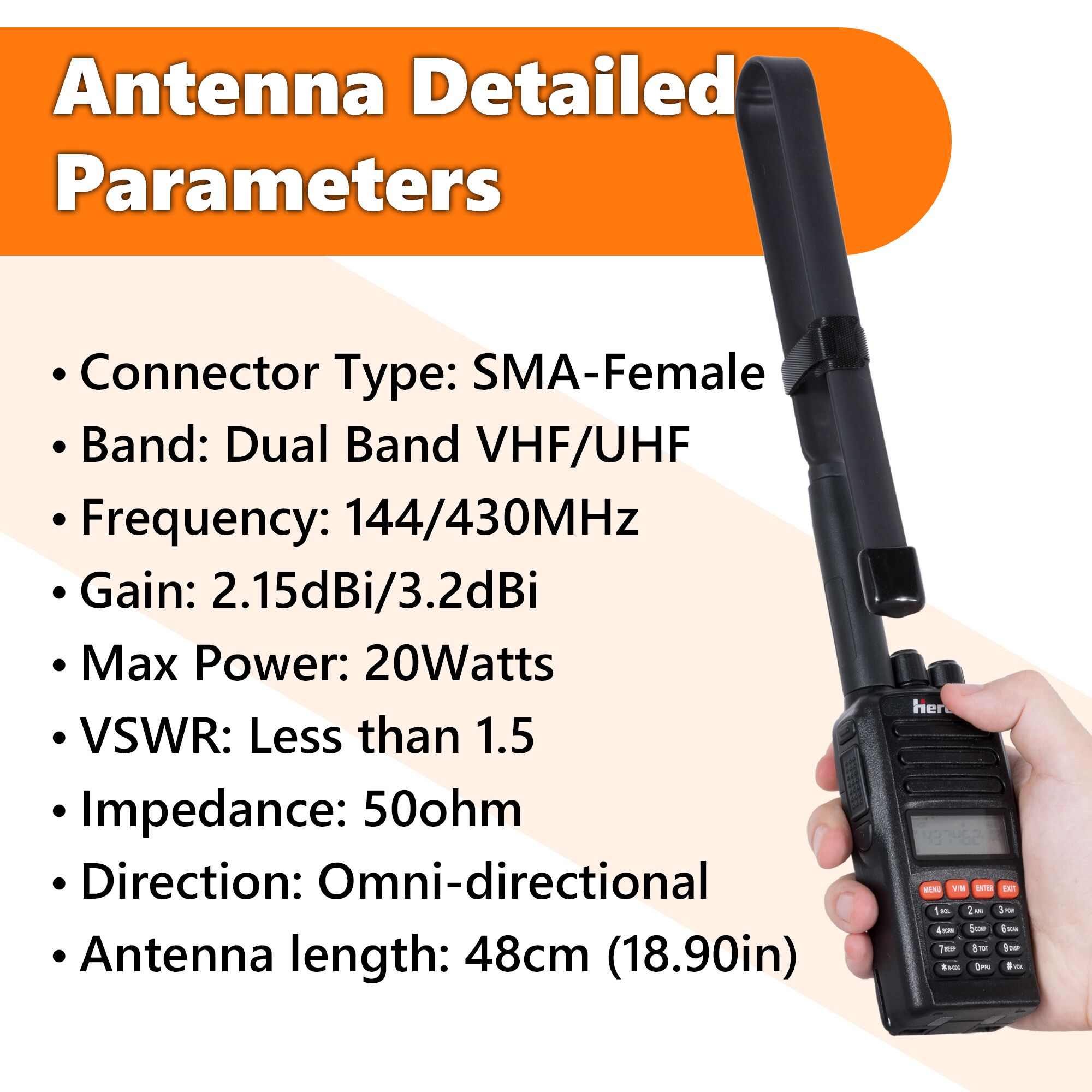

Product Specifications



• Antenna Type: Foldable walkie-talkie antenna
• Connector: SMA-female
• Frequency Bands: VHF / UHF
• Frequency Range: 136–174 MHz / 400–470 MHz
• Gain: 2.15 dBi (VHF), 3.2 dBi (UHF)

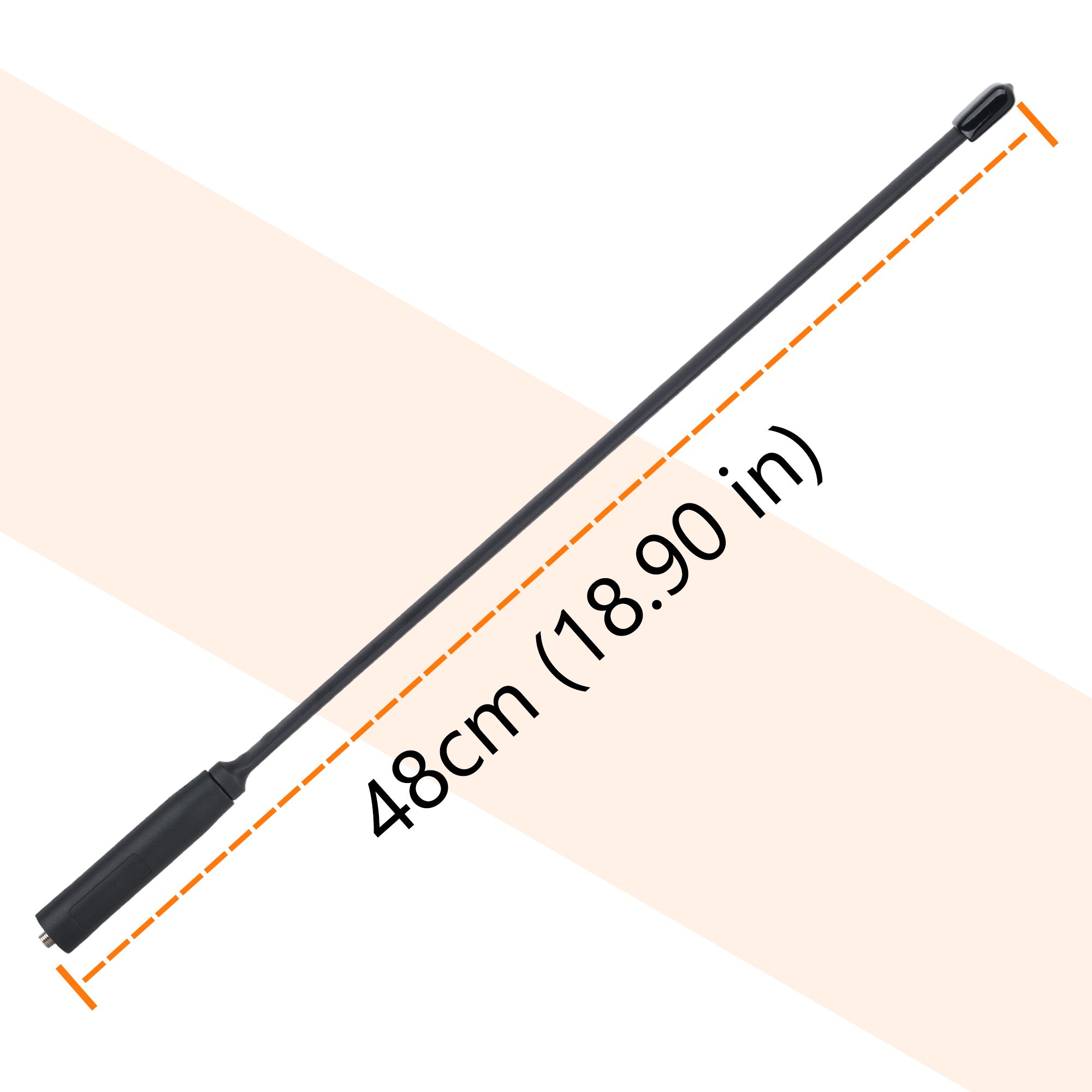

• Length: 48 cm (18.9 in)
• Maximum Power Handling: Up to 20 W
• Radiation Pattern: Omnidirectional



Standout Features

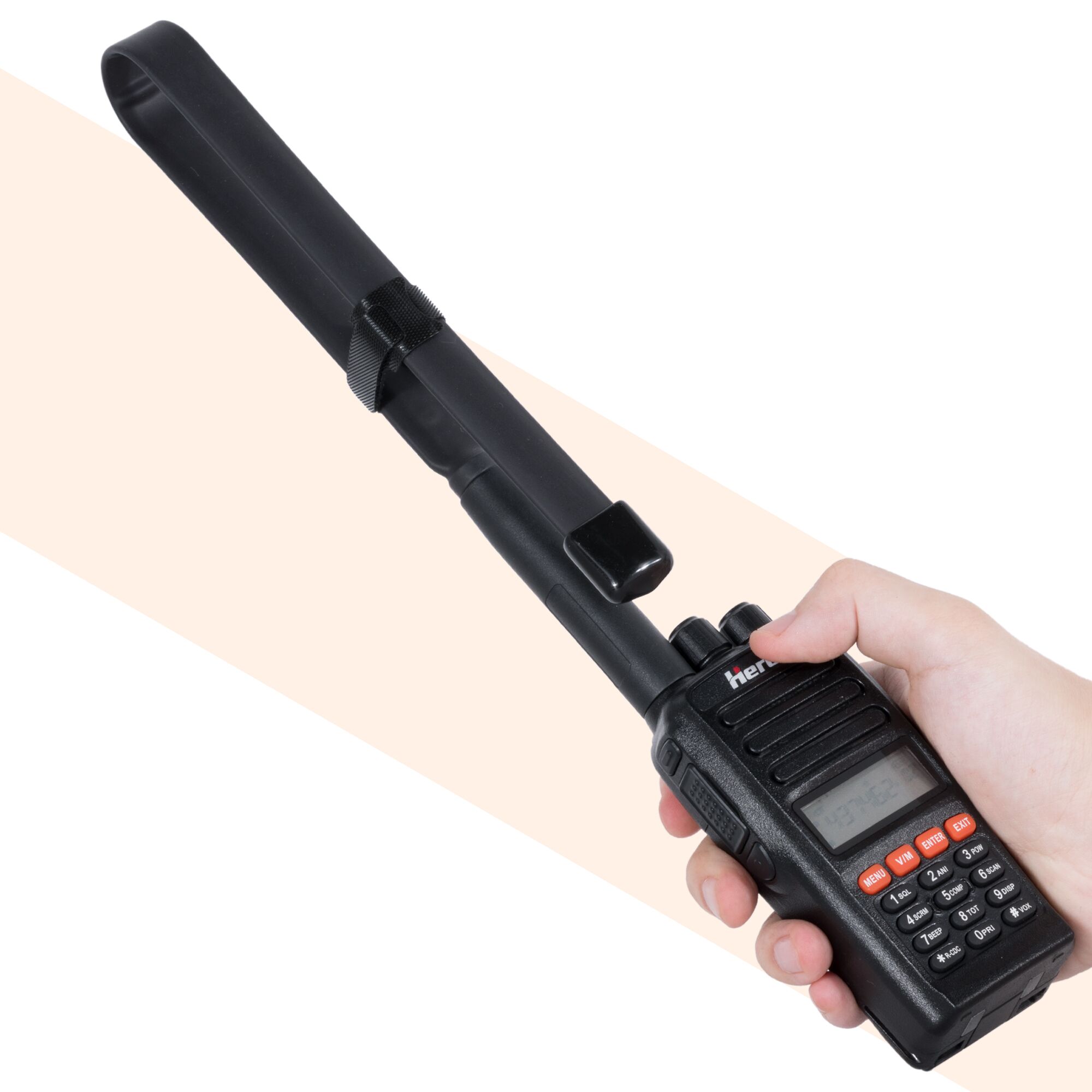

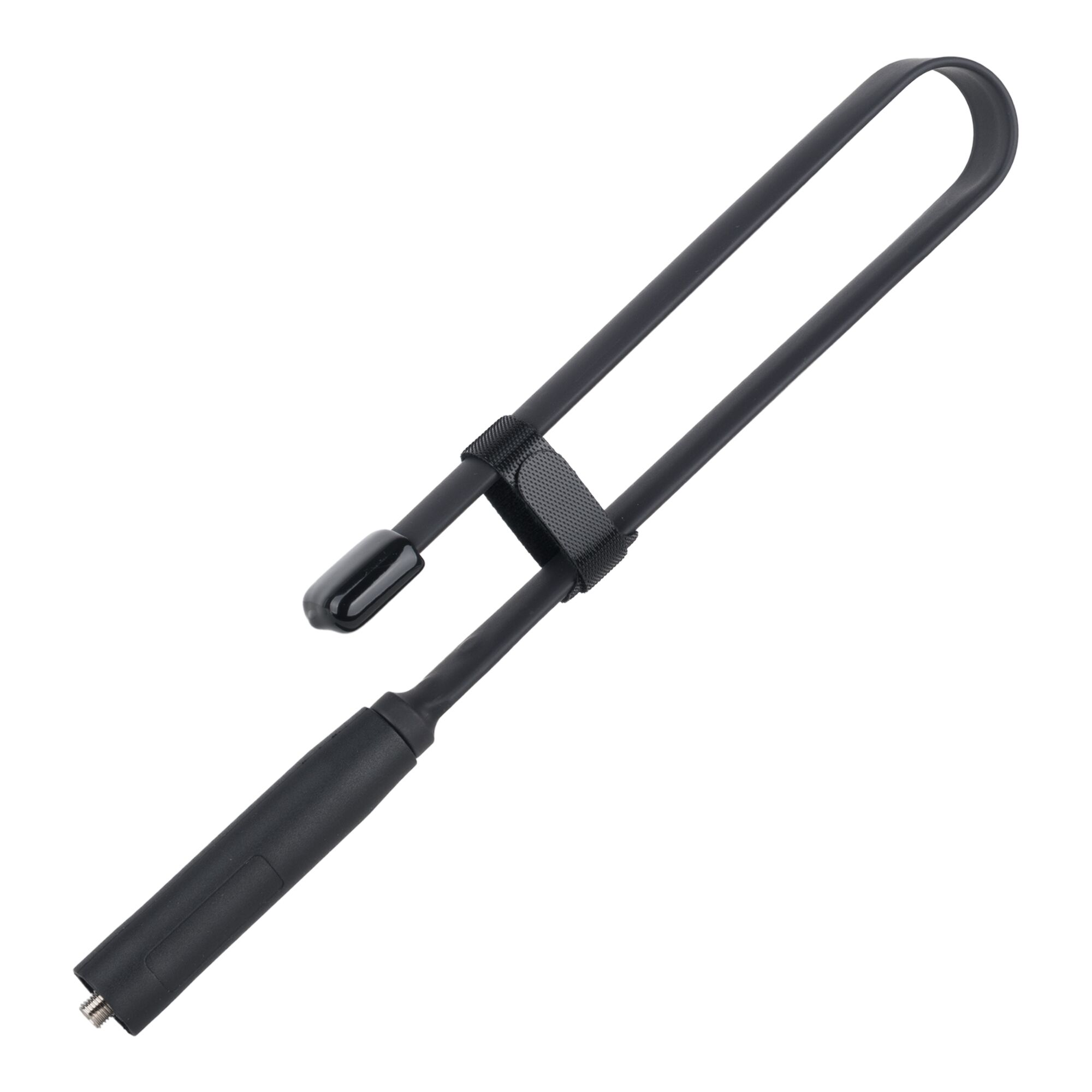

• Foldable Design: Allows the antenna to be positioned during use and folded down when not needed
• Dual-Band Operation: Supports both VHF and UHF communication

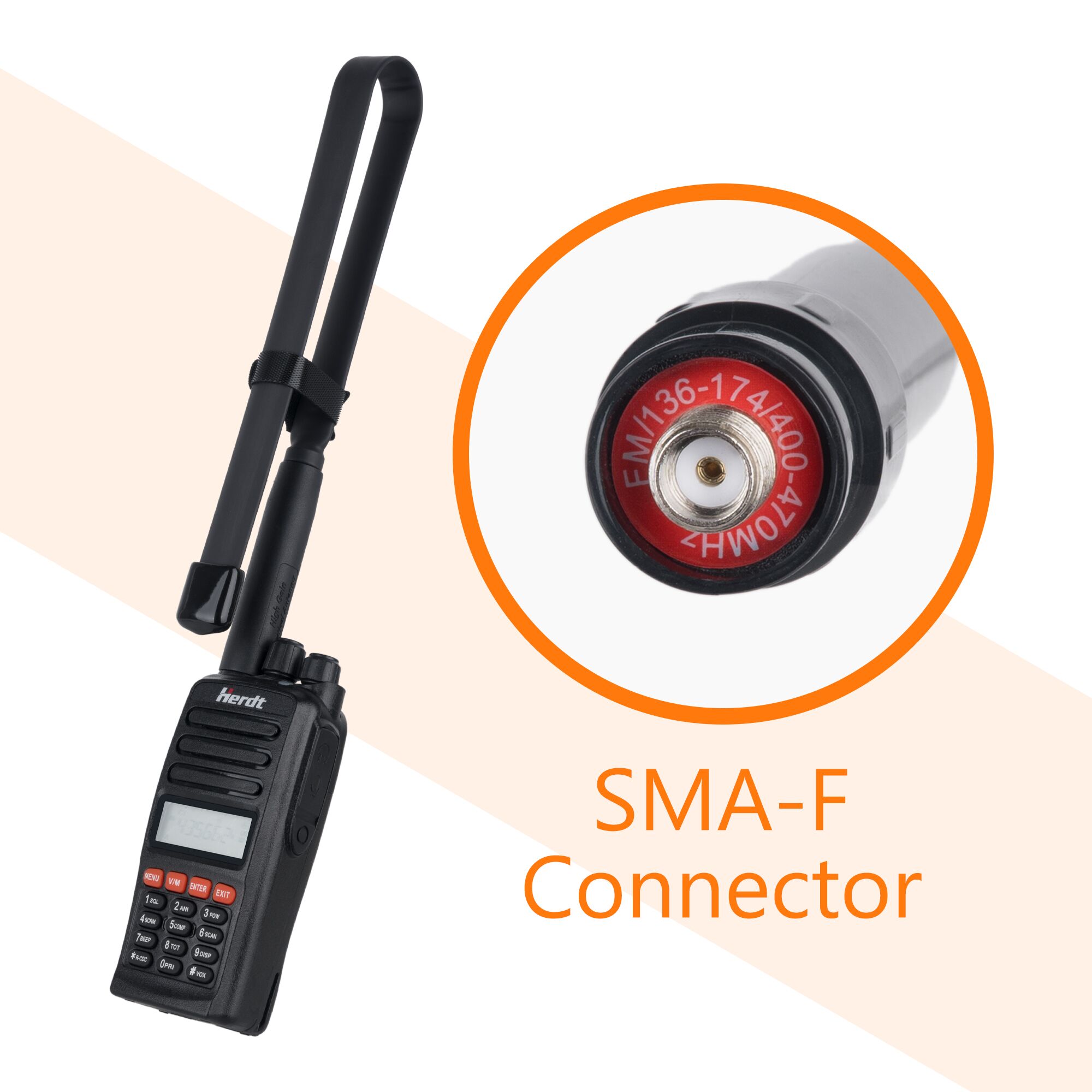

• SMA-Female Connector: Fits radios with SMA-male antenna ports
• Extended Length: Supports improved signal performance compared to shorter antennas
• Omnidirectional Pattern: Supports general two-way radio communication

Compatibility

This foldable antenna is compatible with handheld radios that meet the following requirements:

• SMA-male antenna connector
• Operation within VHF (136–174 MHz) and UHF (400–470 MHz) bands
• Transmission power up to 20 W

It can be used with Herda walkie-talkies and other handheld radio models from various brands, provided the connector and frequency requirements are met.
