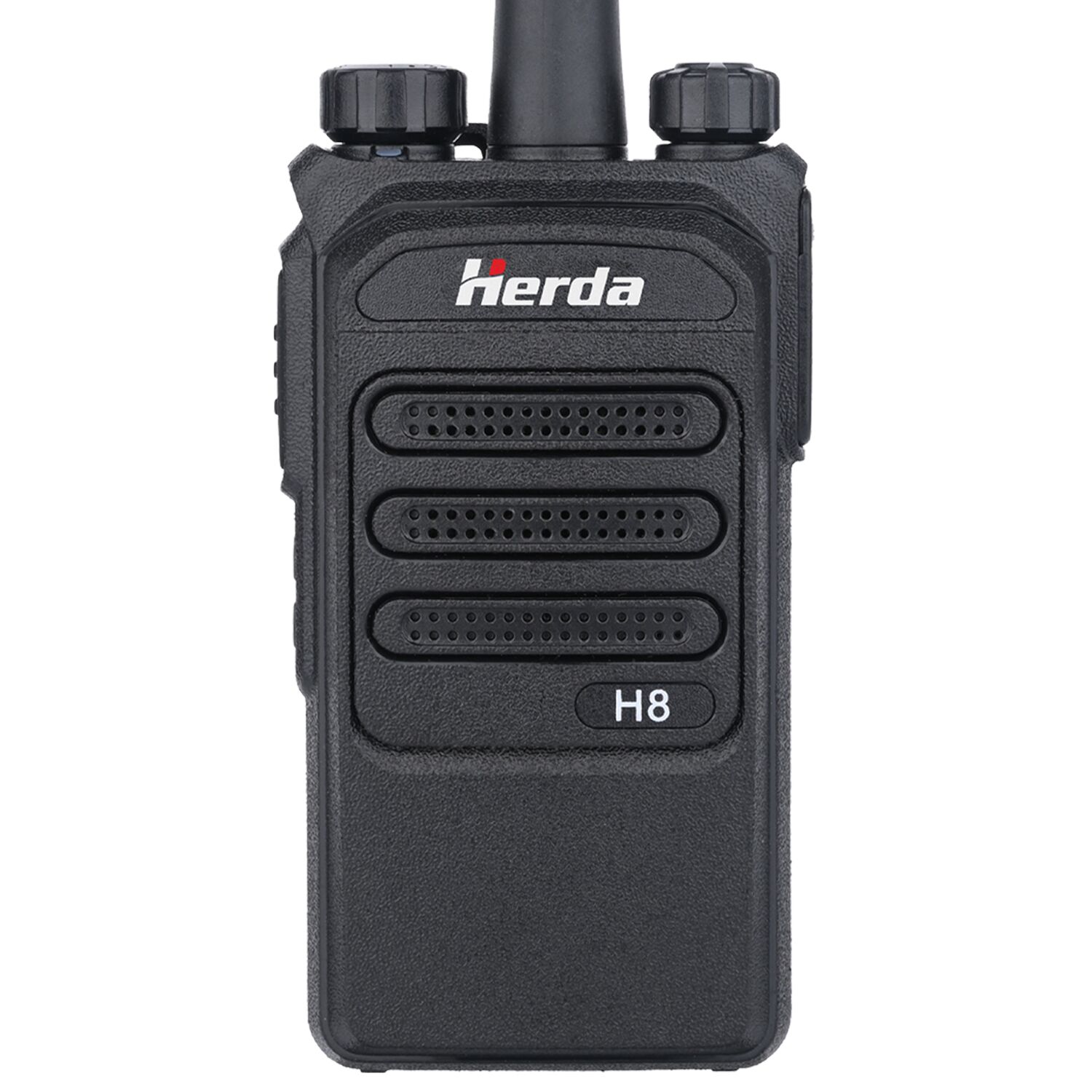

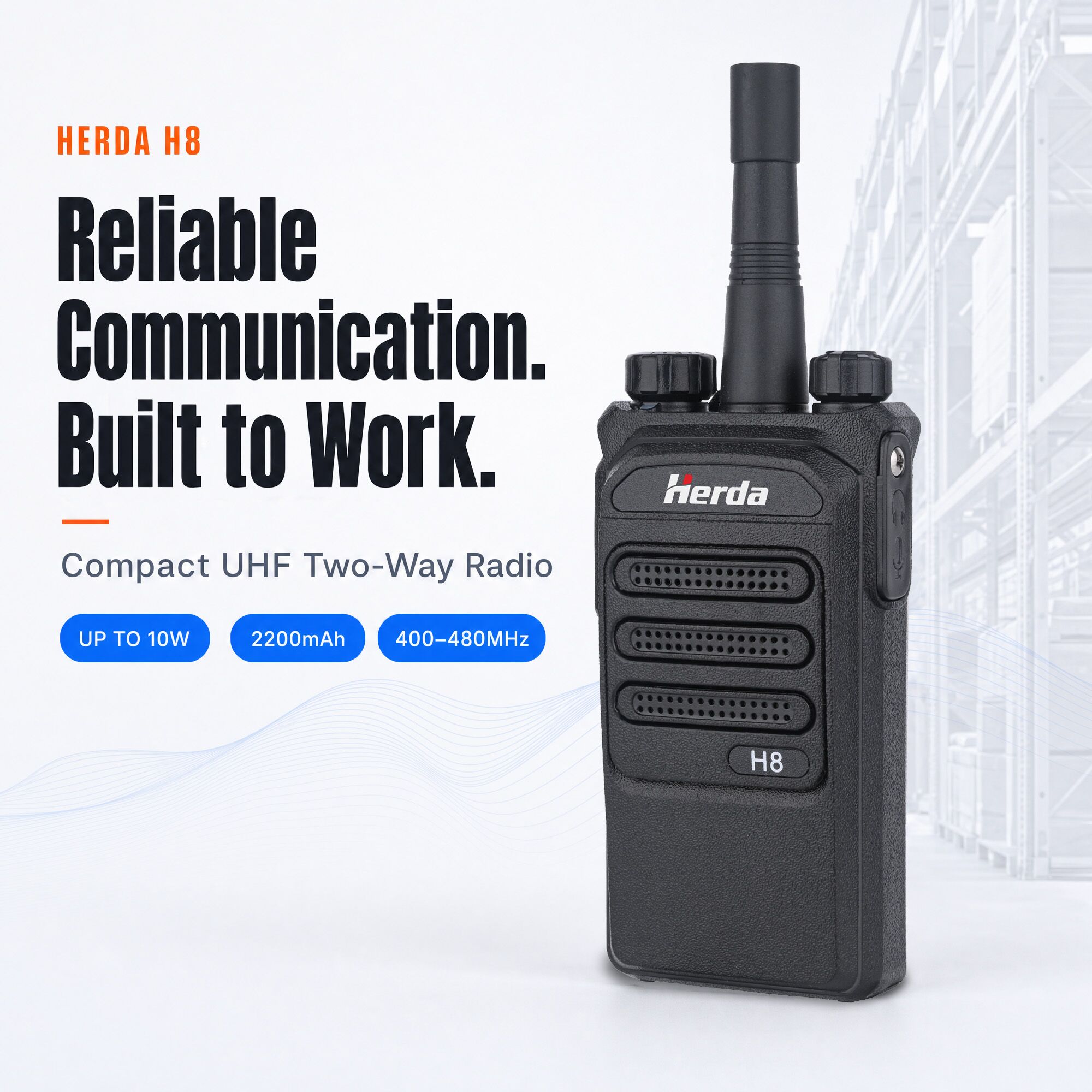

H8 Mini 10 Watts UHF Long Range Radio

Our walkie-talkies boast a 10W transmission, a robust build, and a 2000mAh battery. Enjoy clear communication with noise reduction technology.

Our walkie-talkies boast a 10W transmission, a robust build, and a 2000mAh battery. Enjoy clear communication with noise reduction technology.

Features

radio antenna icon

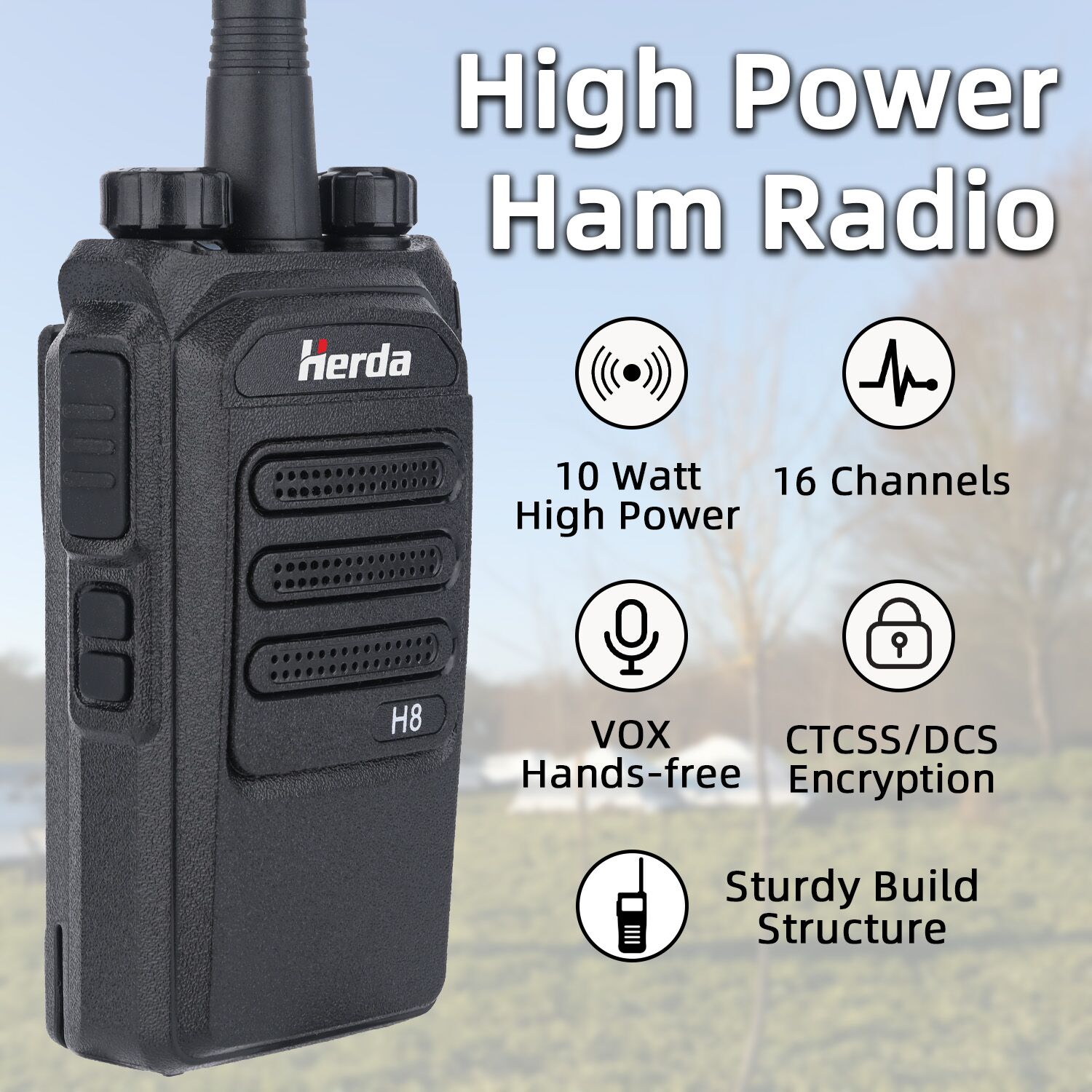

10W Power Output
robust
Reliable Metal Structure
speaker or max volume icon

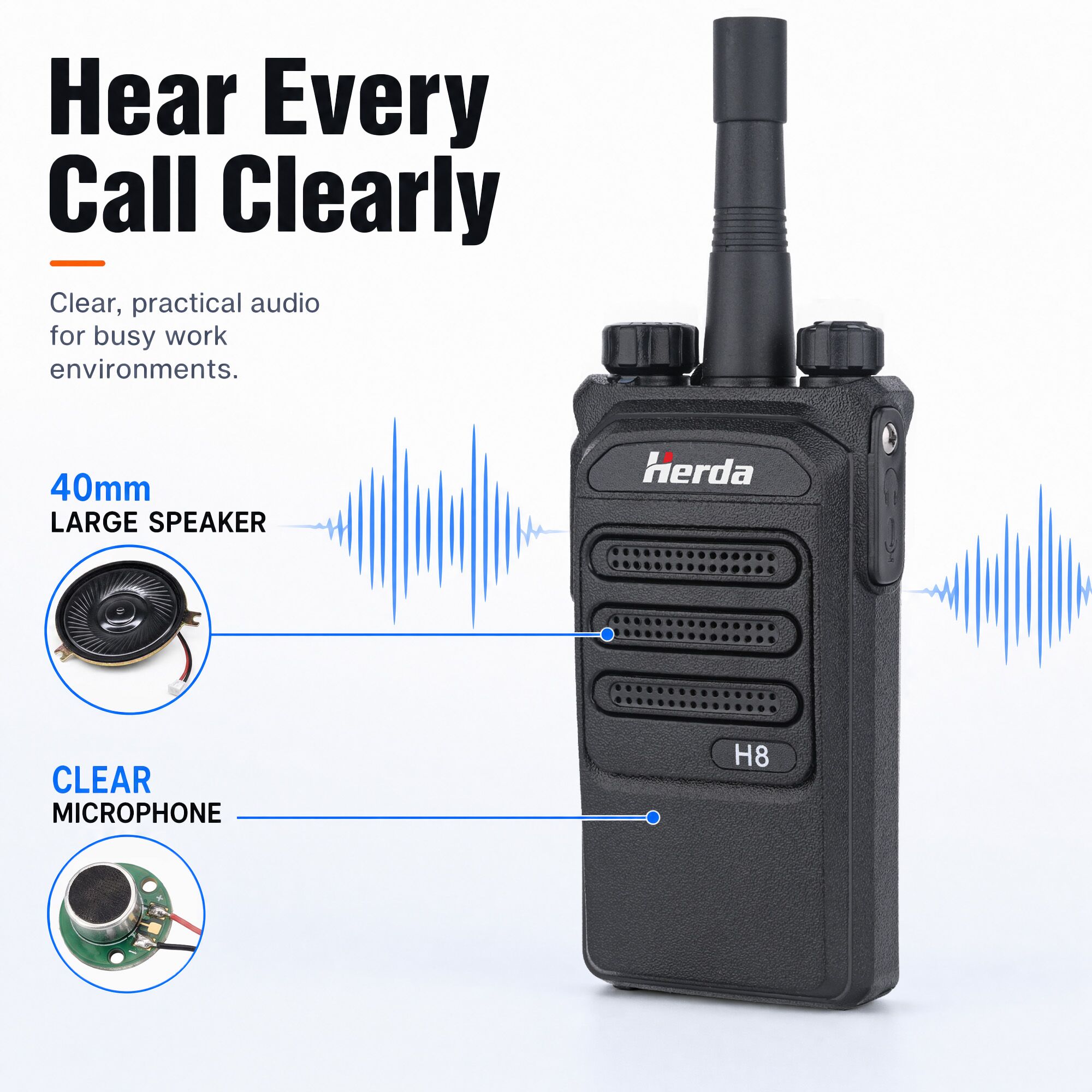

Large 40mm Speaker Caliber
vox icon
All-inclusive Features (VOX, BCL, etc.)
full power or powerful feeling battery icon
2000mAh Extensive Battery Life
microphone

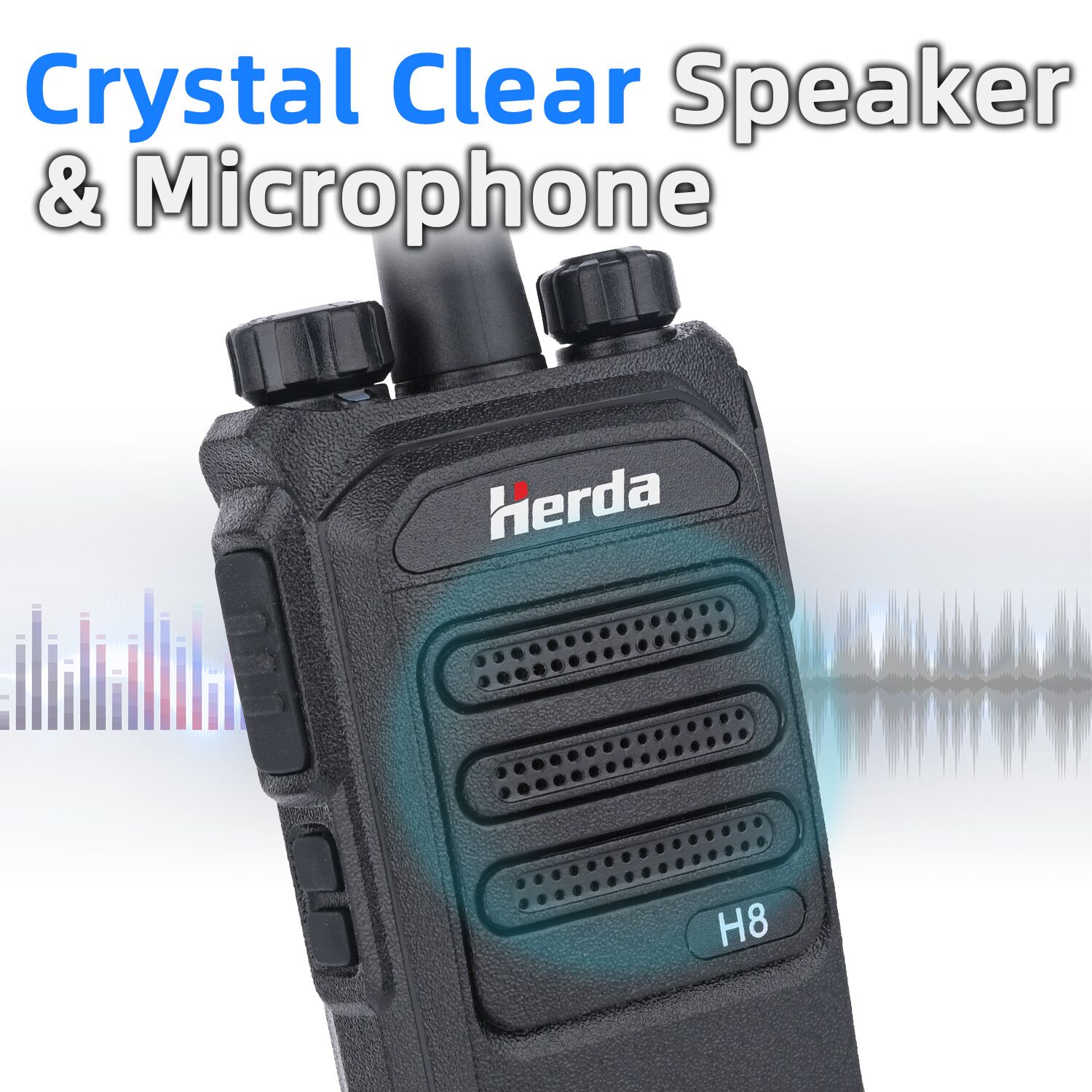

Clear Microphone
Ask about this product or Bulk Pricing

Product Description

Herda ensures a one-year warranty on every product. Reach out to our expert team for any questions or problems, and we’ll provide assistance ASAP.

h8 walkie talkie product description 1

Descriptions

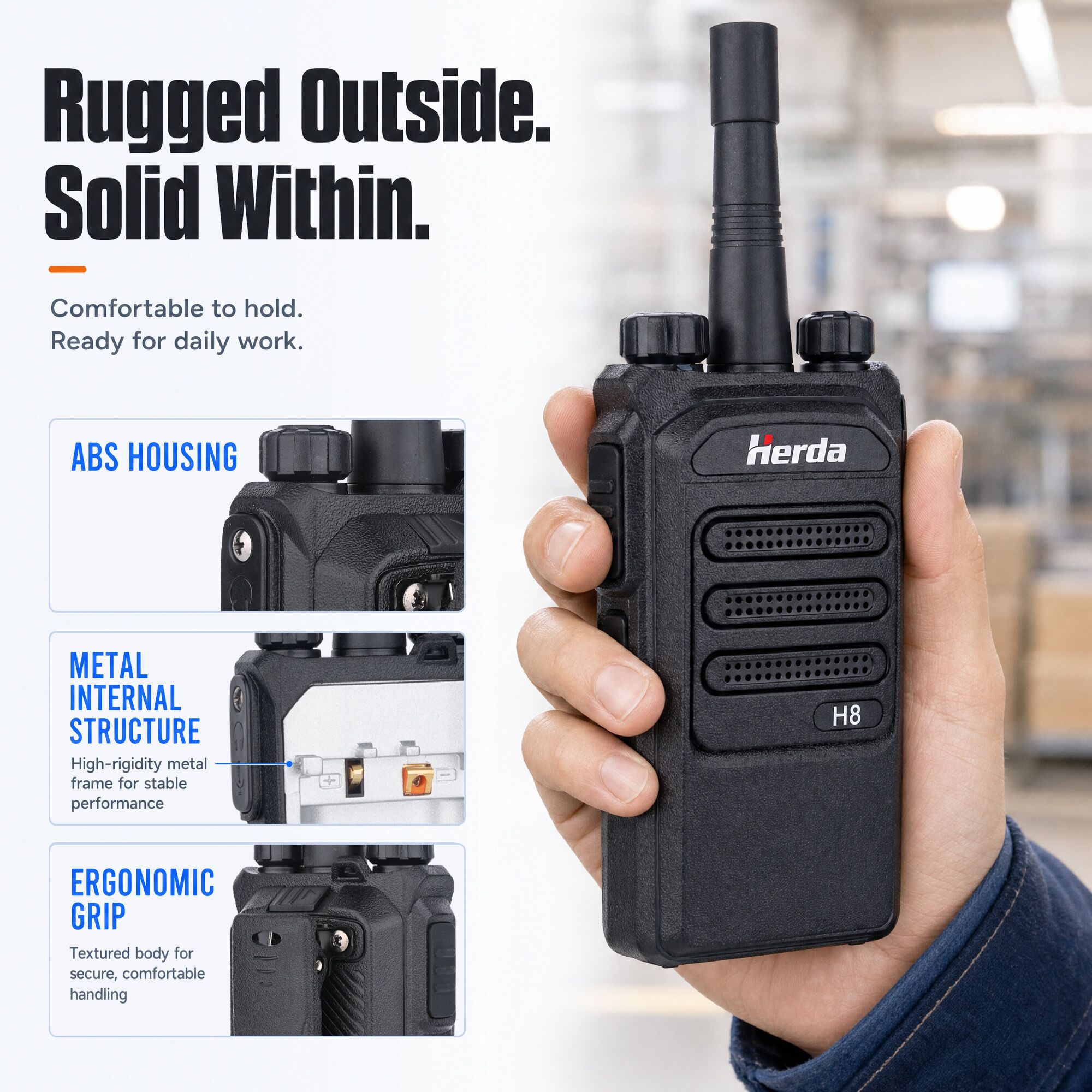

  • Featuring a rugged design and ergonomic feel, our walkie-talkies are comfortable to hold and easy to carry. They boast an industry-leading design, utilizing top-quality materials and technology for enhanced stability and performance.
  • Constructed with ABS material, the casing offers exceptional durability, scalability, elasticity, and pressure resistance. It’s designed to handle challenging environments, such as salt fog, humidity, and high temperatures, with ease.

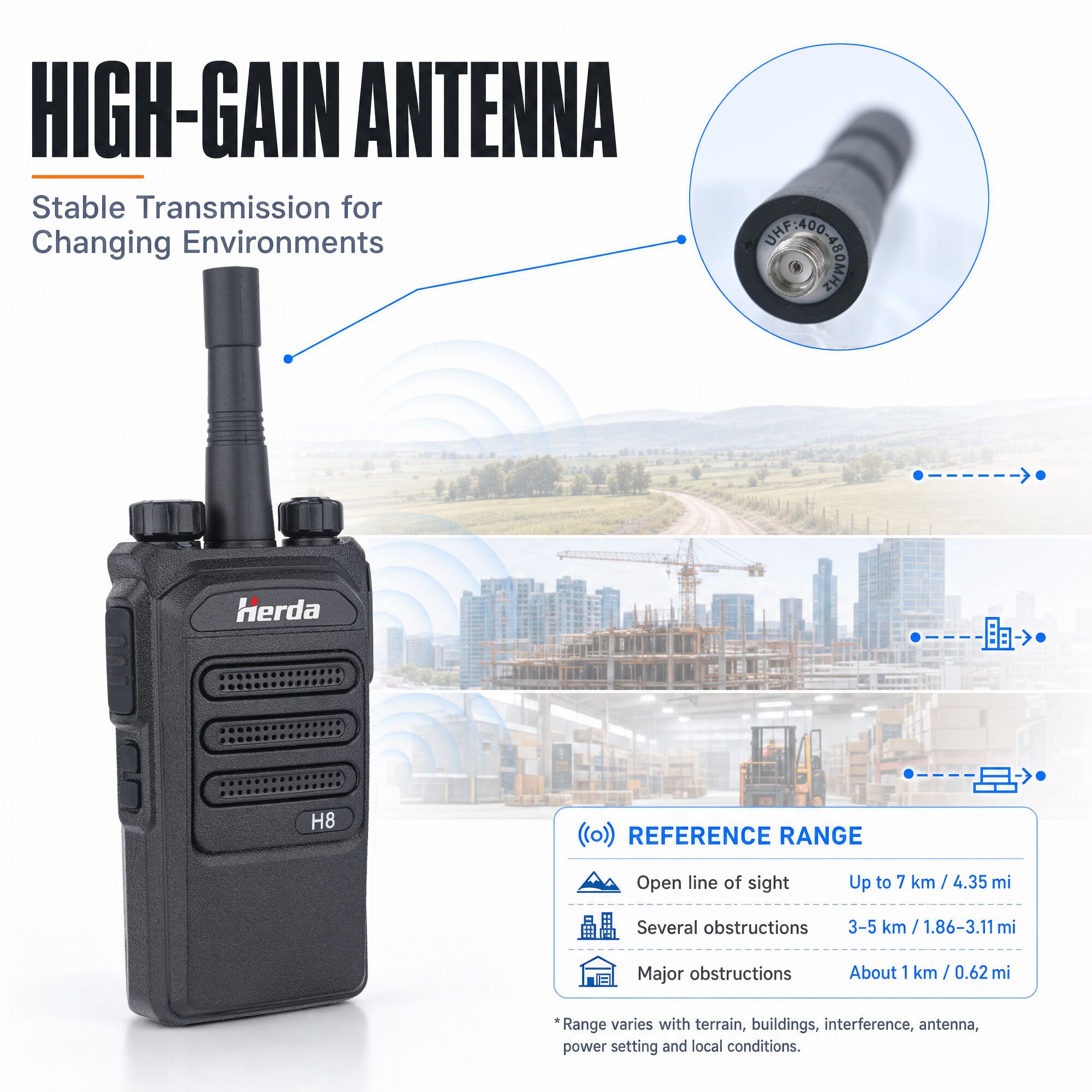

  • Equipped with an upgraded, high-quality, high-gain antenna, our walkie-talkies deliver improved and stable transmission.

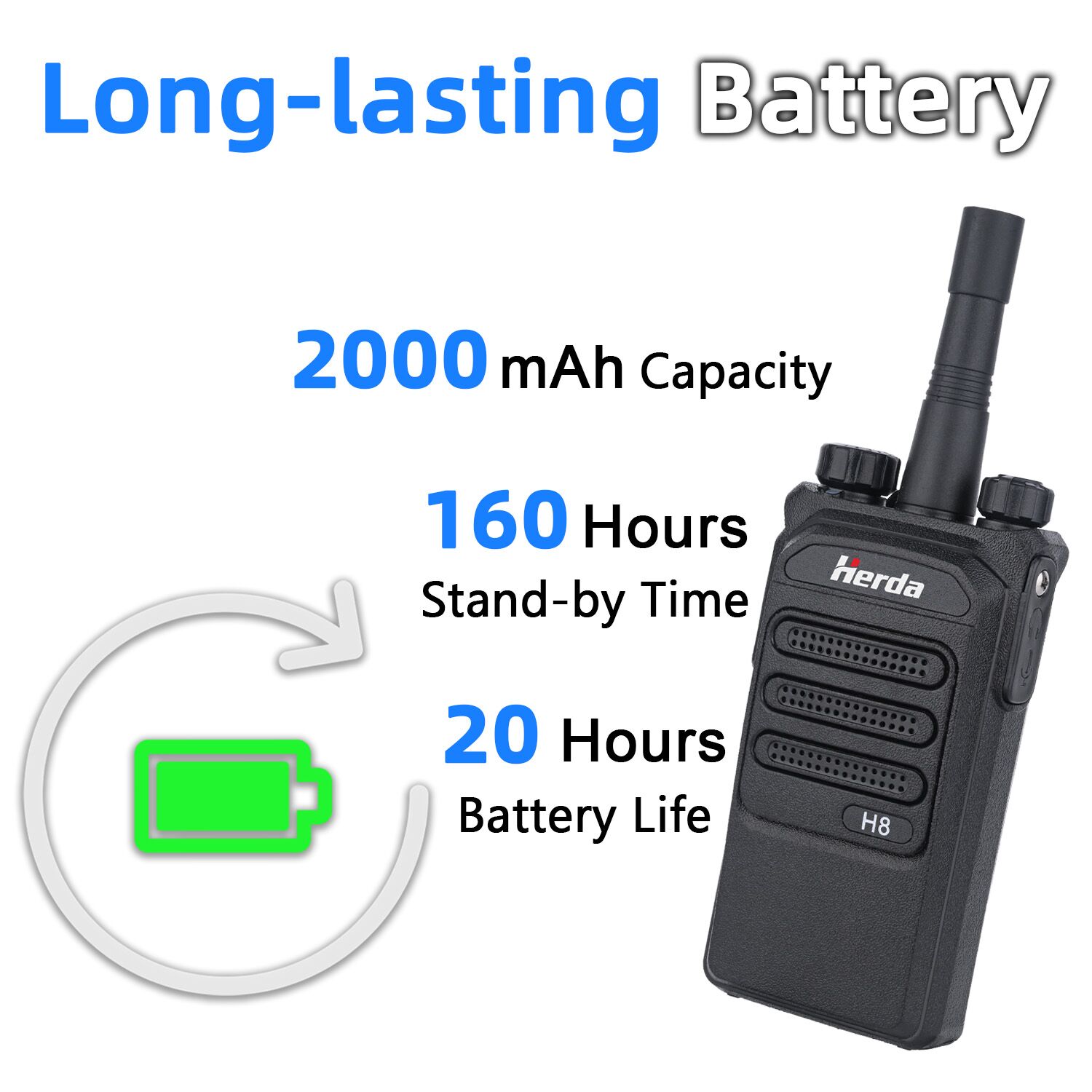

  • The 2000mAh high-capacity Li-ion battery ensures long-lasting performance, while the built-in optional power-saving function extends the device’s working hours. Experience longer battery life and increased reliability compared to similar products on the market.

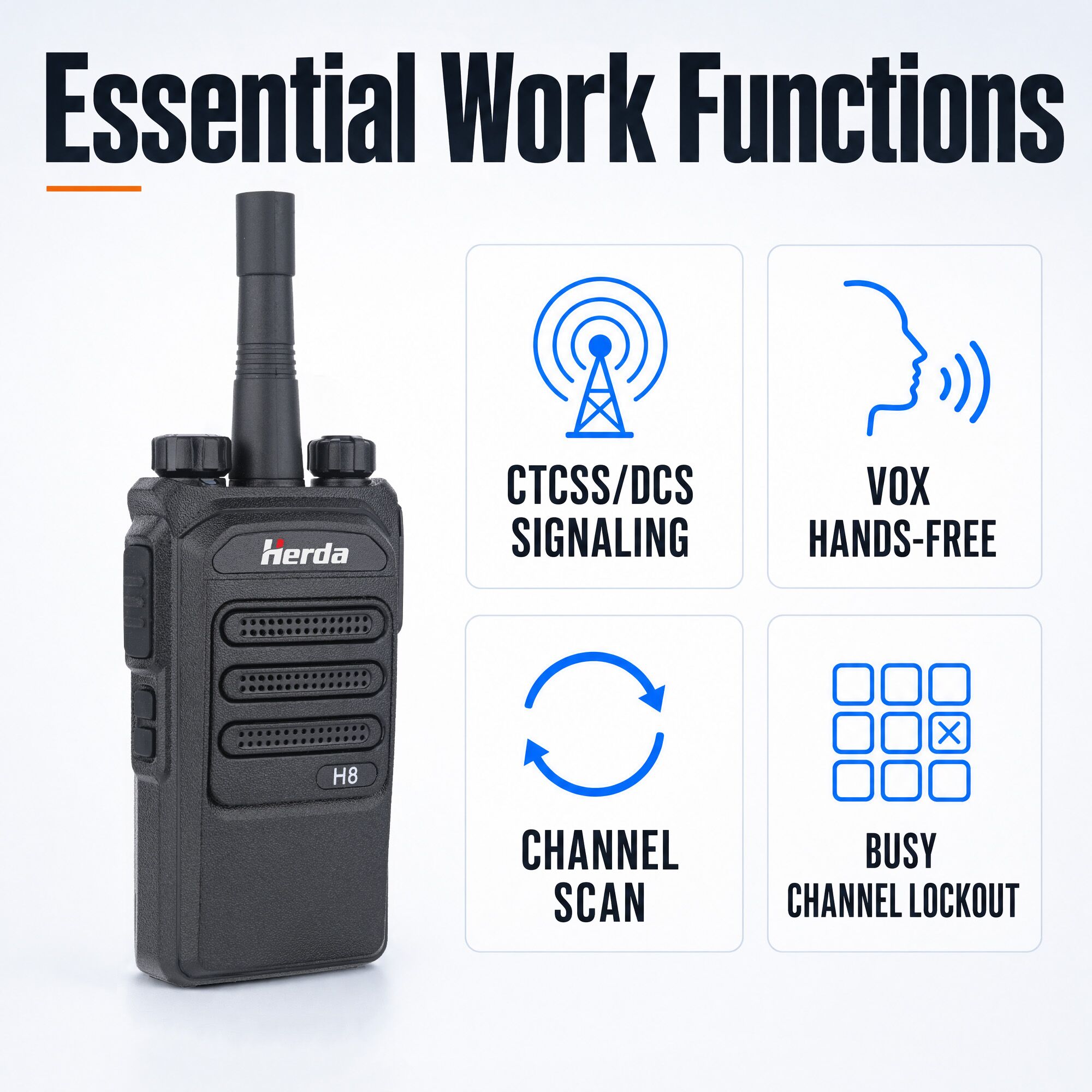

Main Functions

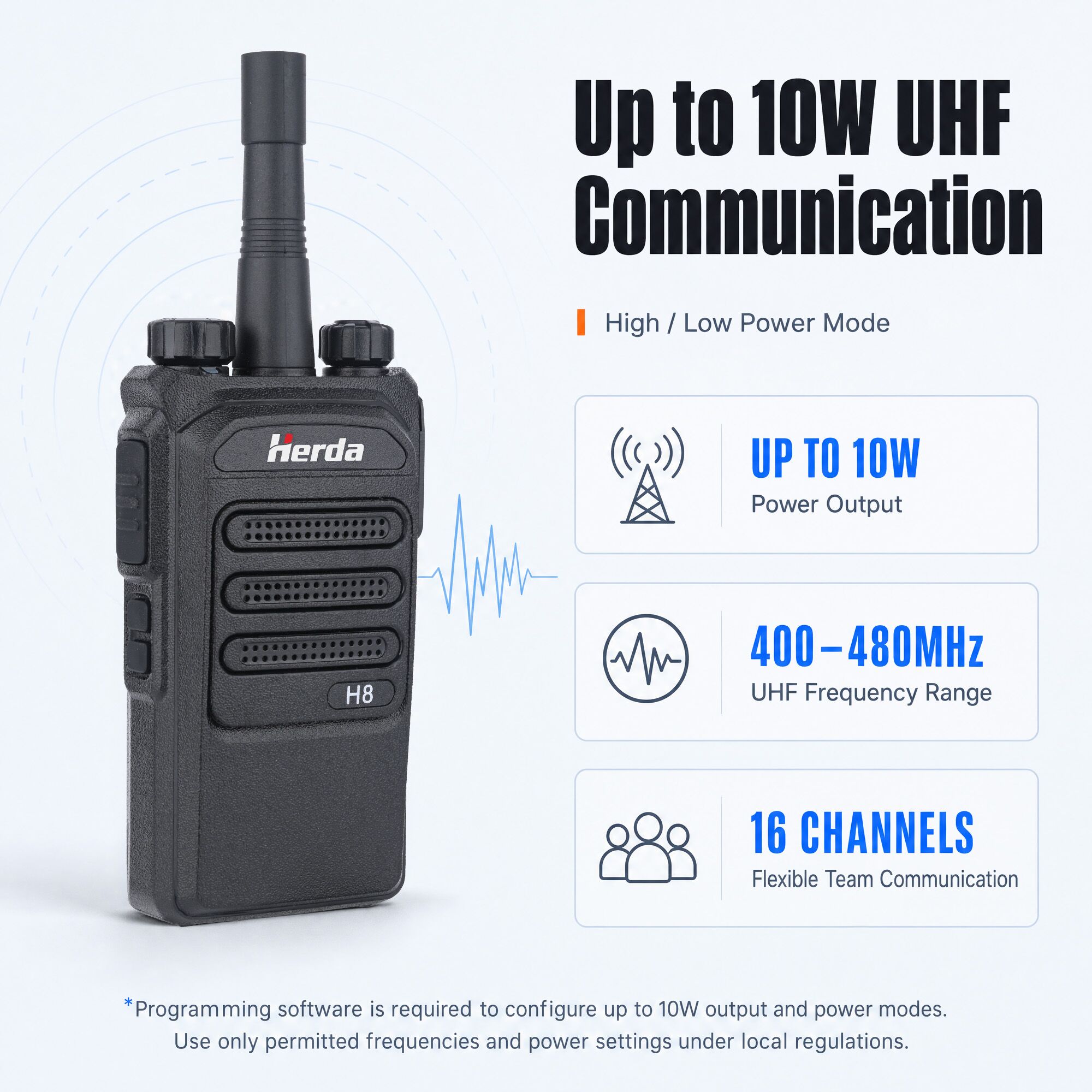

  • Up to 10W High Power Output (Programming software needed)
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set

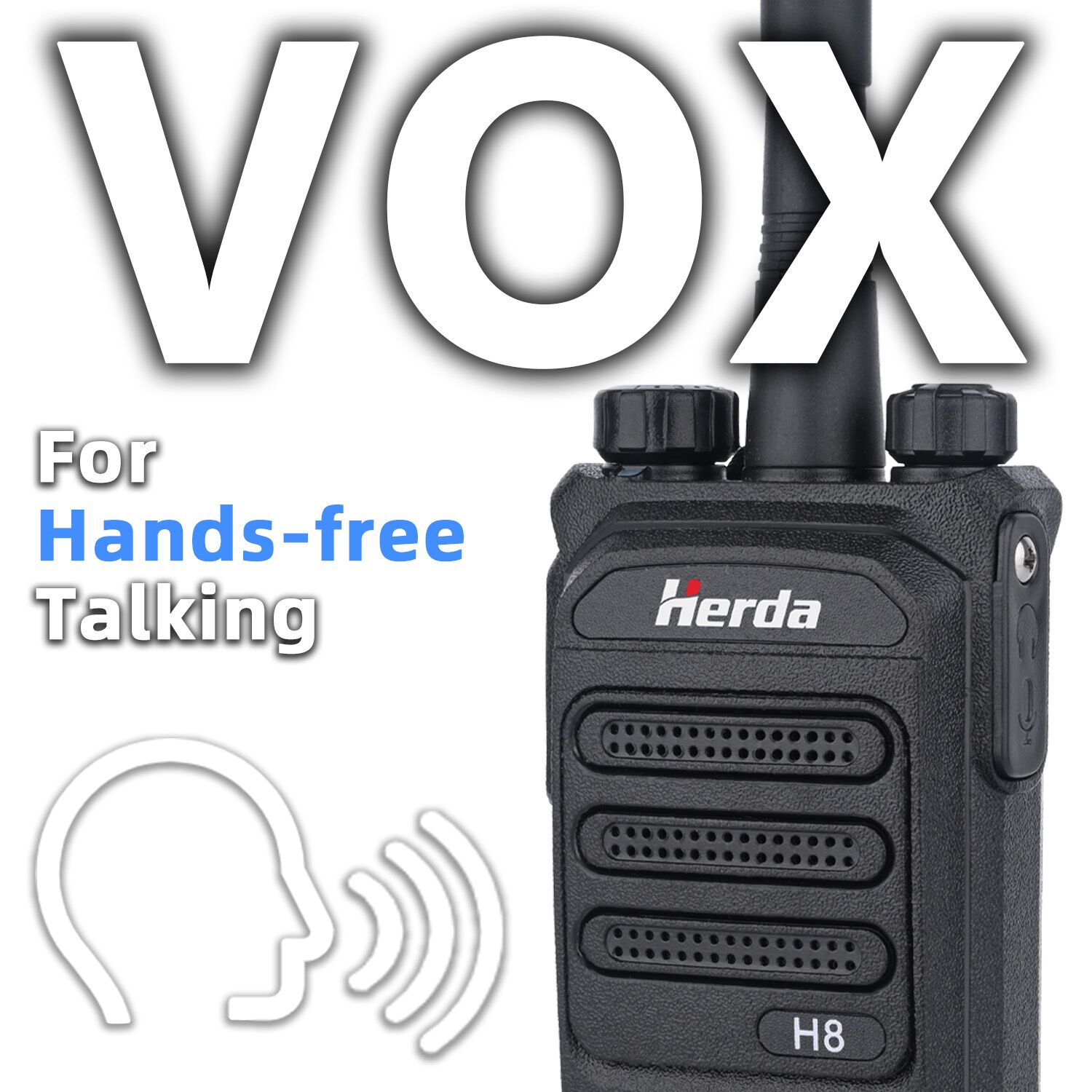

  • VOX
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode

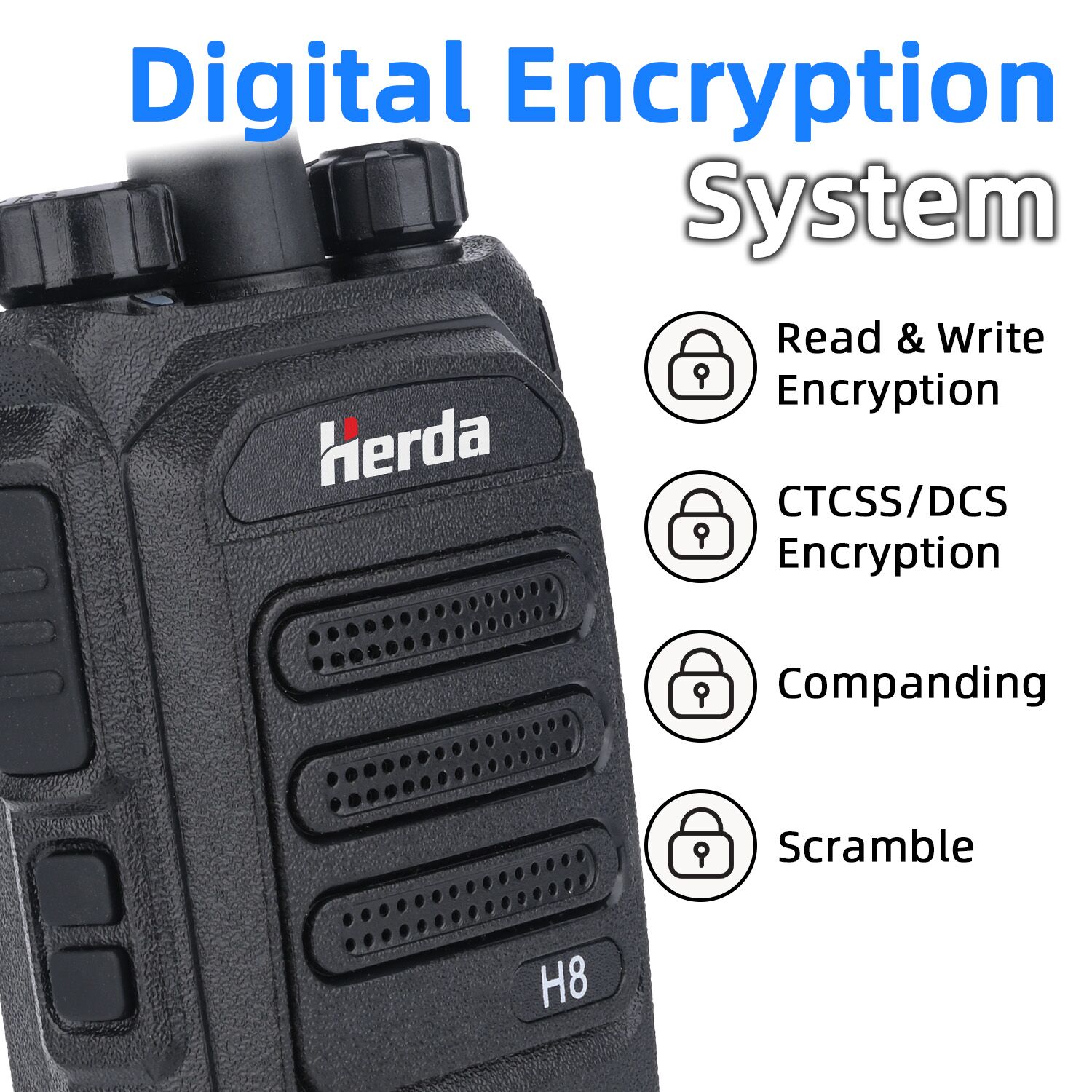

  • Read/Write Frequency Encryption
  • Voice Notification


*This walkie-talkie operates within the GMRS and PMR446-approved guidelines.

h8 walkie talkie product description 2
h8 walkie talkie product description 3
h8 walkie talkie product description 4

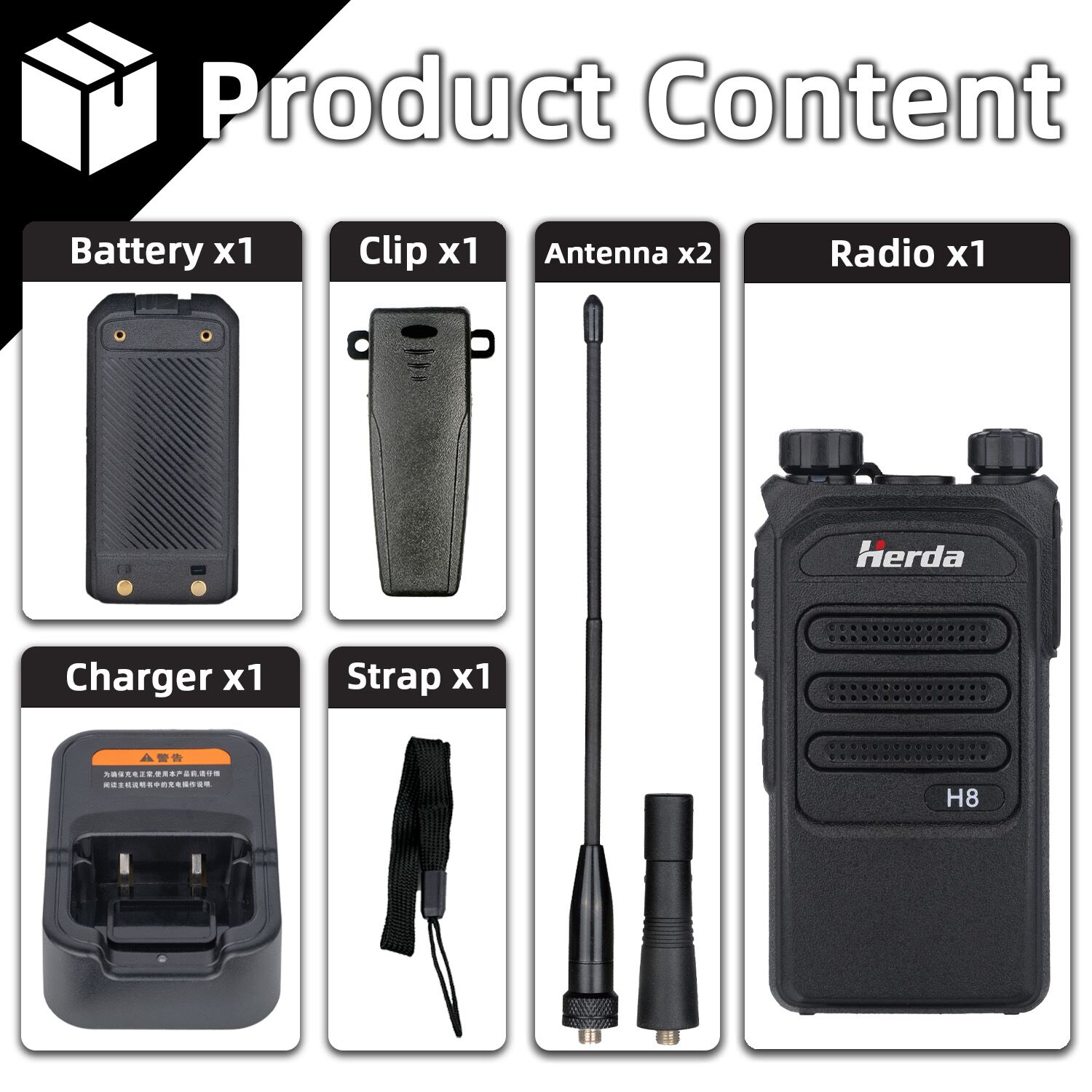

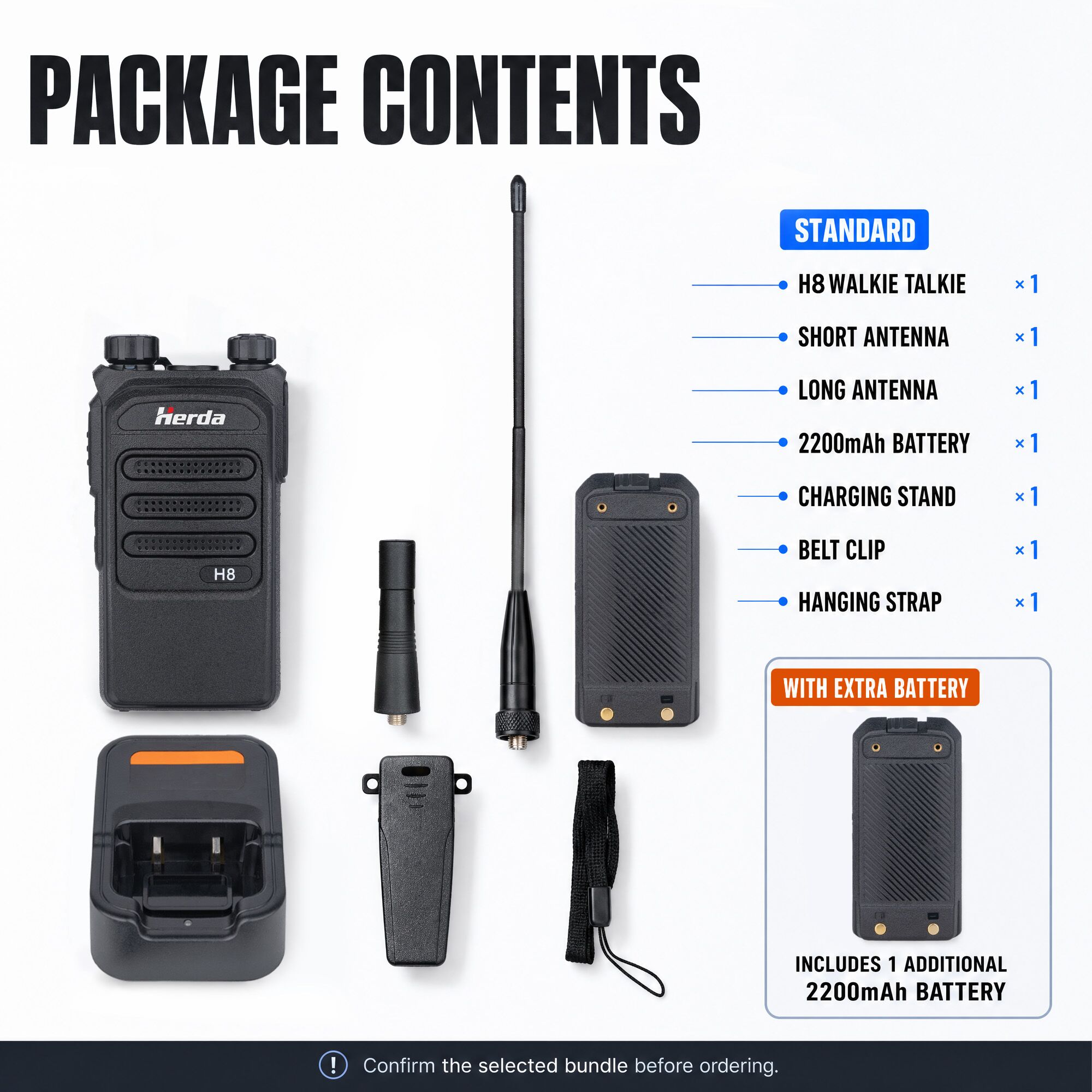

What's Included In Single Product Unit:

  • H8 Walkie Talkie * 1
  • Short Antenna * 1
  • Long Antenna * 1
  • Battery * 1
  • Charging Stand * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Detail Specifications

General

Frequency Range
UHF: 400-470MHz
Channel Capacity
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2000mAh
Antenna Impedance
50Ω

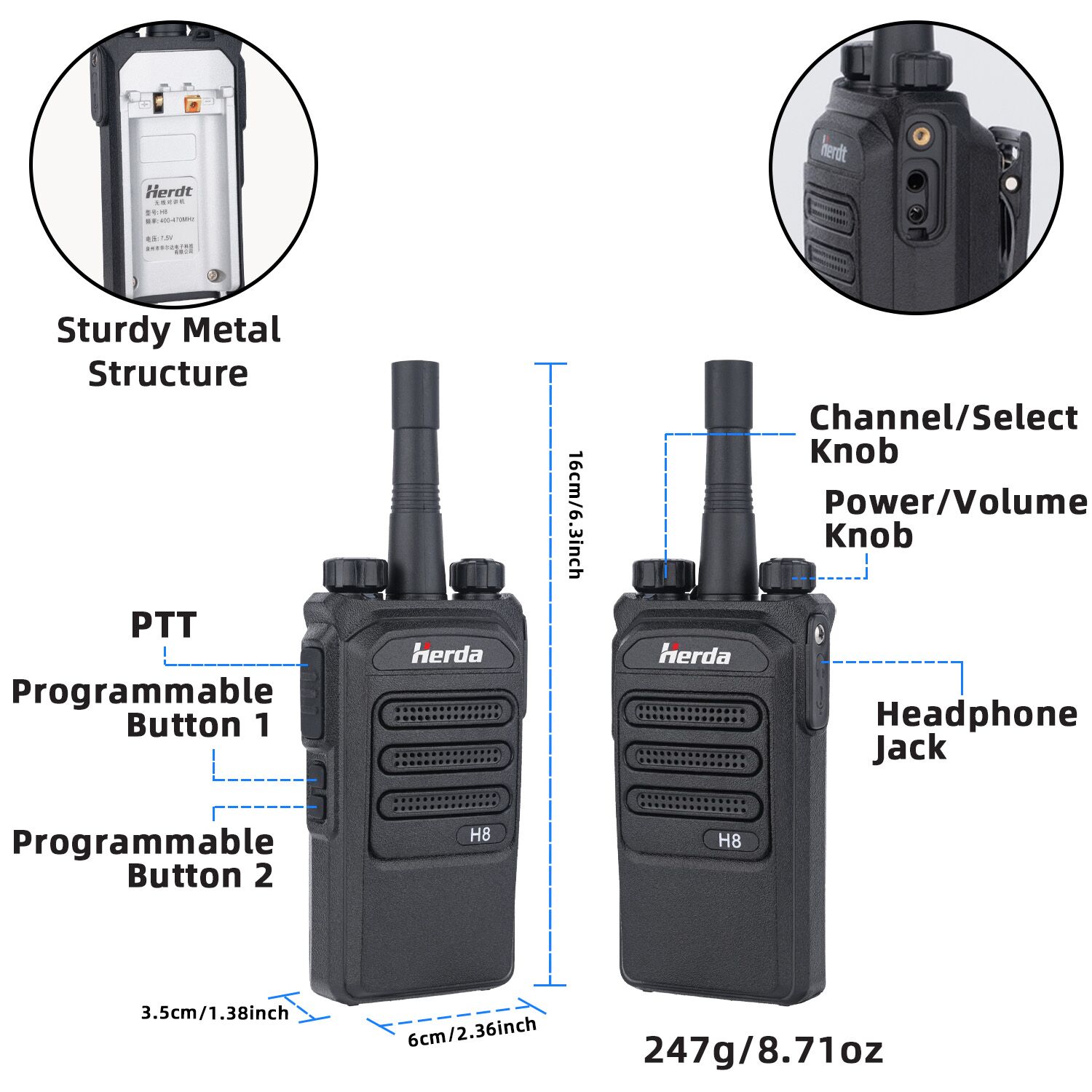

Dimension (L*W*H)
160*60*35 mm (6.3*2.36*1.38 in)
Weight
247g (8.71oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥1W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
10 Watts; 5 Watts
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dB
