H13 10 Watts VHF/UHF Compact Long Range Walkie Talkie

Sturdy walkie-talkies with 10W power, 2200mAh battery, and 40mm speaker. Multiple features and noise reduction ensure crisp communication.

Sturdy walkie-talkies with 10W power, 2200mAh battery, and 40mm speaker. Multiple features and noise reduction ensure crisp communication.

Features

radio antenna icon
10 Watts Long Range Signal
loud & clear audio
40mm High Fidelity Speaker
robust
Sturdy Metal Structure
microphone
Clear Voice Microphone
vox icon
Multi-function
full power or powerful feeling battery icon
2200mAh Battery
Have Questions? Inquire for Company Discounts?

Product Descriptions

All products from Herda include a one-year warranty. For any inquiries or issues, contact our knowledgeable staff for quick support.

h13 radio product description 1

Descriptions

  • Our walkie-talkies come with 16 preset frequencies, are operational right out of the box, and allow for easy reprogramming.
  • Each channel supports 50 CTCSS tones, 105 CDCSS tones, and even non-standard tones.
  • The H13 model features VOX (Voice Operated Exchange), scanning capabilities, low battery warning, and more.
  • On full power, achieve long-range conversations up to 7km (4.35 miles) in unobstructed areas and 1km (0.62 miles) in urban locales. Keep in mind that actual distances can vary due to environmental conditions.
  • The durable battery lasts for up to 20 hours of talk time (5/5/90 Duty Cycle, High TX Power), offers 96 hours of standby, and fully recharges in just 4 hours. Actual usage time may differ depending on how frequently it’s used.
  • Designed for user-friendliness, our walkie-talkies feature a compact, lightweight build and a tough ABS shell.
  • They’re well-suited for various industries including hotels, restaurants, construction, factories, schools, churches, retail outlets, and more.

Main Functions

  • Max 10W High Power Output (Programming software needed)
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set
  • VOX
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode
  • Read/Write Frequency Encryption
  • Voice Notification


h13 radio product description 2
h13 radio product description 3
h13 radio product description 4

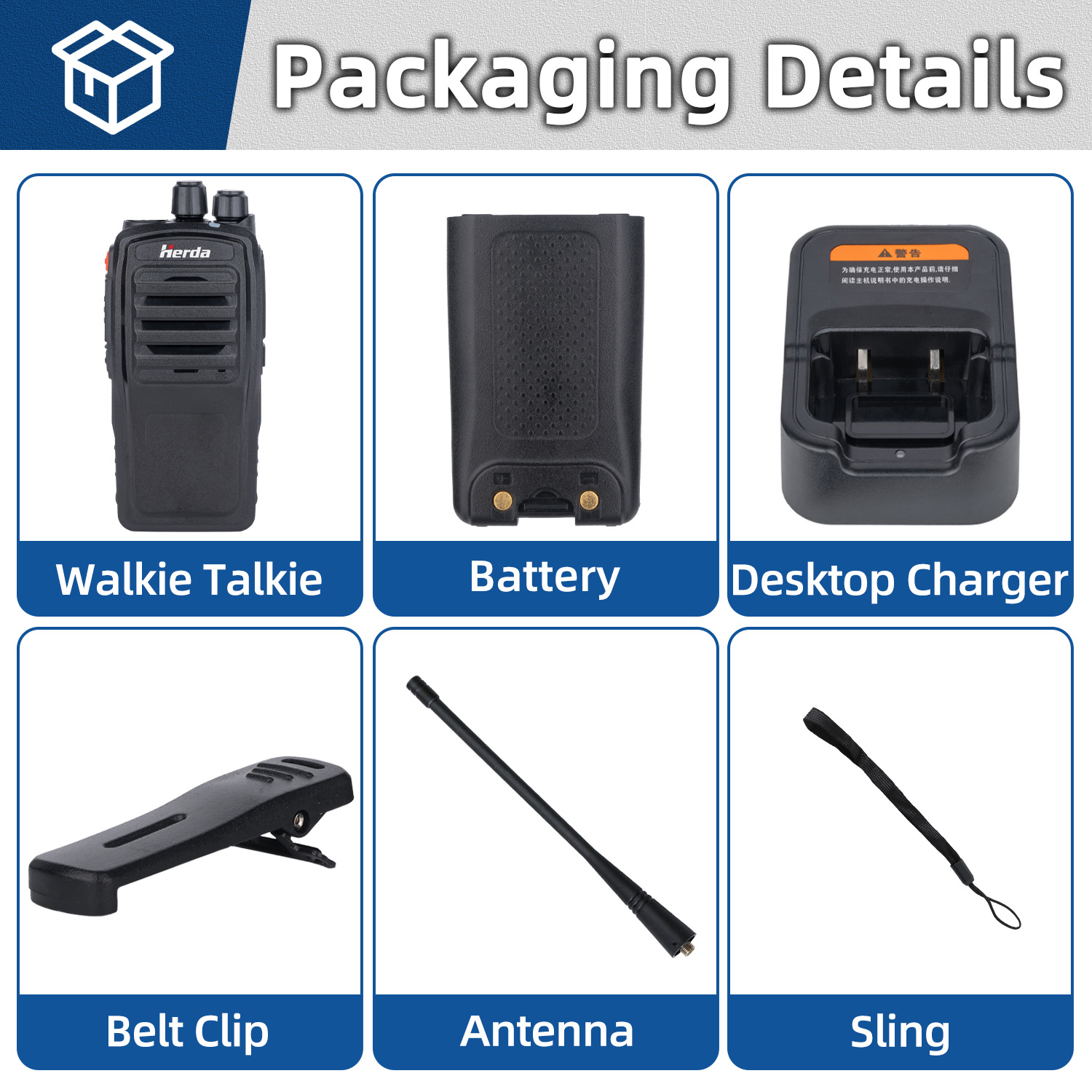

What's Included In Single Product Unit:

  • H13 Walkie Talkie * 1
  • Antenna * 1
  • Battery * 1
  • Charging Stand * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Technical Specifications

General

Frequency Range
UHF: 400-470MHz
VHF: 136-174MHz
Channel Capacity​
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2200mAh
Antenna Impedance
50Ω

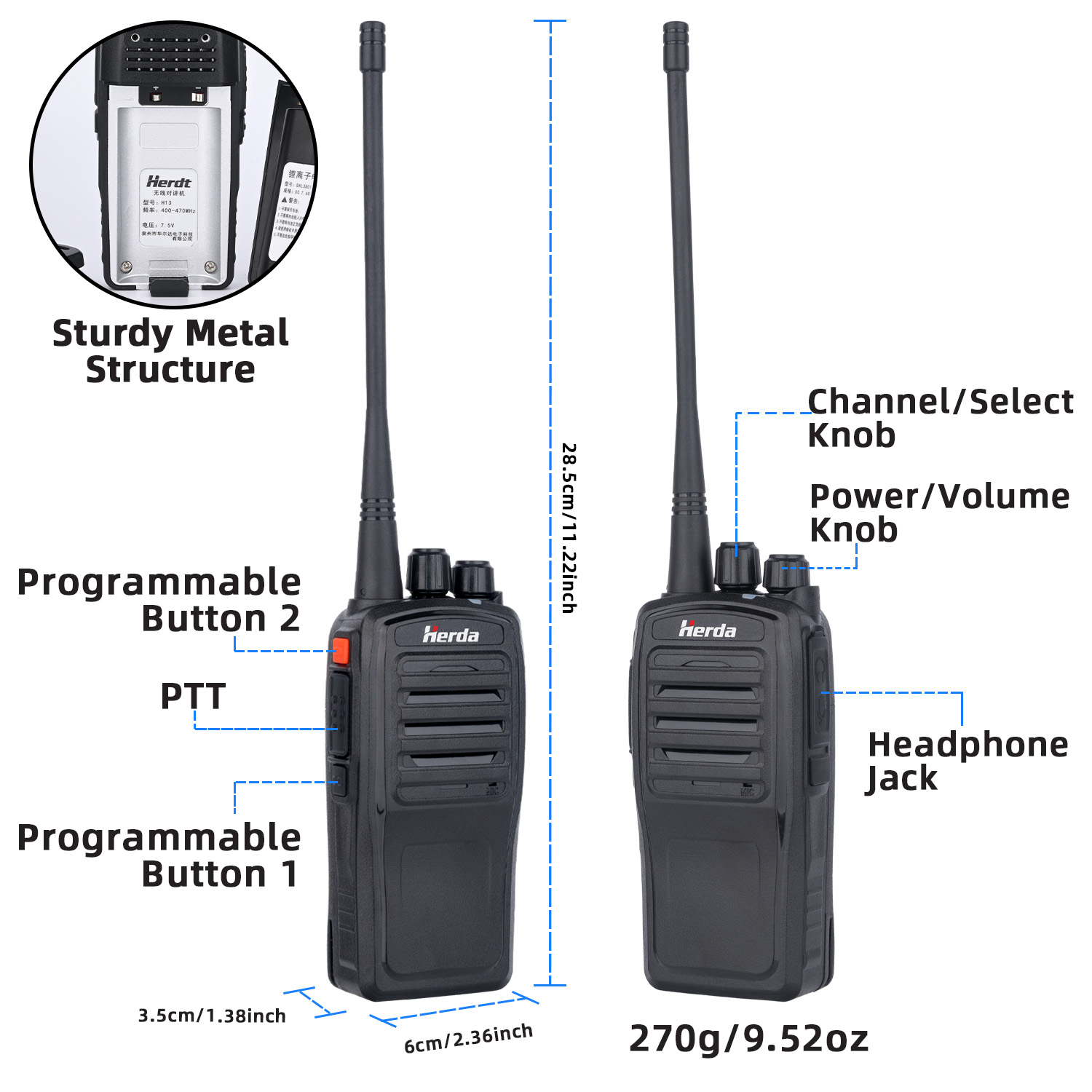

Dimension (L*W*H)
285*60*35 mm (11.22*2.36*1.38 in)
Weight
About 270g (9.52oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
≤60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥0.5W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
10 Watts/5 Watts
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
