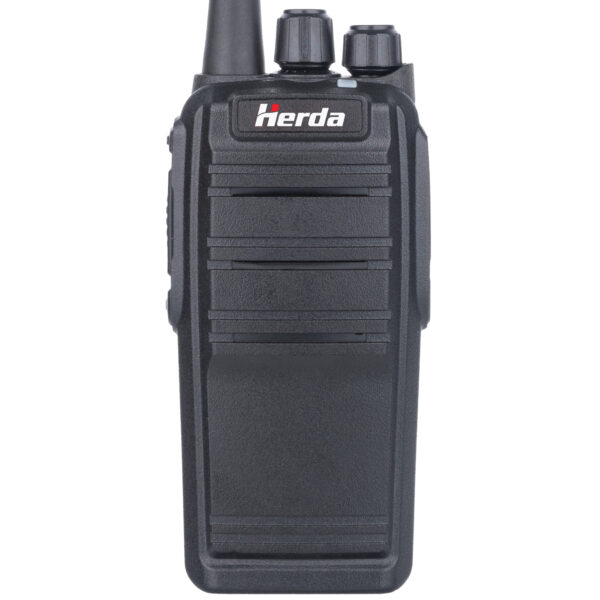

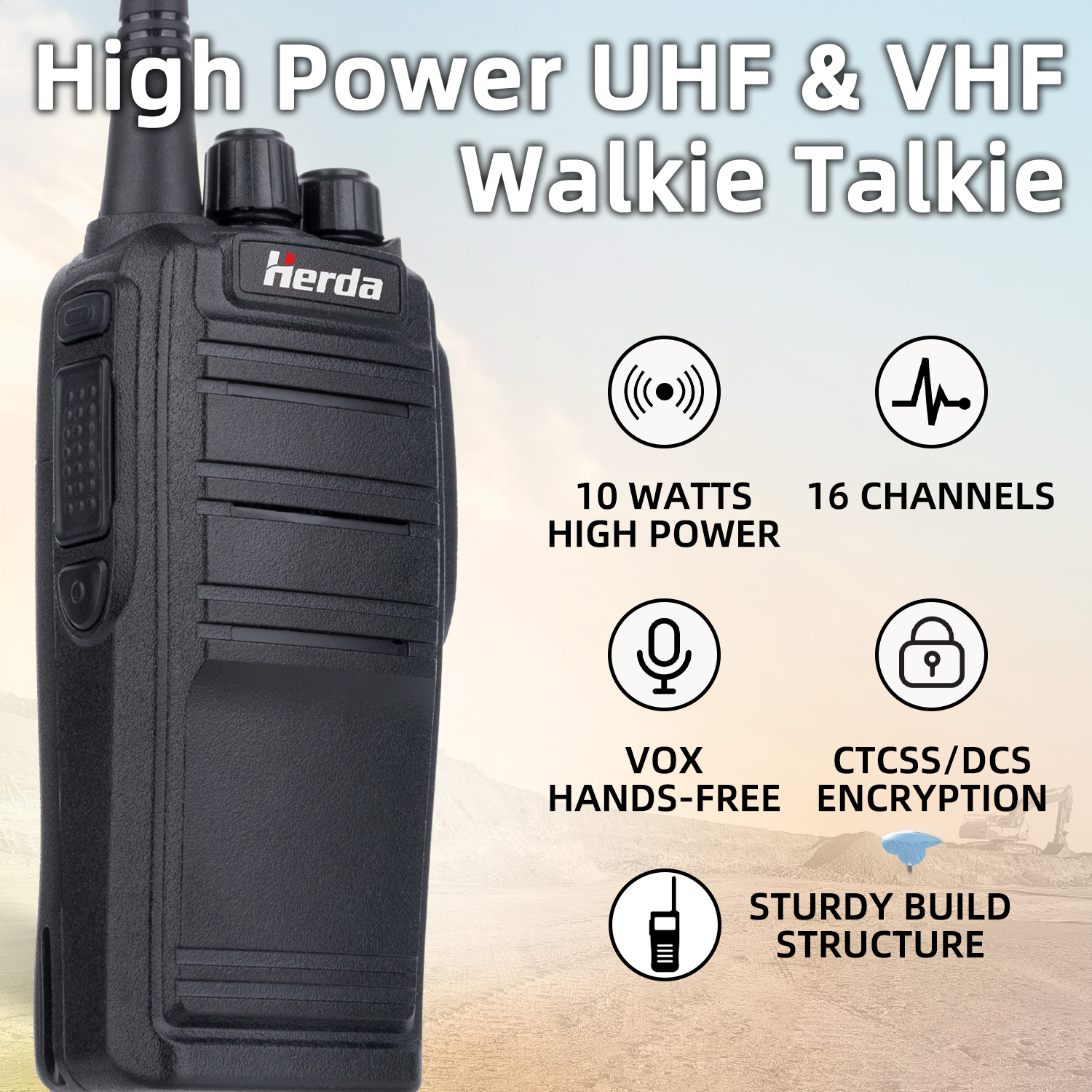

H15 High Power Long Range Walkie Talkie

High-quality walkie-talkies with 10W transmission, long-lasting battery, and noise reduction for clear voice communication.

High-quality walkie-talkies with 10W transmission, long-lasting battery, and noise reduction for clear voice communication.

Features

radio antenna icon
10-watt Tx Power
robust
Durable Metal Main Body
speaker or max volume icon

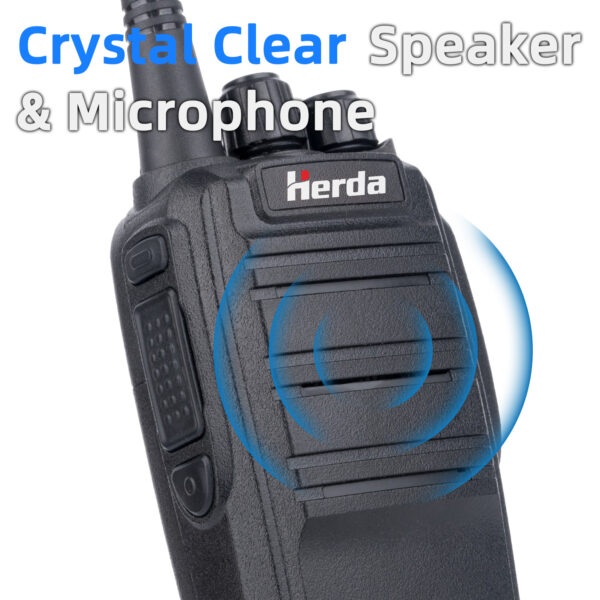

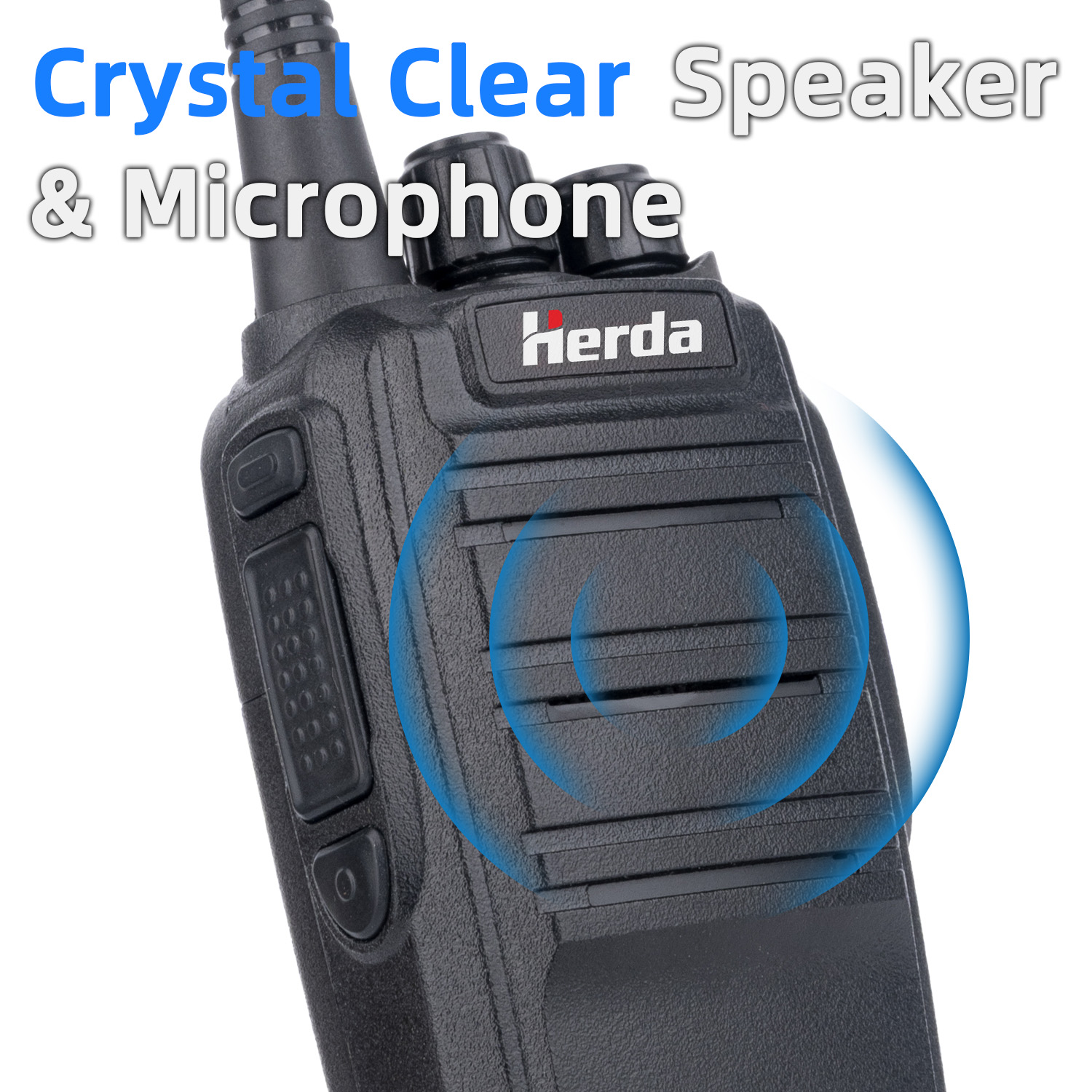

40mm Clear Audio Speaker
microphone
Noise-filtering Microphone
full power or powerful feeling battery icon
2200mAh Extended Battery
vox icon
Versatile Features (VOX, BCL, etc.)
Have Questions? Inquire for Company Discounts?

Product Descriptions

We offer a one-year warranty on all Herda products. For any inquiries or concerns, simply contact our knowledgeable staff, and we’ll resolve them rapidly.

h15 radio product description 1

Descriptions

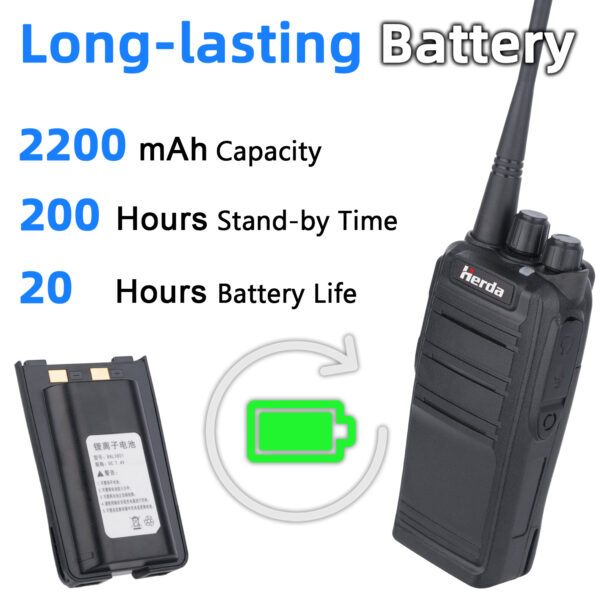

  • Our high-capacity 2200mAh rechargeable Li-ion battery provides up to 20 hours of battery life (5/5/90 Duty Cycle, High TX Power), keeping you connected longer.

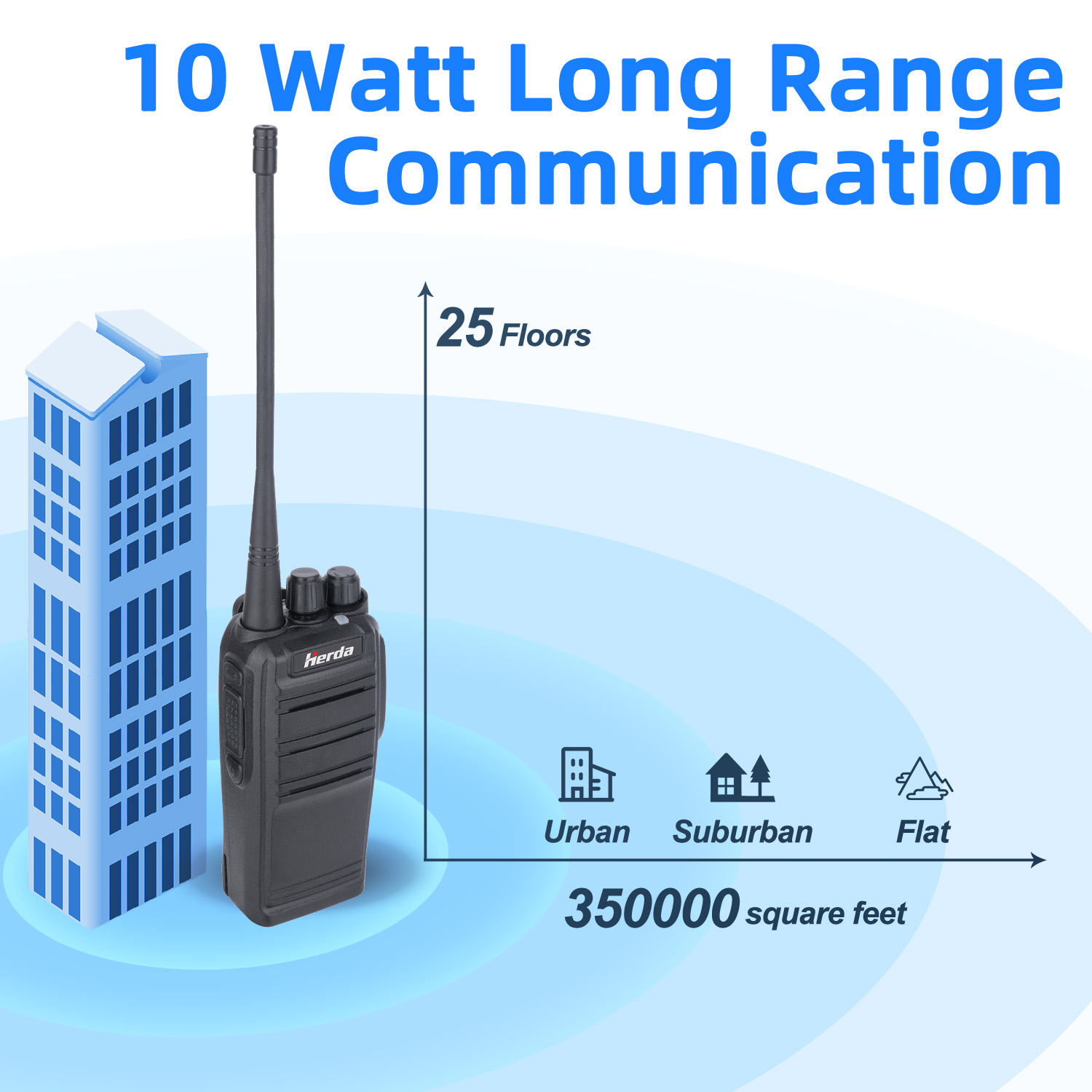

  • Experience long-range communication with maximum power settings, reaching up to 7km (4.35 miles) in open areas without obstructions and 1km (0.62 miles) in city settings. Keep in mind that the actual communication distance is influenced by the environment.
  • Featuring a detachable SMA-F antenna port, you can easily swap antennas based on your transmitting power and frequency requirements, maximizing your communication range.
  • All Herda radios come with pre-set frequencies straight from the factory, ensuring hassle-free use right out of the box. Additionally, programming software is available for future setting adjustments.

Main Functions

  • Max 10W High Power Output (Programming software needed)
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set

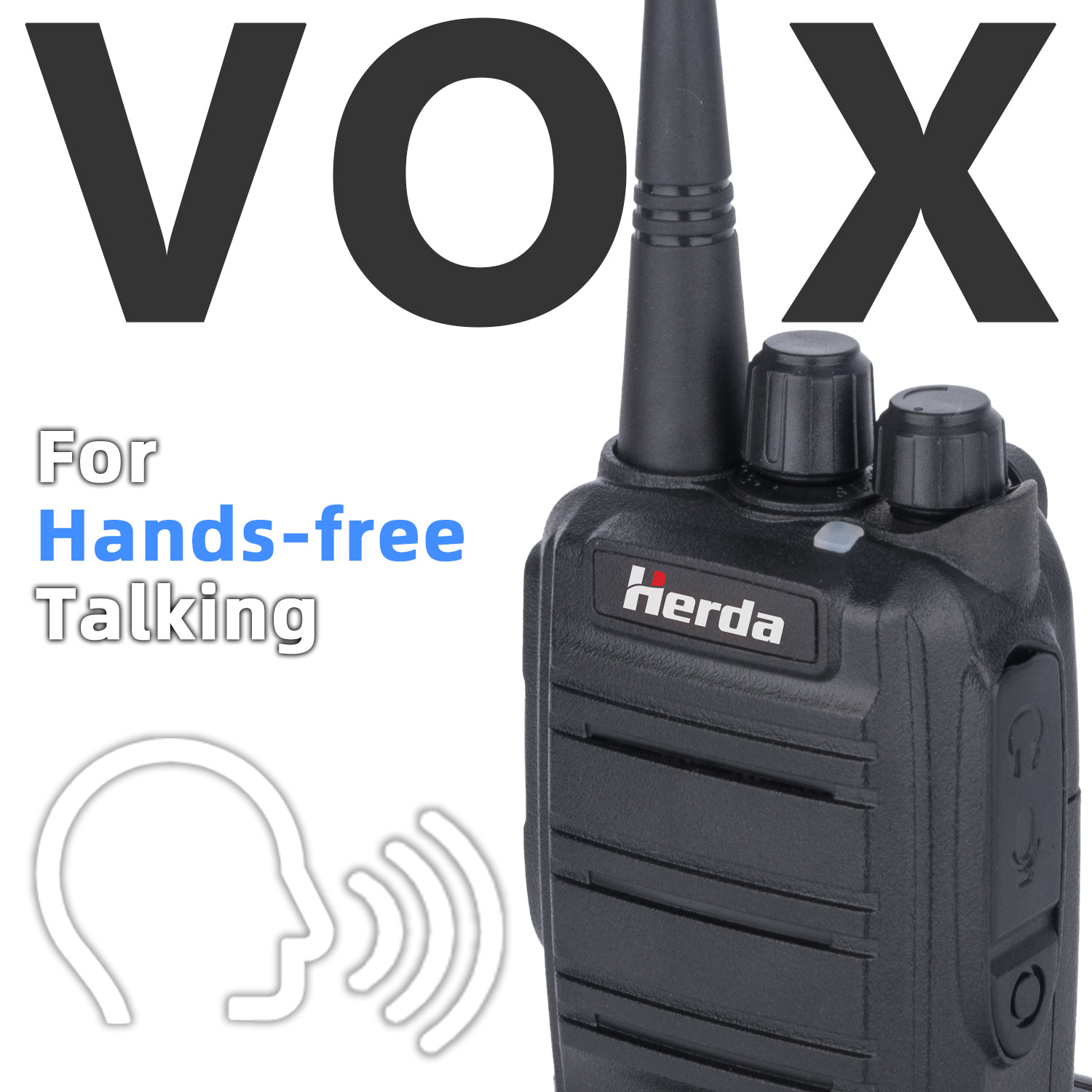

  • VOX
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode

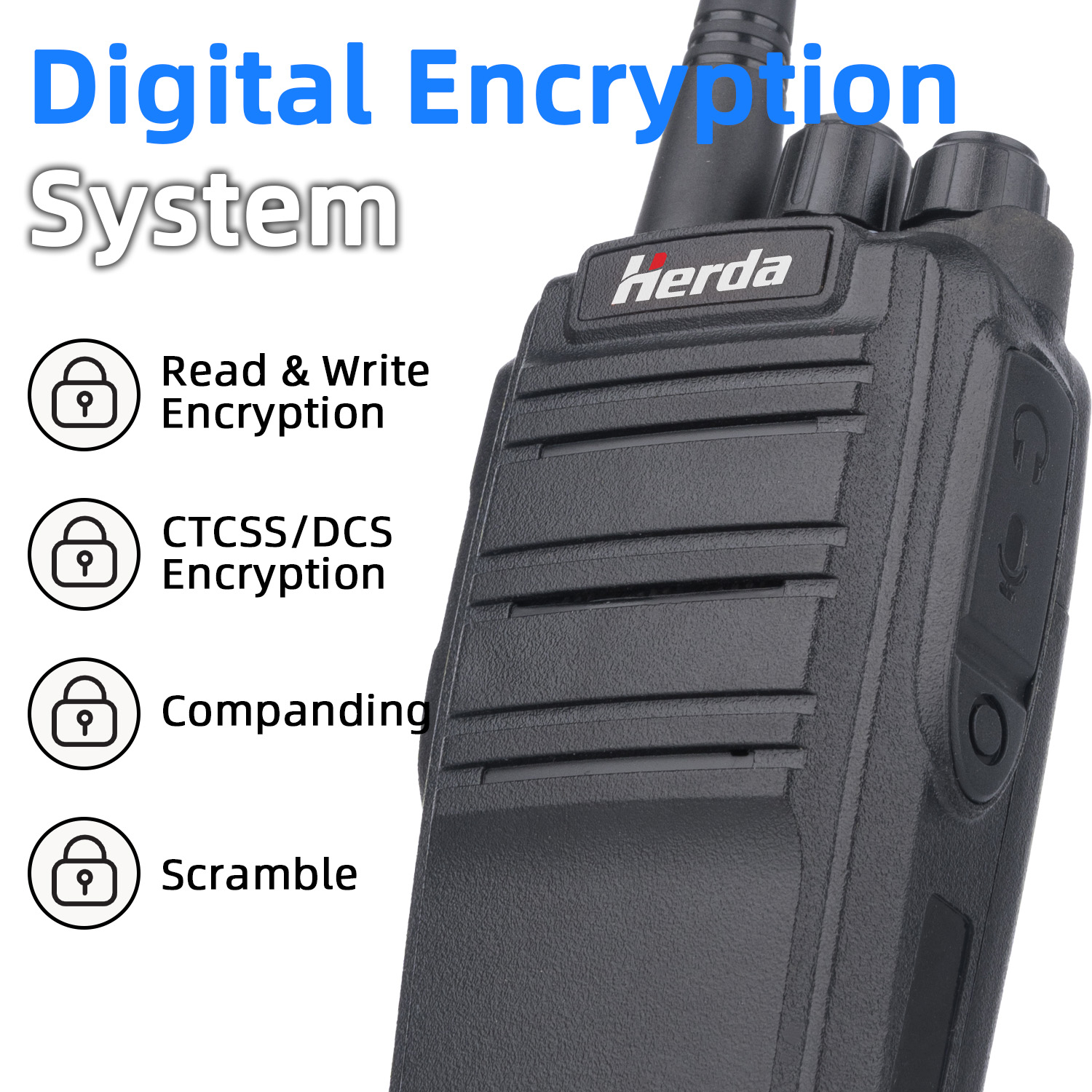

  • Read/Write Frequency Encryption
  • Voice Notification


*This walkie-talkie meets the requirements of GMRS, MURS, and PMR446 specifications.

h15 radio product description 2
h15 radio product description 3
h15 radio product description 4

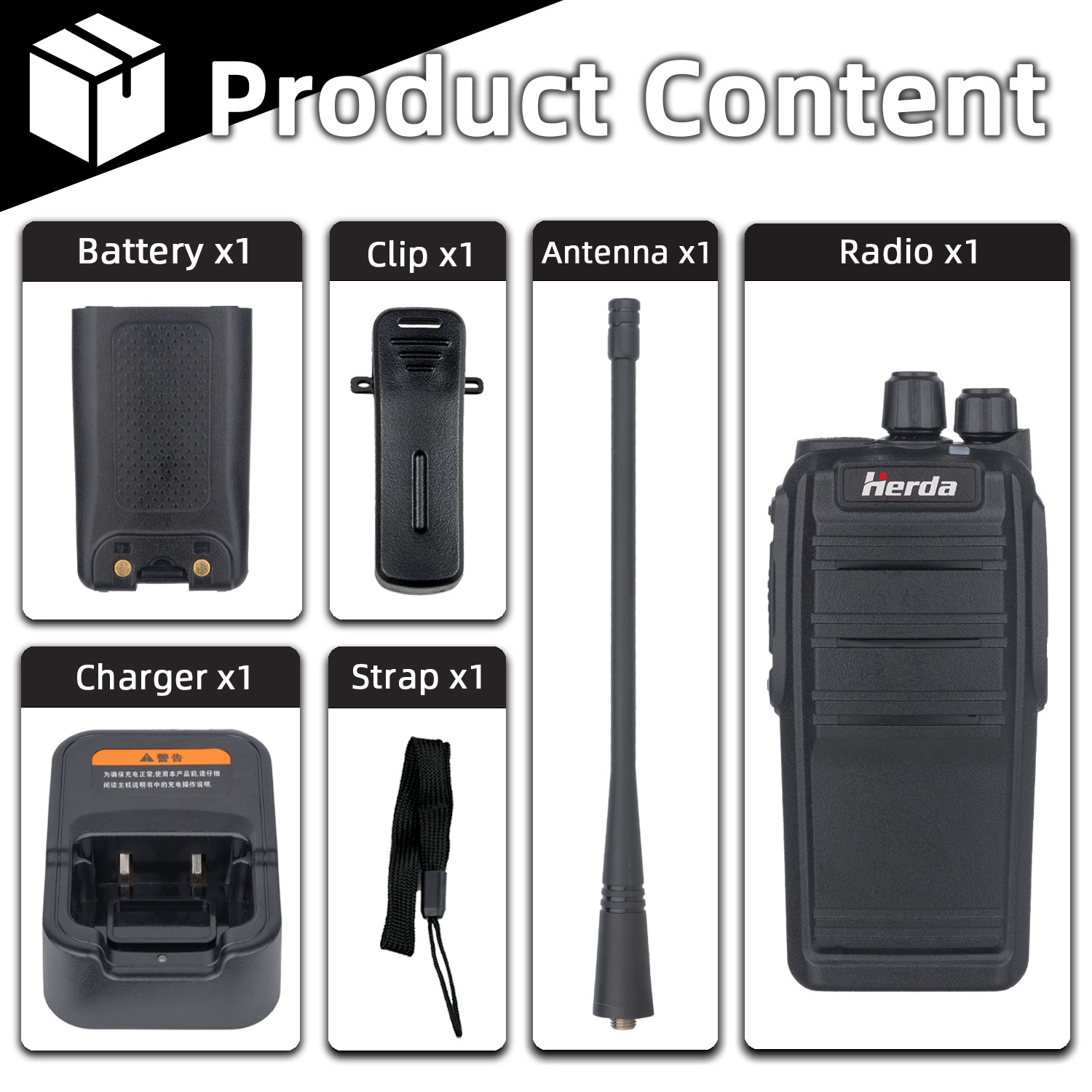

What's Included In Single Product Unit:

  • H15 Walkie Talkie * 1
  • Long Antenna * 1
  • Battery * 1
  • Charging Stand * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Technical Specifications

General

Frequency Range
UHF: 400-470MHz
VHF: 136-174MHz
Channel Capacity​
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2200mAh
Antenna Impedance
50Ω

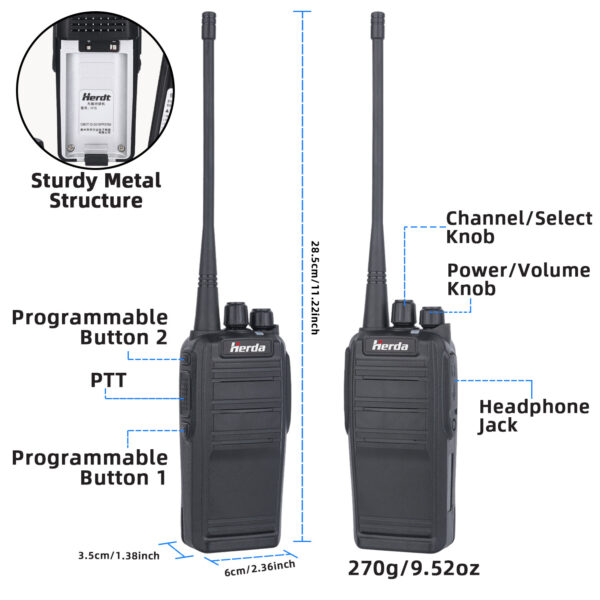

Dimension (L*W*H)
285*60*35 mm (11.22*2.36*1.38 in)
Weight
About 270g (9.52oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
≤60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥0.5W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
10 Watts/5 Watts
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
