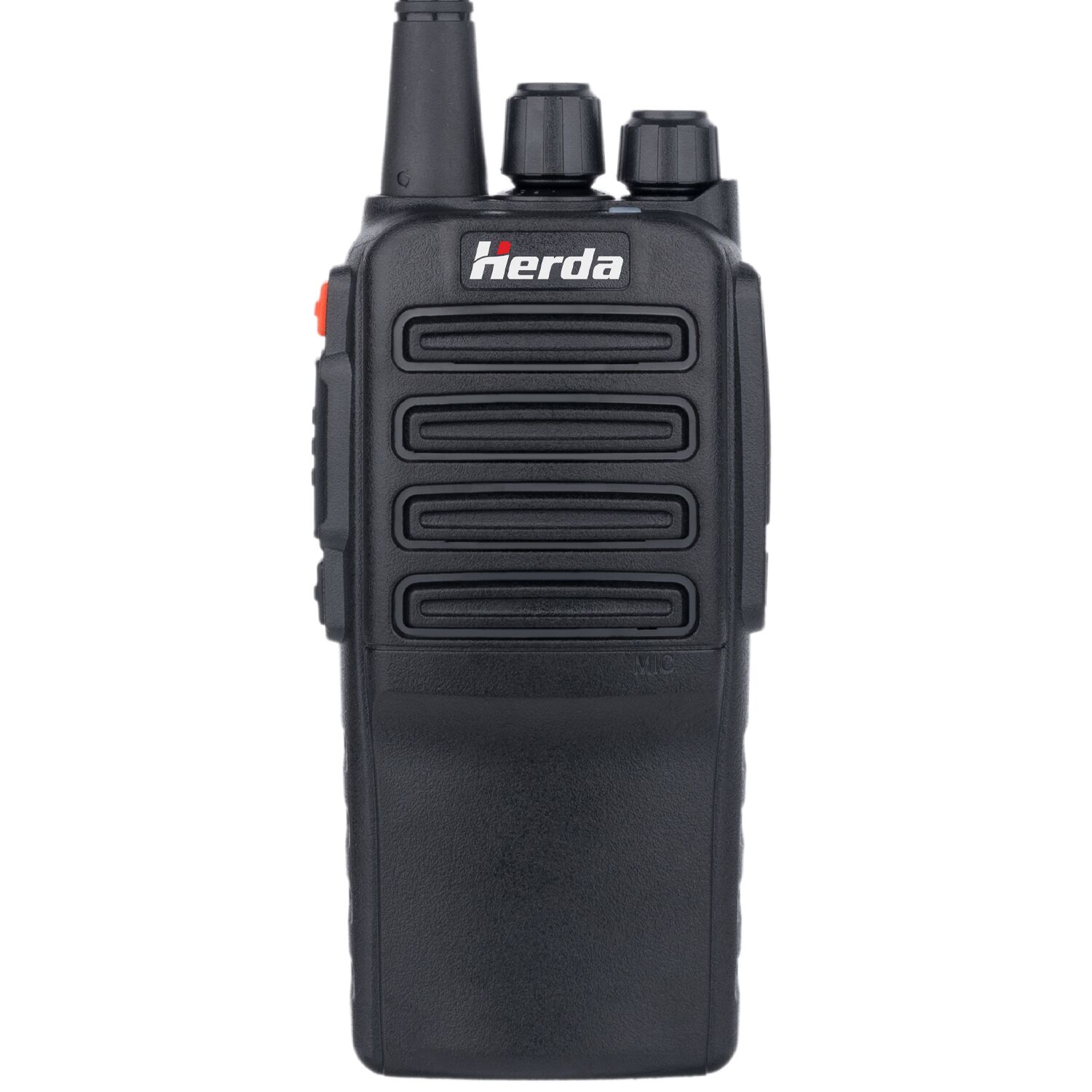

H18 Long Range Walkie Talkie 10W VHF/UHF Radio

Rely on our walkie-talkies for 10W power, durable construction, 2200mAh battery, and noise reduction. Multifunctional and clear audio.

Rely on our walkie-talkies for 10W power, durable construction, 2200mAh battery, and noise reduction. Multifunctional and clear audio.

Features

radio antenna icon
10W Transmitting Power
speaker or max volume icon
40mm Large-size Speaker
microphone
High Definition Microphone
robust
Metal Frame Mainbody
full power or powerful feeling battery icon
2200mAh Battery
vox icon
Multiple Applications
Have Questions? Inquire for Company Discounts?

Product Descriptions

All Herda products come with a 12-month warranty. If you have any questions or problems, our adept team is ready to offer immediate assistance.

h18 radio product description 1

Descriptions

  • Professionals seeking an affordable and dependable critical communication solution need a rugged radio to maintain on-site communication.
  • Our reliable walkie-talkie, built with a robust ABS shell, delivers crystal-clear audio transmission, making it ideal for handling vital communication needs in factories or warehouses.

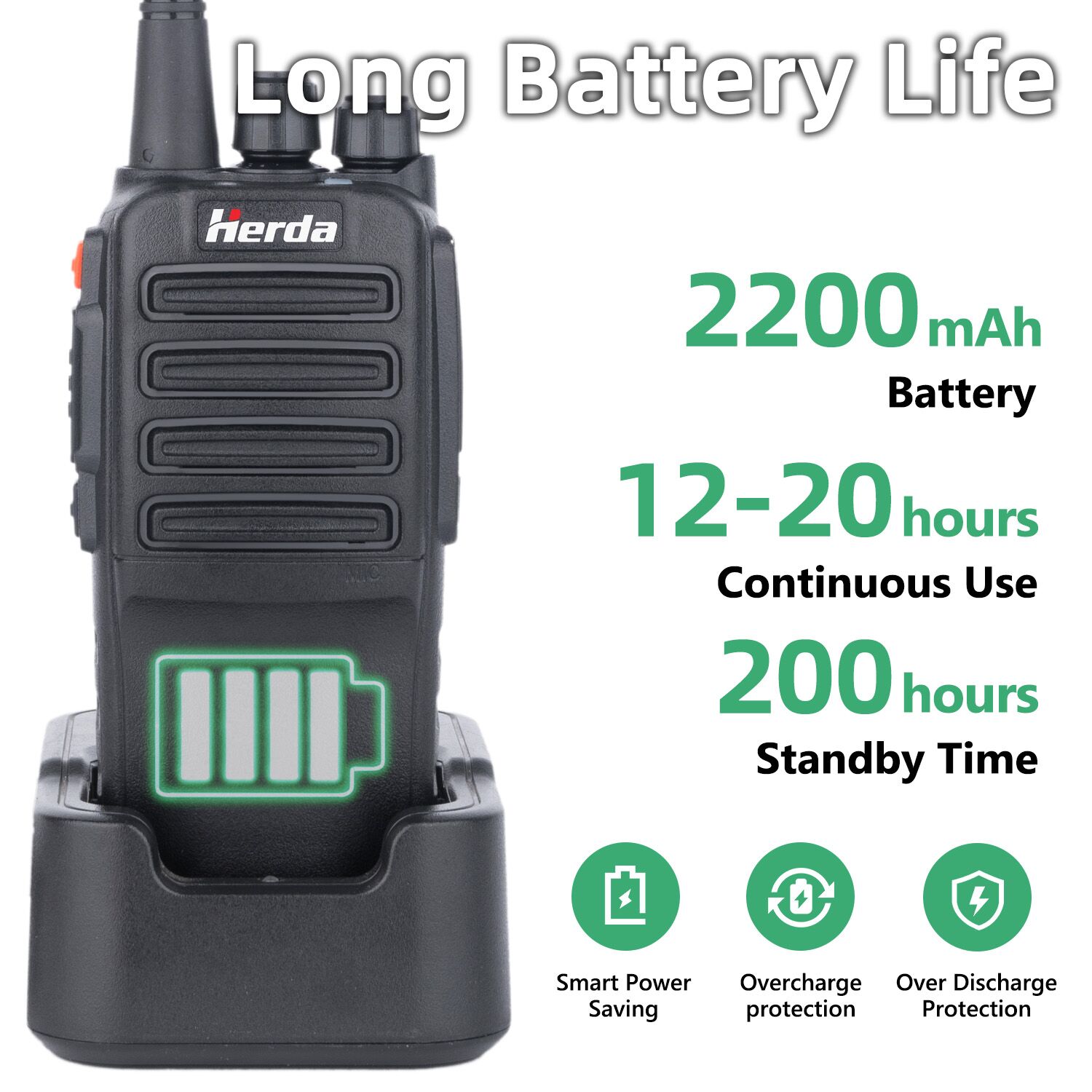

  • Featuring a 2200mAh high-capacity battery, the walkie-talkie lasts up to 20 hours, ensuring all-day performance. To extend the working time even further, additional batteries can be purchased.
  • Our walkie-talkie offers multiple features for optimal use, including VOX, Squelch, Low Battery Alarm, CTCSS/DCS, Power Saving, and more.

Main Functions

  • Max 10W High Power Output (5 Watts available)
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set
  • VOX
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode
  • Read/Write Frequency Encryption
  • Voice Notification


h18 radio product description 2
h18 radio product description 3
h18 radio product description 4

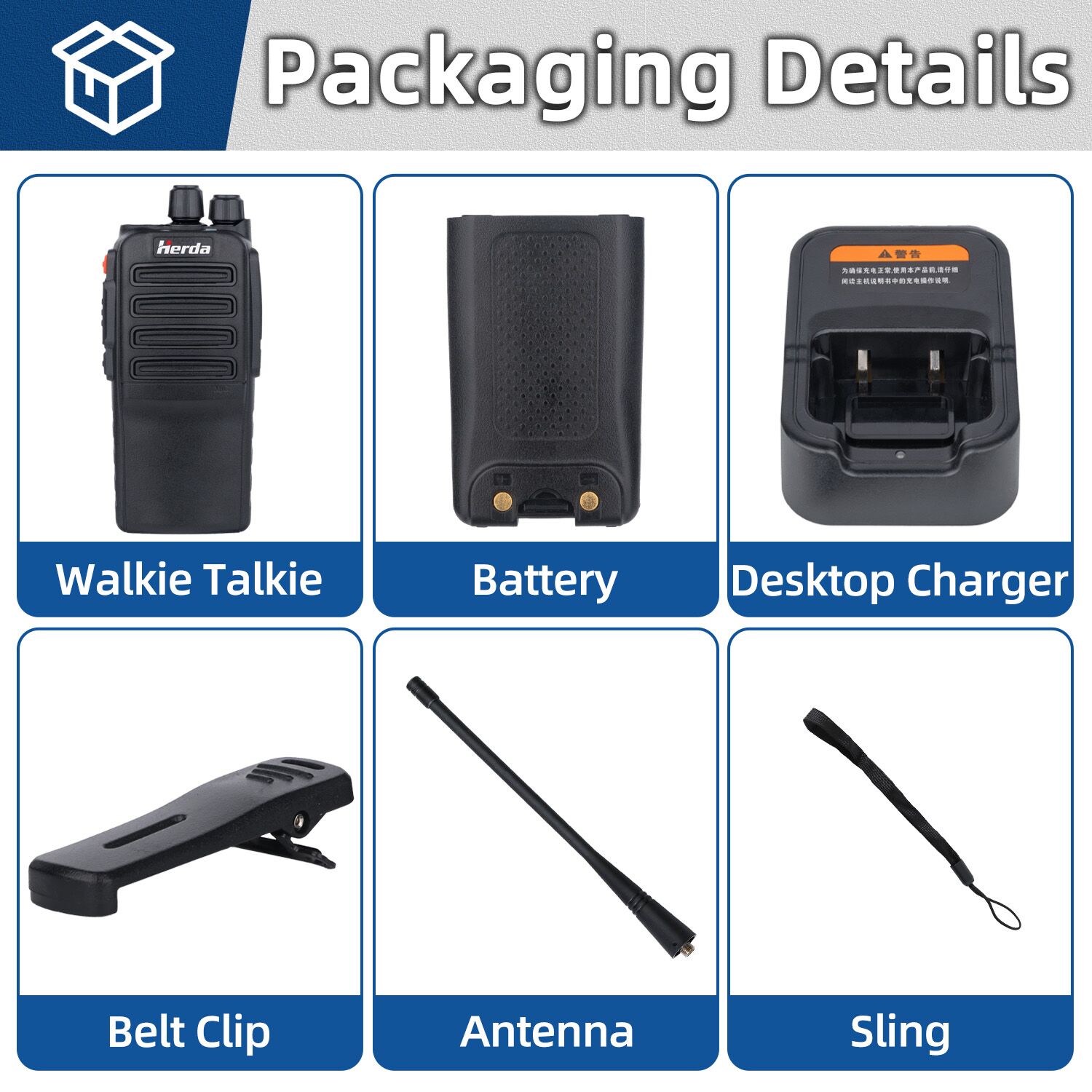

What's Included In Single Product Unit:

  • H18 Walkie Talkie * 1
  • Long Antenna * 1
  • Battery * 1
  • Charging Stand * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Technical Specifications

General

Frequency Range
UHF: 400-470MHz
VHF: 136-174MHz
Channel Capacity
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2200mAh
Antenna Impedance
50Ω

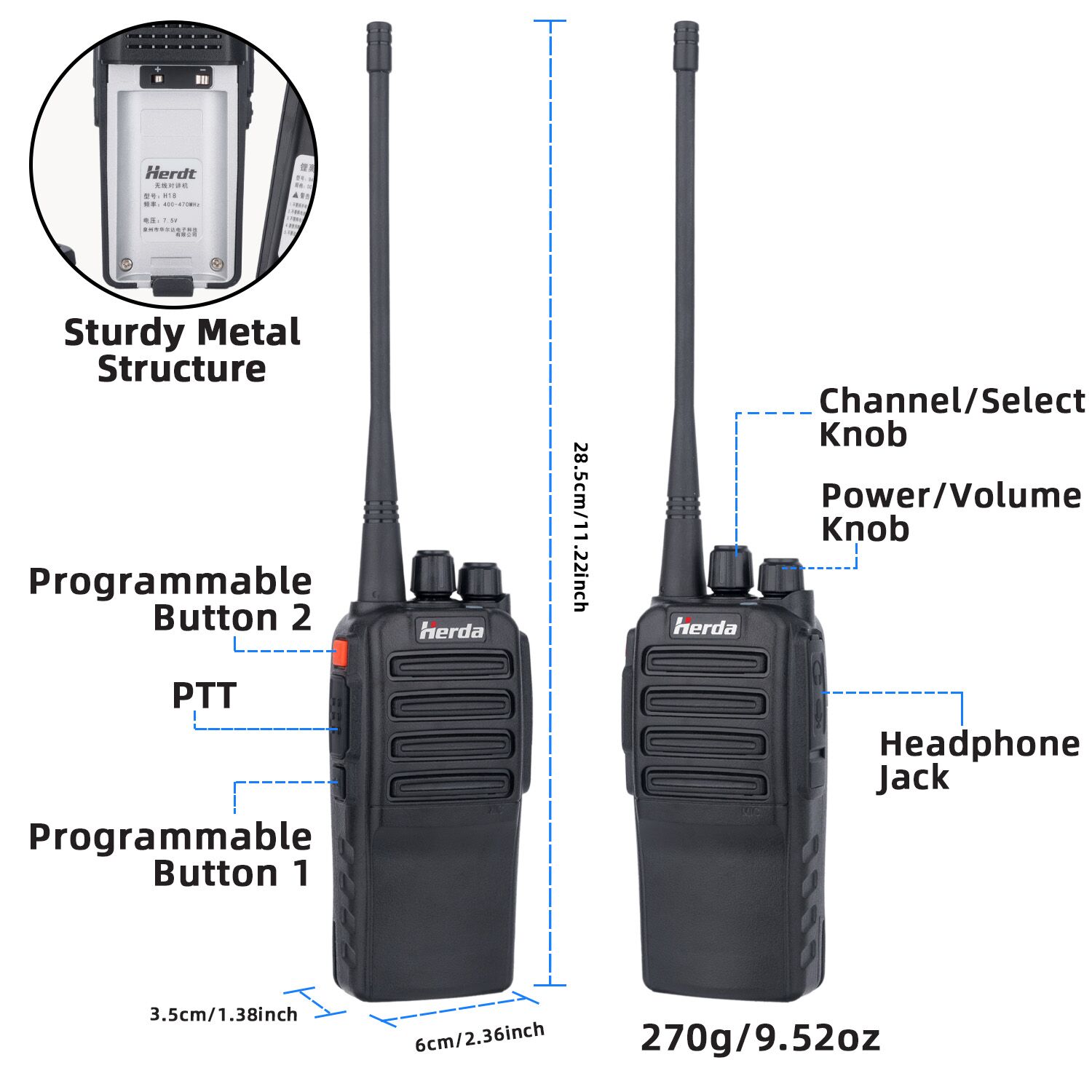

Dimension (L*W*H)
285*60*35 mm (11.22*2.36*1.38 in)
Weight
About 270g (9.52oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
≤60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥0.5W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
10 Watts; 5 Watts
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
