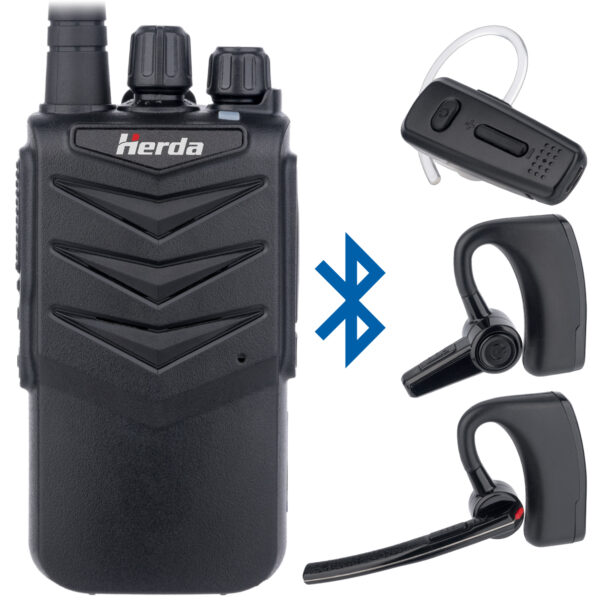

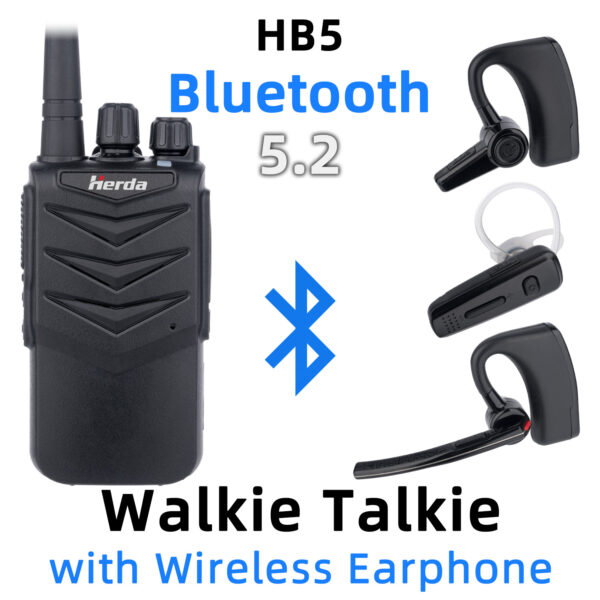

HB5 Built-In Bluetooth Walkie Talkie with Wireless Headset

Enhance your communication with Bluetooth-enabled walkie-talkies. 40hr battery life, compact design, wireless earphone, and multi-functionality. Stay in touch effortlessly!

Enhance your communication with Bluetooth-enabled walkie-talkies. 40hr battery life, compact design, wireless earphone, and multi-functionality. Stay in touch effortlessly!

Features

bt available
Integrated BT 5.2
optional walkie talkie wireless earphones icon
Optional PTT Earphones
compact
Slim & Portable Design
ptt button icon
Versatile Functions
headset listening & noise reduction icon
Clear Audio
Have Questions? Inquire for Company Discounts?

Product Descriptions

Herda provides a 1-year warranty on all items sold. If you have any questions or concerns, contact us, and our experienced team will resolve them immediately.

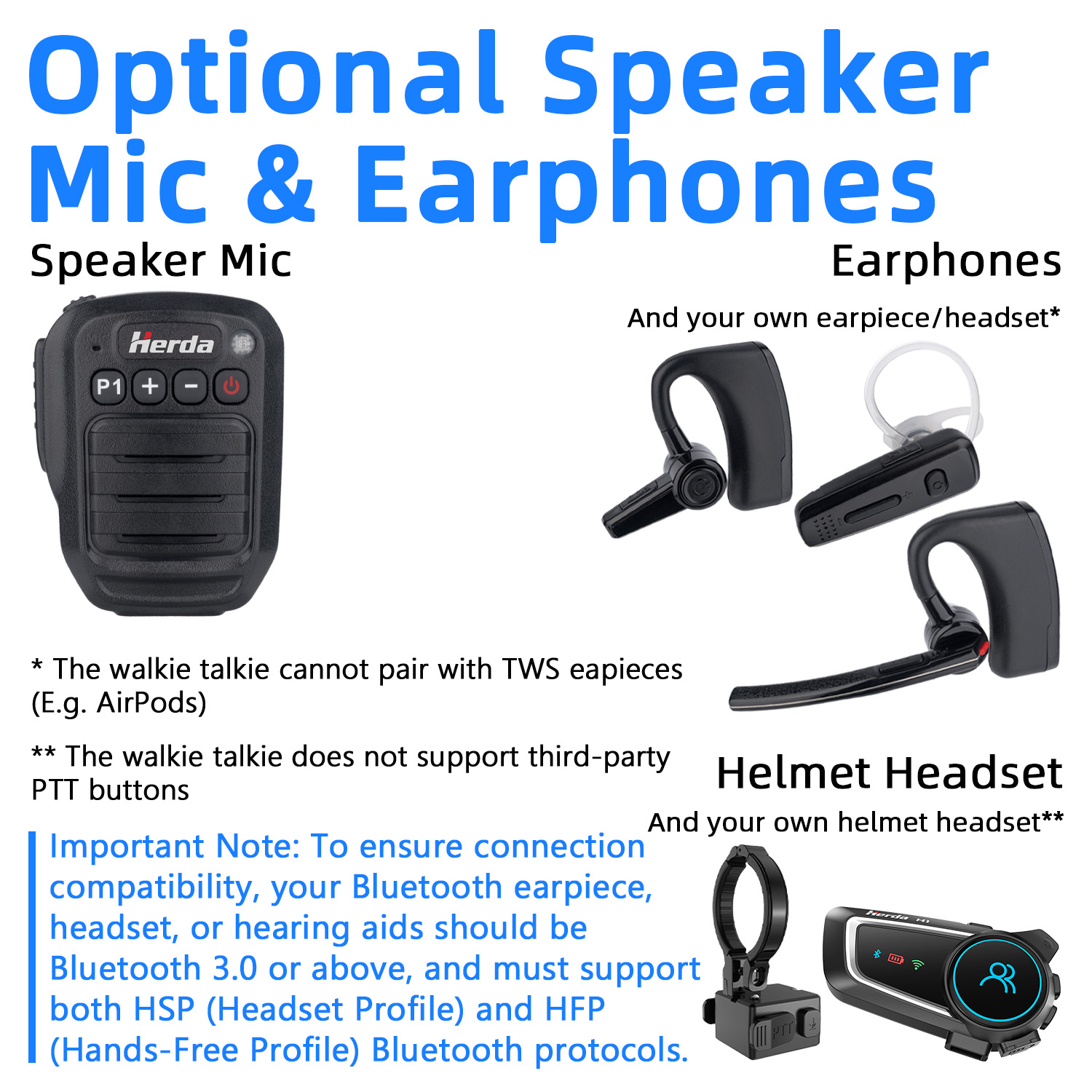

Note 1: To confirm compatibility of connection with your own earpiece, helmet intercom, or hearing aids, your Bluetooth device should be Bluetooth 3.0 or above, and must support both HSP (Headset Profile) and HFP (Hands-free Profile) Bluetooth protocols. Devices using only the A2DP (and AVCRP) profile are not supported. Please refer to your device manufacturer’s specifications to confirm profile support.

hb5 bluetooth walkie talkie product description 1

Descriptions

  • Our walkie-talkie offers a portable, lightweight design for convenient communication and control.
  • The enhanced high-gain antenna enables stable, long-distance transmission.

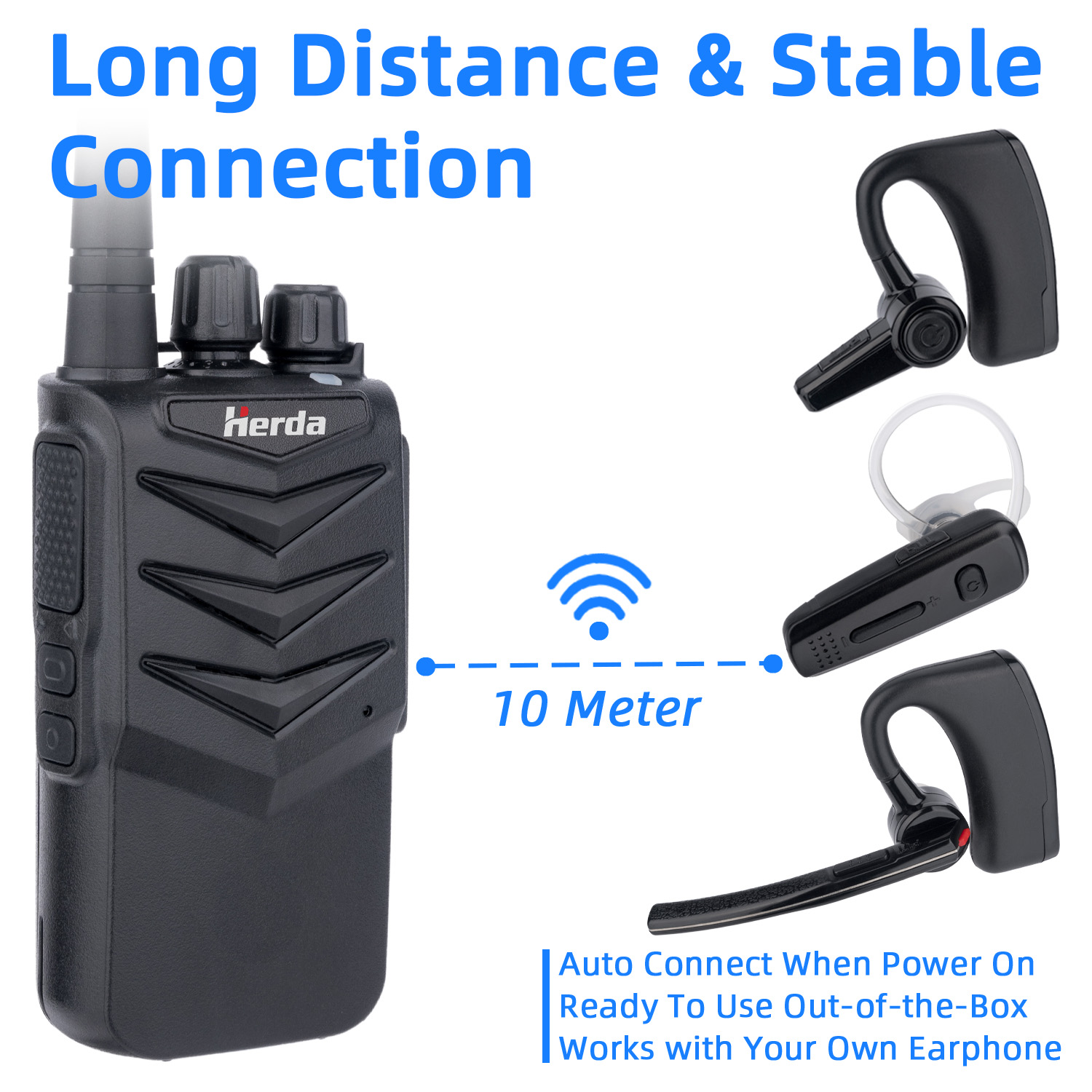

  • With the integrated Bluetooth 5.2 module, the device connects effortlessly to wireless earphones or handheld mics.
  • We will pair the earphones (optional) you choose while manufacturing so you can use them immediately.
  • Multiple built-in functions like BCL, DTMF, and TOT facilitate effective communication.
  • The noise-suppressing mic, large 35mm speaker, and superior receiver guarantee clear voice quality in noisy workspaces.

Main Functions

  • Built-in Bluetooth 5.2 module

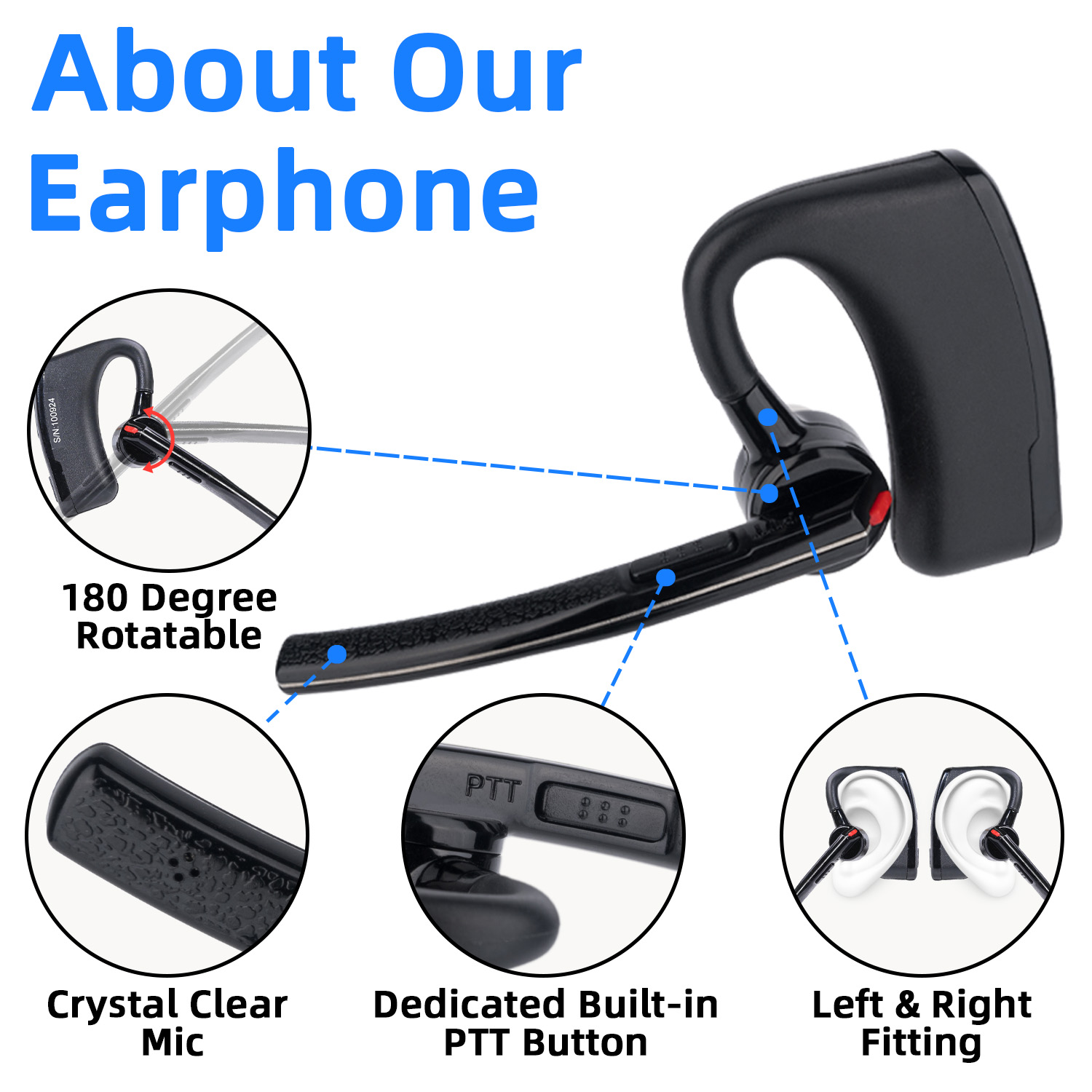

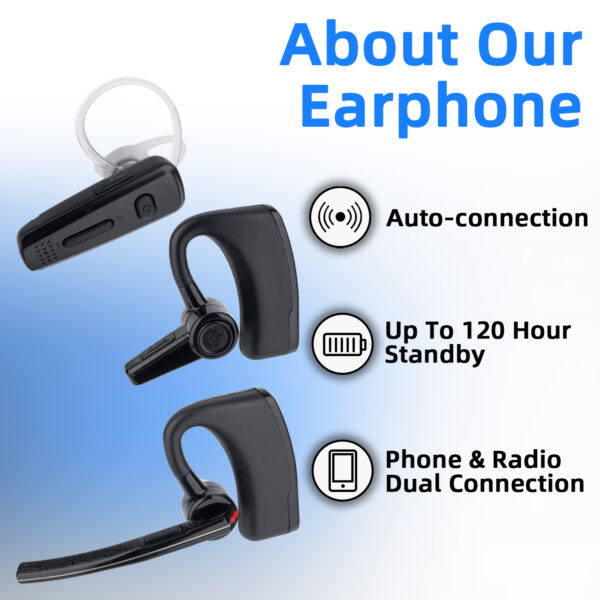

  • Wireless Earphone (Optional)
  • Max 2W High Power Output, 0.5W Optional (Programming software needed)
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode
  • Read/Write Frequency Encryption
  • Voice Notification


*The walkie-talkie is designed following FRS and PMR446 standards for reliable audio quality.

hb5 bluetooth walkie talkie product description 3
hb5 bluetooth walkie talkie product description 4
hb5 bluetooth radio product description 2
hb5 bluetooth walkie talkie product description 5

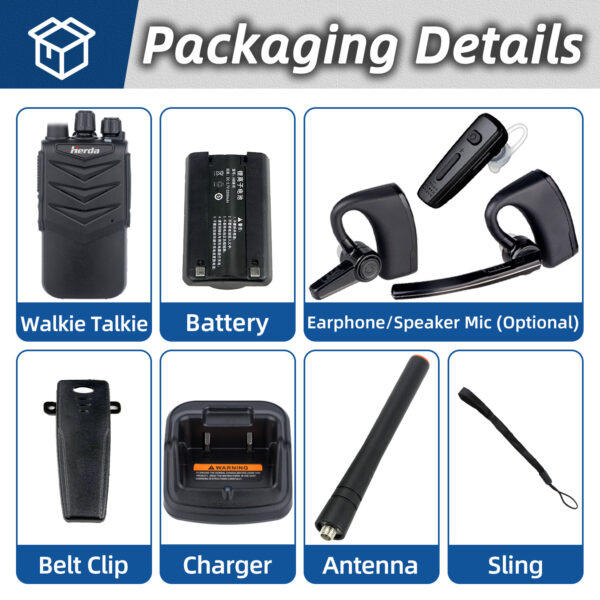

What's Included In Single Product Unit:

  • HB5 Walkie Talkie * 1
  • Antenna * 1
  • Wireless Earphone * 1 (Optional)
  • Battery * 1
  • Charging Stand * 1
  • Charging Cable * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Technical Specifications

General

Frequency Range
UHF: 400-470MHz
Channel Capacity​
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 40 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2200mAh
Antenna Impedance
50Ω

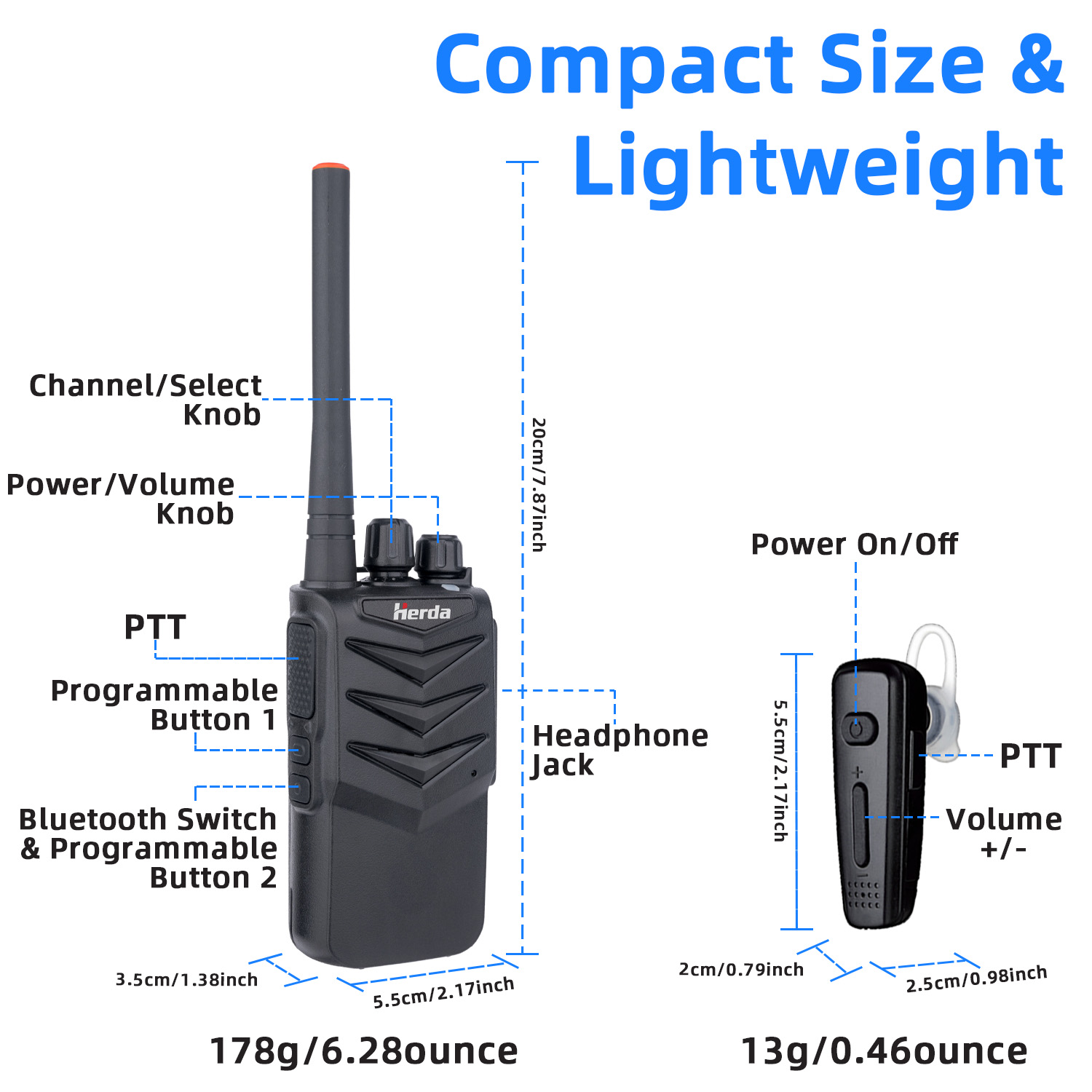

Dimension (L*W*H)
200*55*35 mm (7.87*2.17*1.38 in)
Weight
About 178g (6.28oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
≤60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥0.5W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
2 Watts; 0.5 Watt
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
