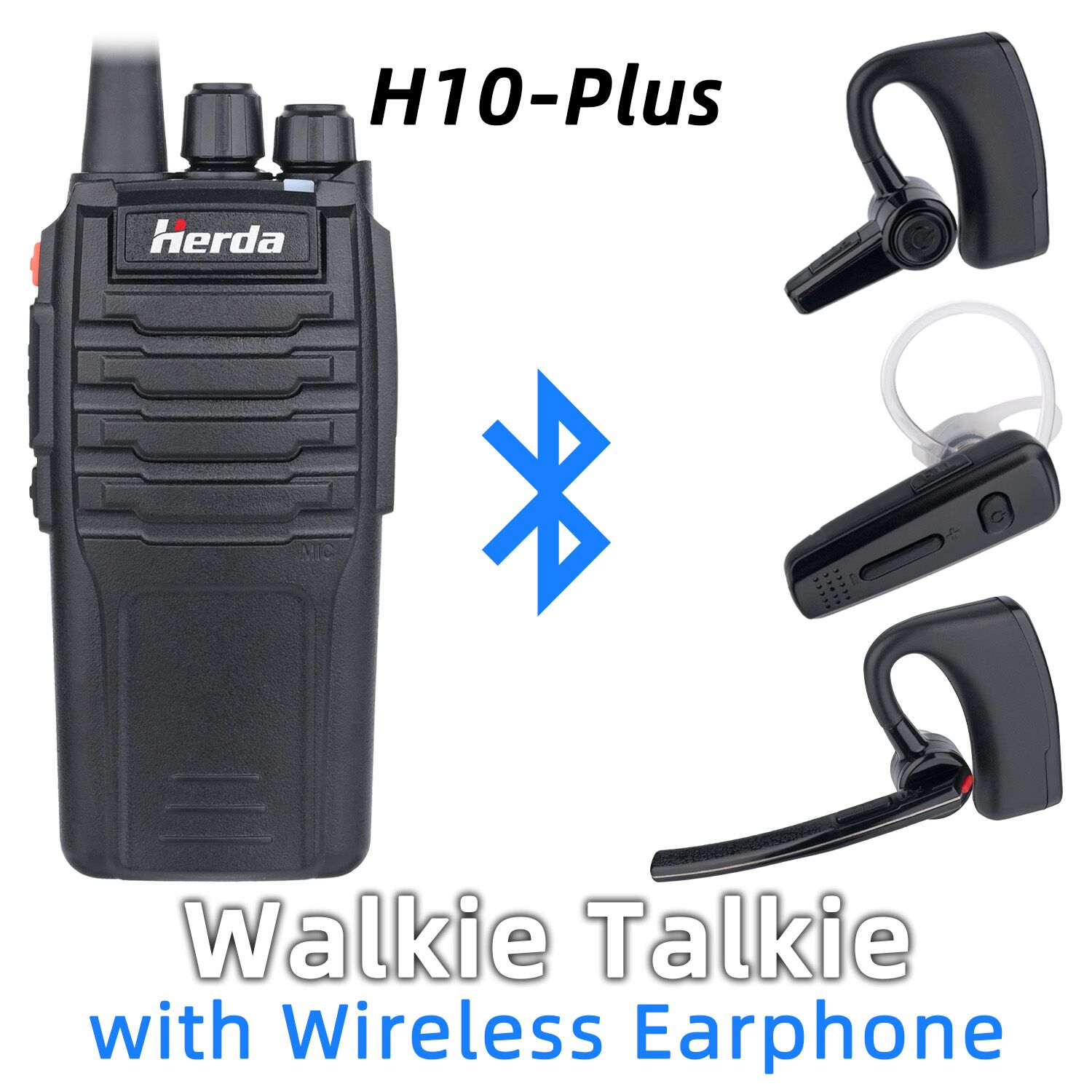

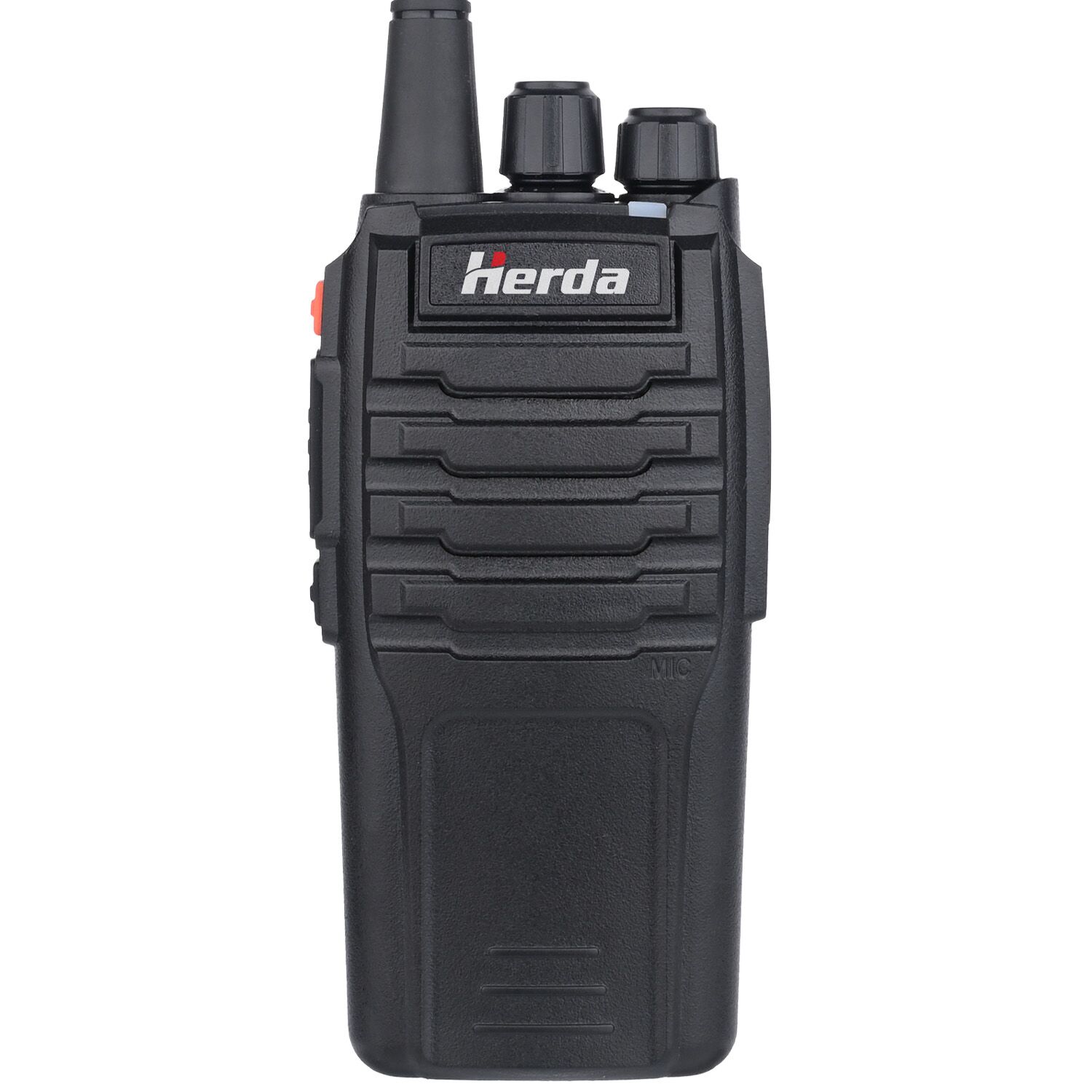

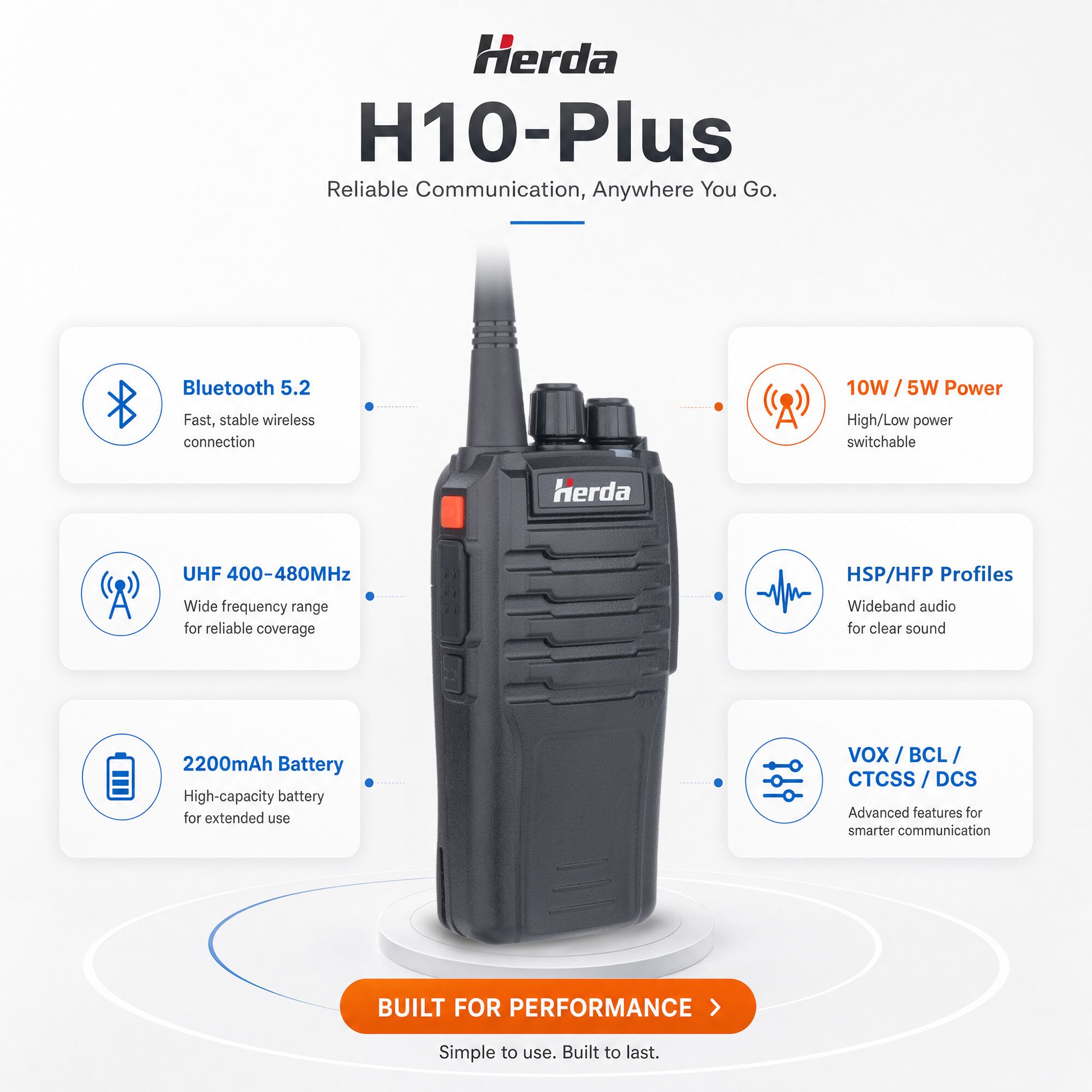

H10-Plus 10 Watts UHF Bluetooth Walkie Talkie

Robust 10W walkie-talkies: Bluetooth 5.2, multifunction & extended battery life for seamless talk.

Robust 10W walkie-talkies: Bluetooth 5.2, multifunction & extended battery life for seamless talk.

Features

bt available
Equipped Bluetooth 5.2
radio antenna icon
10W Transmission Strength
robust

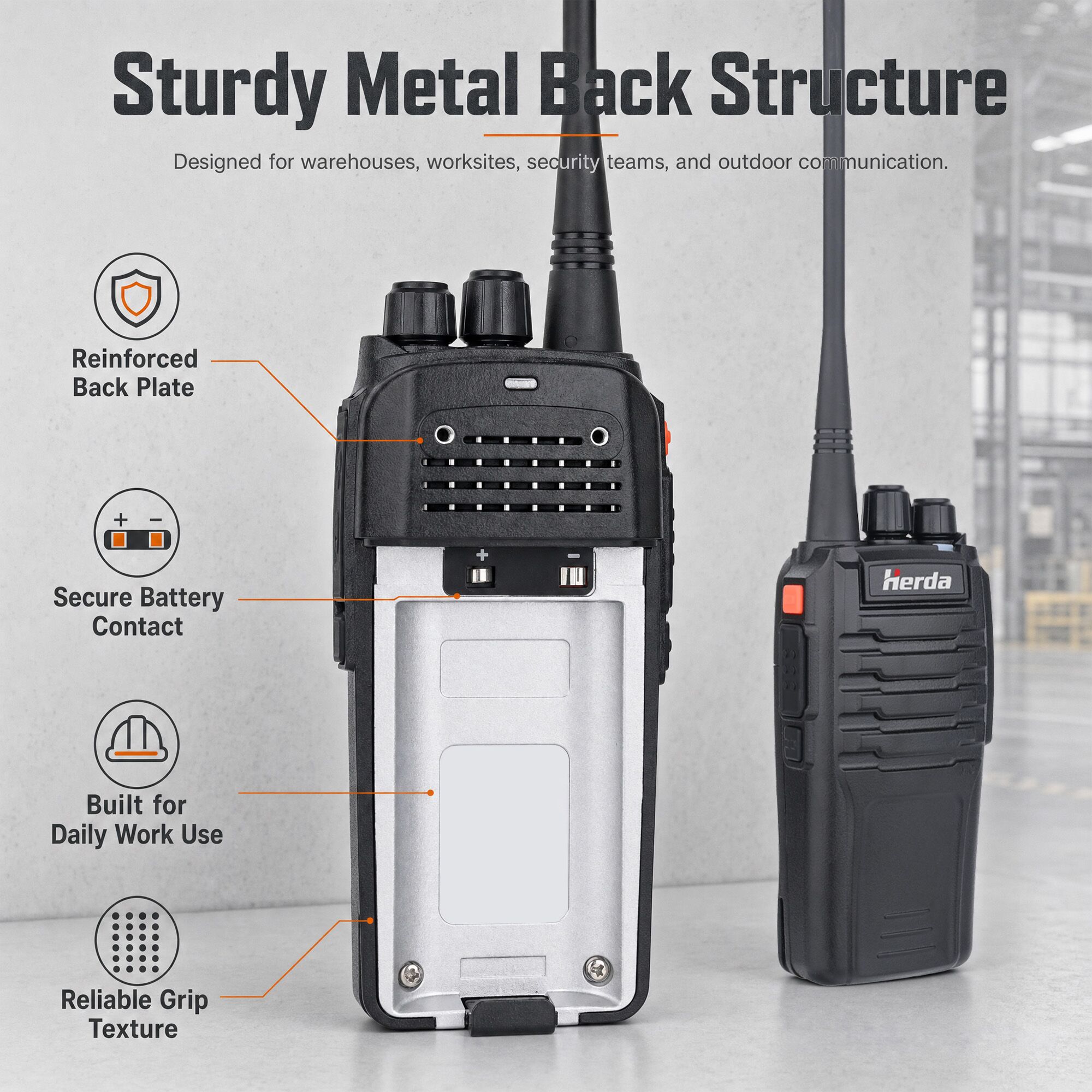

Sturdy Metal Construction
large battery
High-capacity Battery
speaker or max volume icon
Large Speaker Caliber
vox icon
Multiple Functions (VOX, BCL, etc.)
Ask about this product or Bulk Pricing

Product Description

Herda provides a one-year warranty on all items we sell, so please don’t hesitate to get in touch with us if you have any questions or issues, and our skilled team will promptly address them.

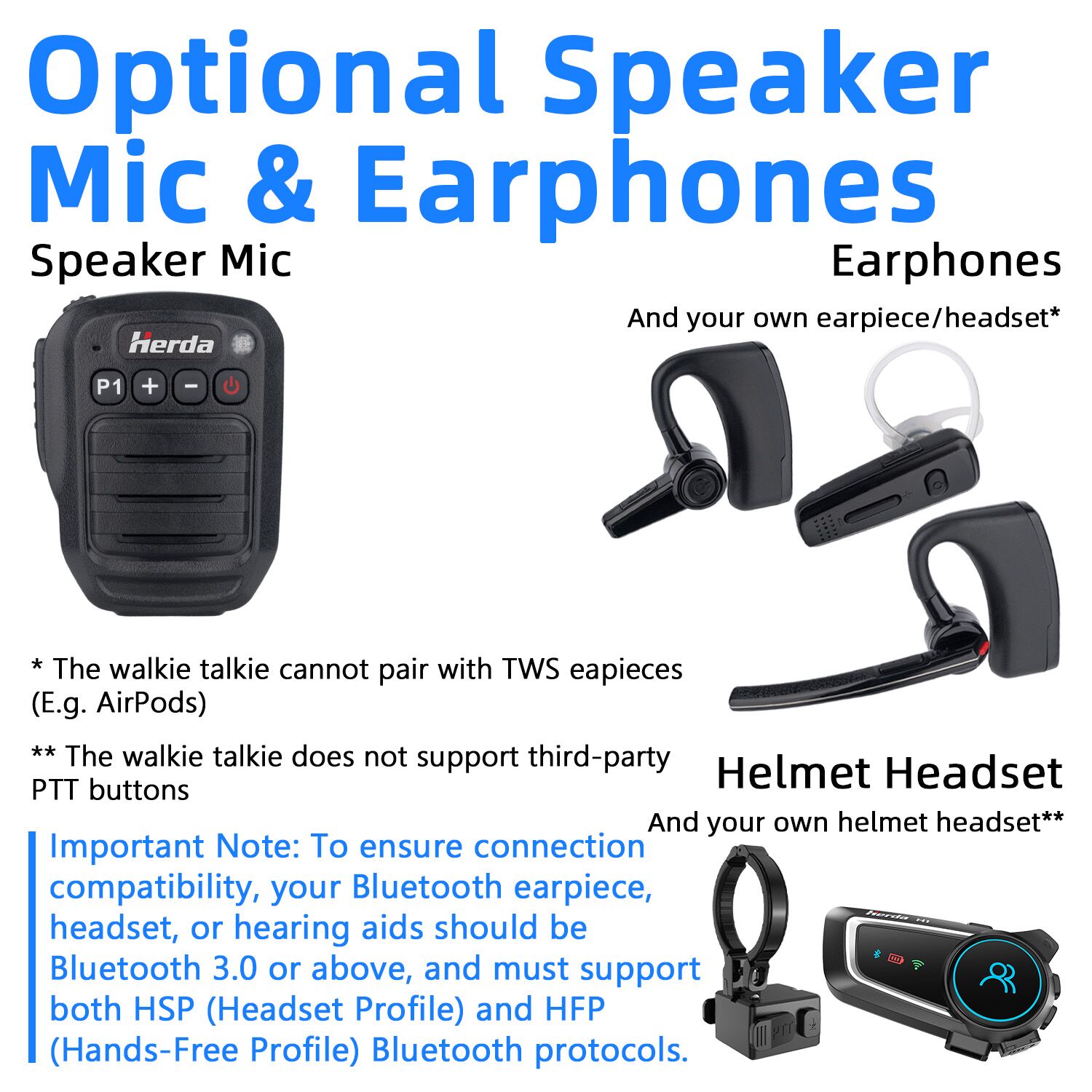

Note 1: To confirm compatibility of connection with your own earpiece, helmet intercom, or hearing aids, your Bluetooth device should be Bluetooth 3.0 or above, and must support both HSP (Headset Profile) and HFP (Hands-free Profile) Bluetooth protocols. Devices using only the A2DP (and AVCRP) profile are not supported. Please refer to your device manufacturer’s specifications to confirm profile support.

h10 plus product description 1

Descriptions

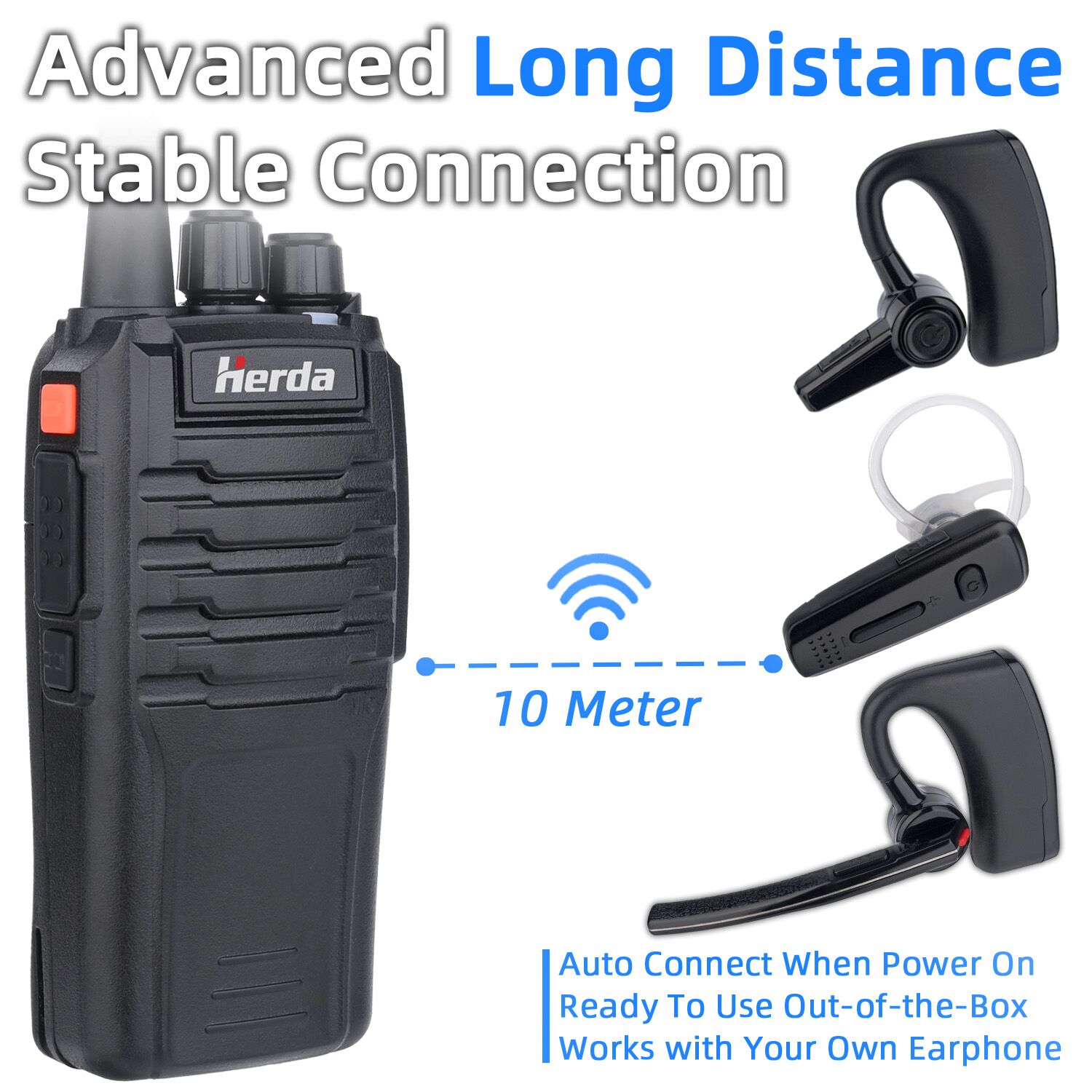

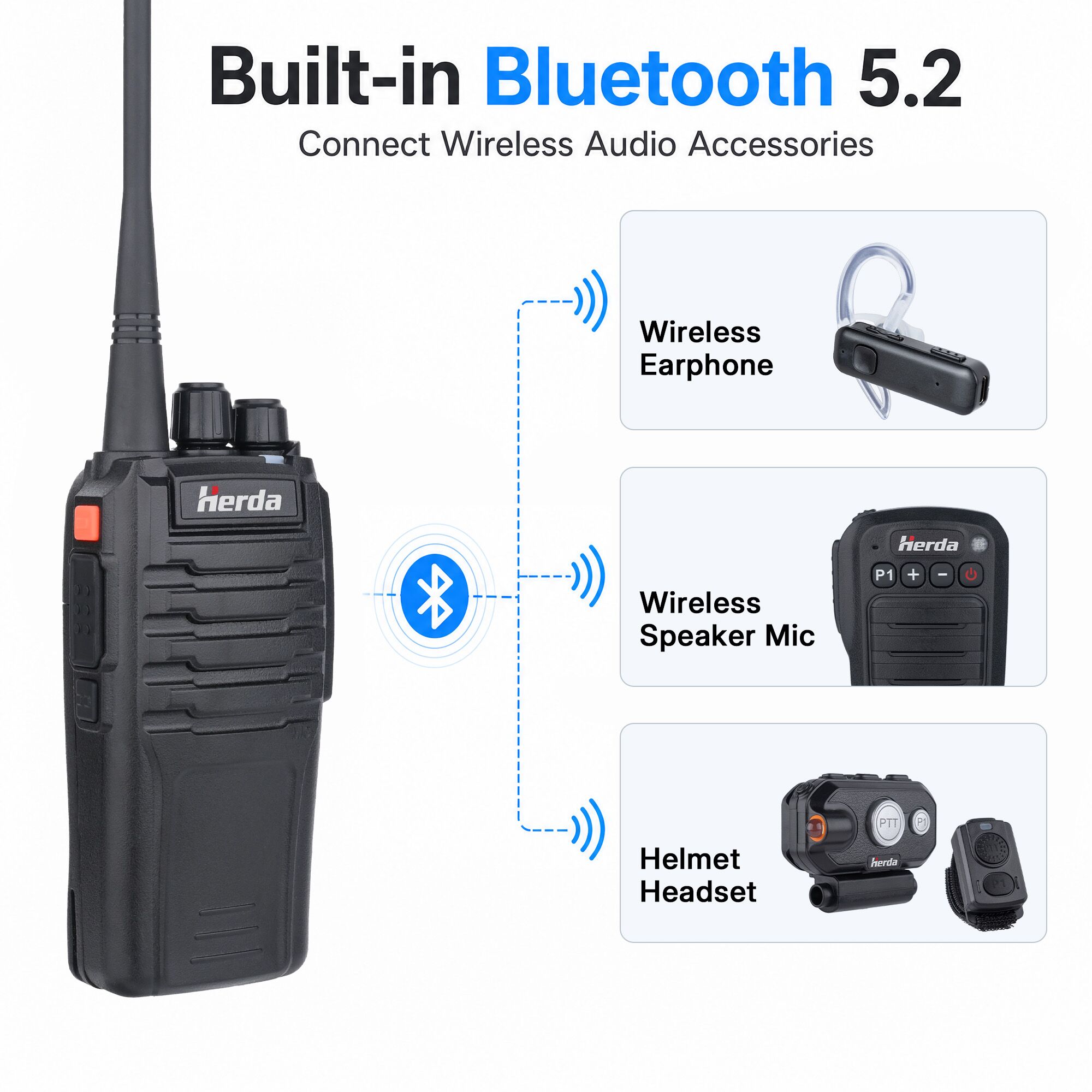

  • Drawing inspiration from our classic H10 walkie-talkie design, we have now integrated a cutting-edge Bluetooth 5.2 module, enabling seamless connectivity with wireless earphones (and supporting headset pairing).

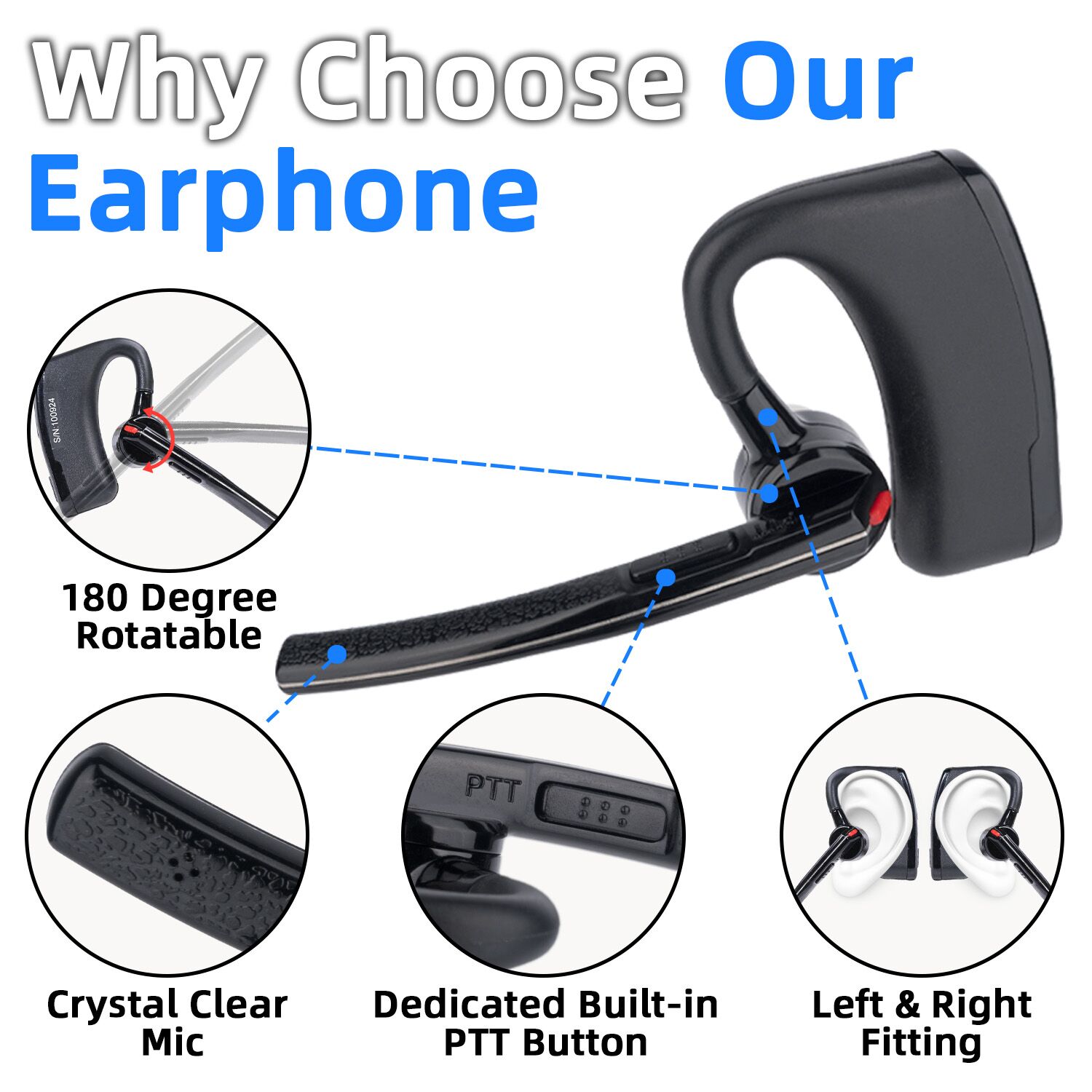

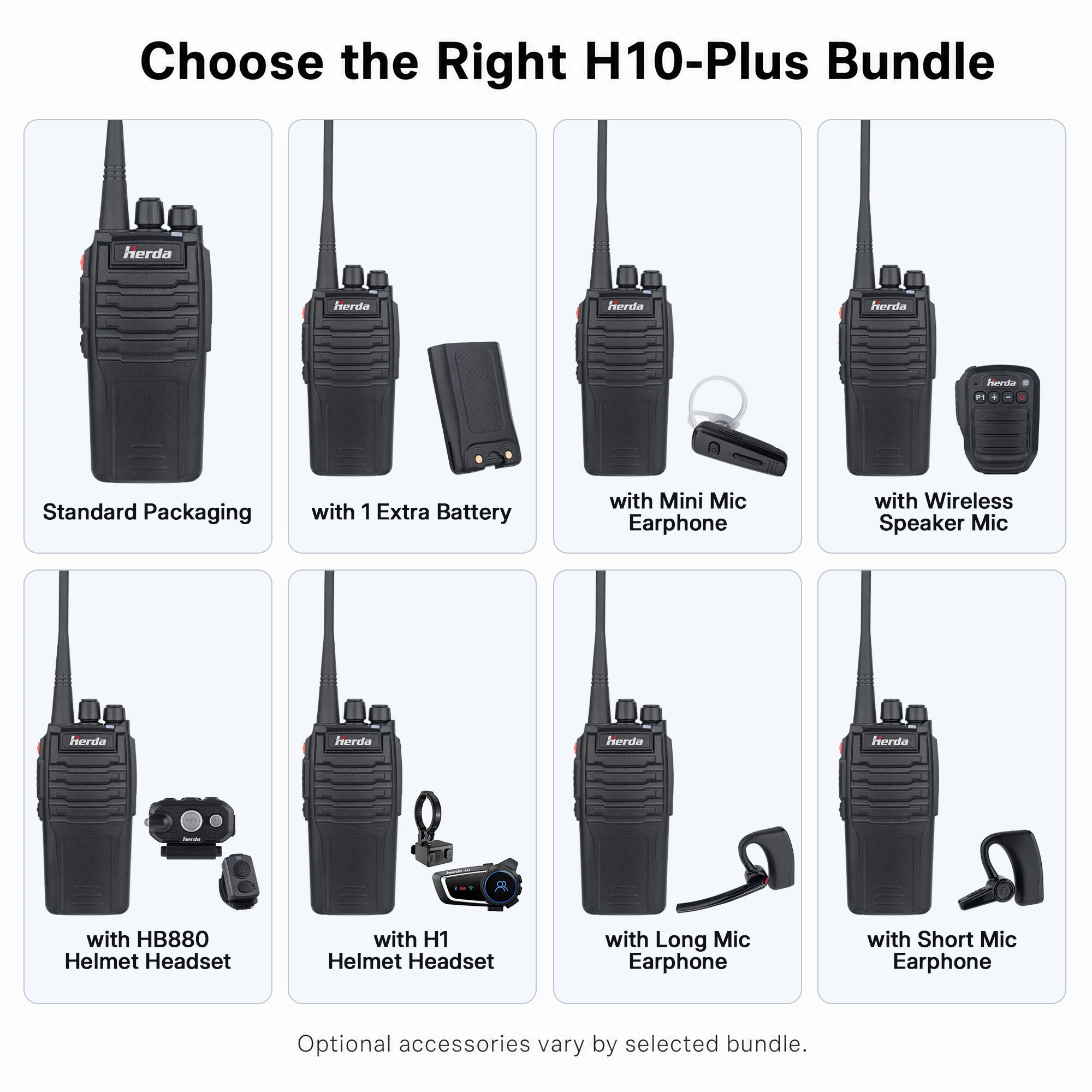

  • We offer a selection of 3 wireless headsets and 1 wireless speaker mic for you to choose from, ensuring the perfect fit for your needs. During manufacturing, we’ll pair your chosen headset with the walkie-talkie so it’s ready to use straight out of the box.
  • Boasting up to 10 Watts of transmission power and compatibility with UHF frequencies, our walkie-talkies provide an impressive talking range of up to 7km (4.35 miles) in open spaces and 1km (0.62 miles) in urban environments.

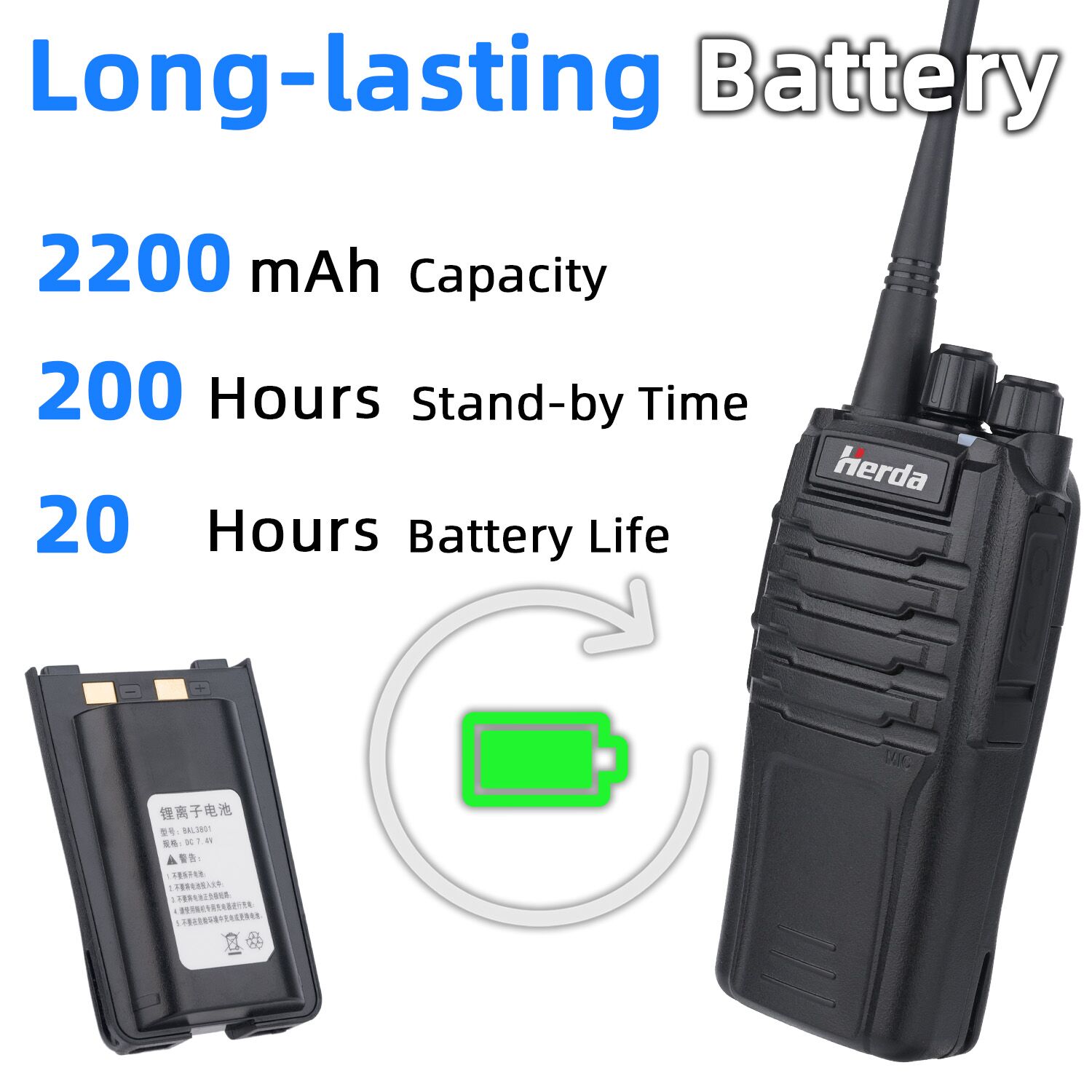

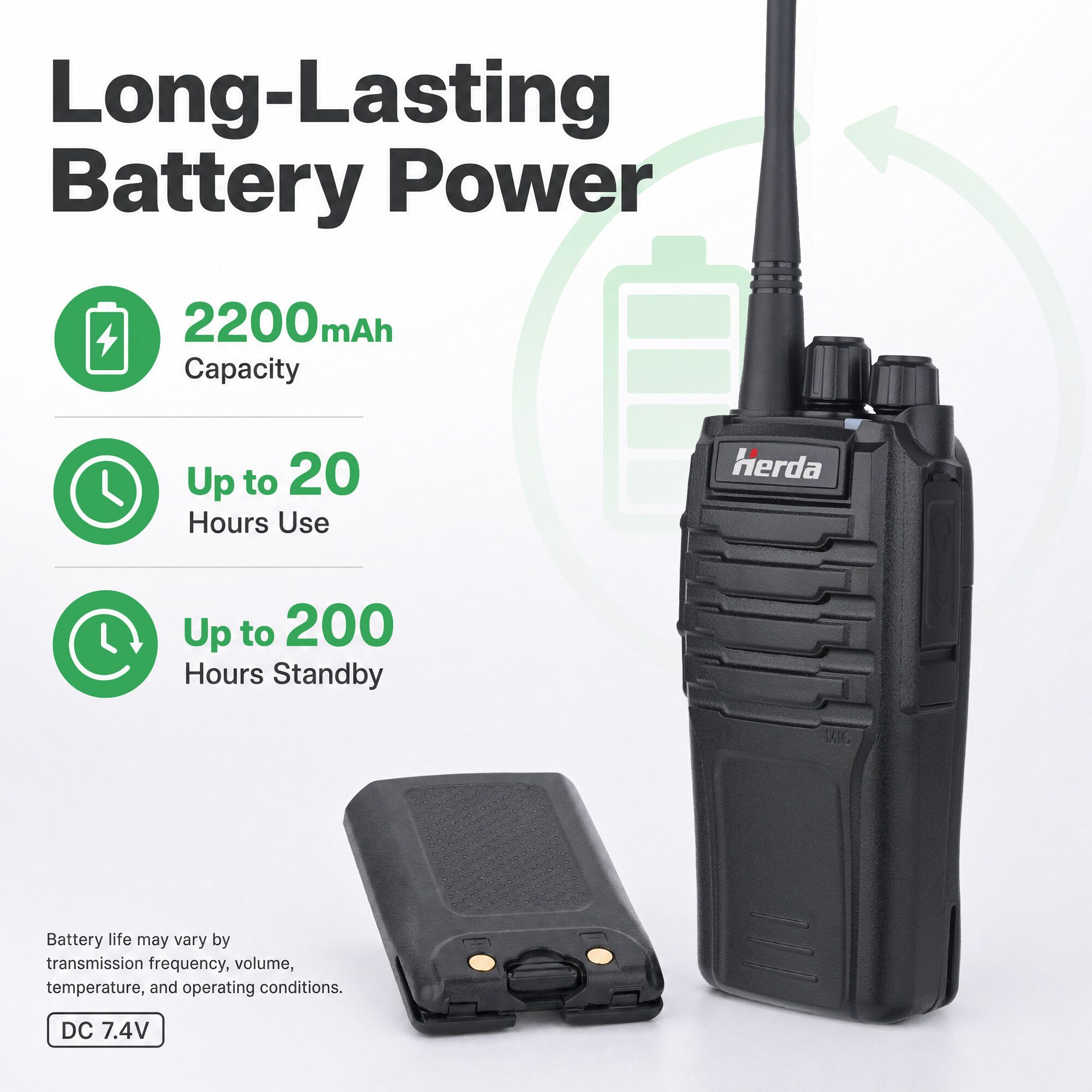

  • The device is powered by a 2200mAh high-capacity battery, delivering up to 20 hours of use under a 5/5/90 Duty Cycle at high transmission power (Please note that actual usage time may vary depending on the frequency of use).

Main Functions

  • Built-in Bluetooth 5.2, Comes with Wireless Headset/Speaker Mic
  • 10W High Power Output (Programming software needed)
  • Extra Customizable Function Button
  • Channel Scan

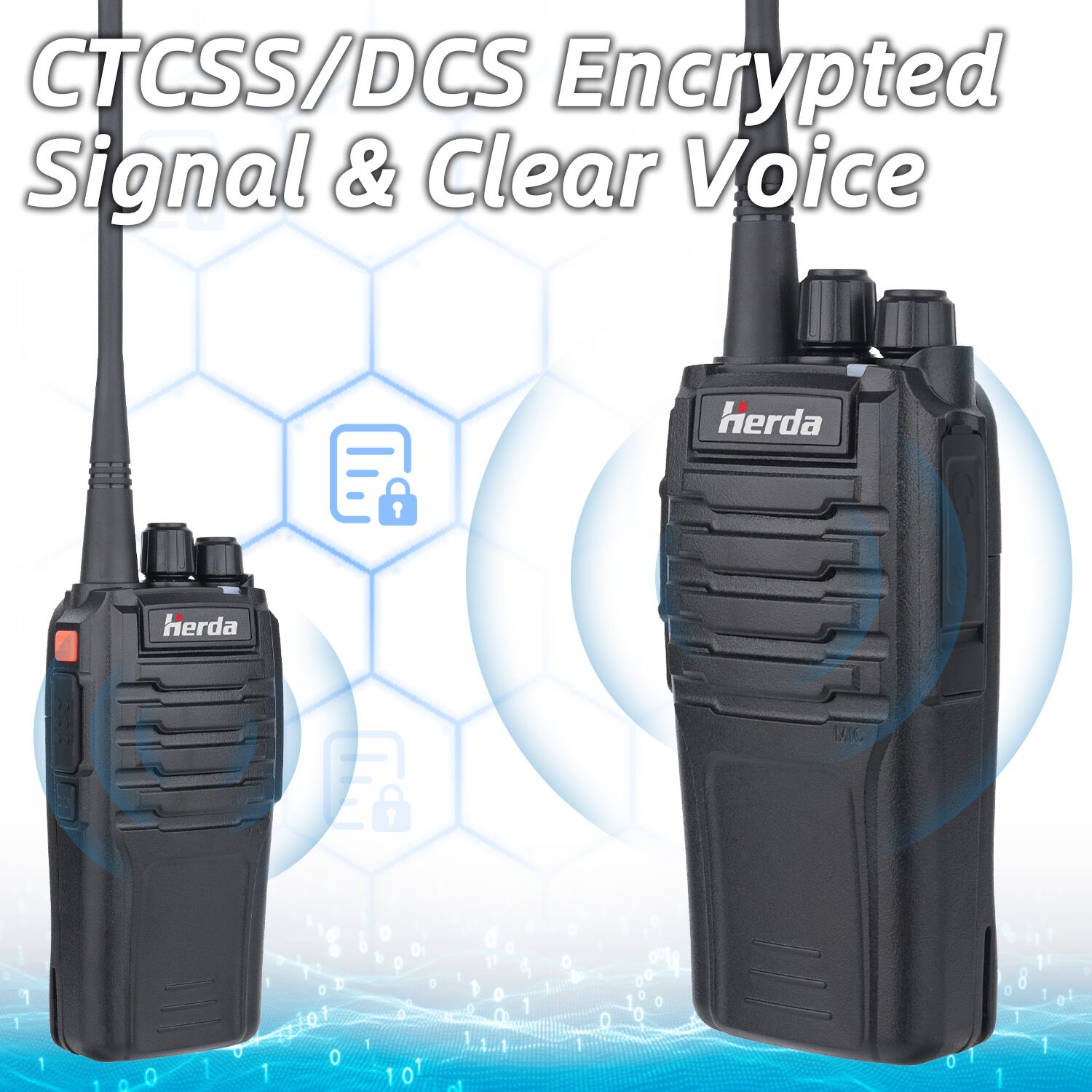

  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set
  • VOX
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode
  • Read/Write Frequency Encryption
  • Voice Notification


*The walkie-talkie adheres to GMRS, MURS, and PMR446 guidelines.

h10 plus product description 3
h10 plus product description 4
h10 plus product description 2
h10 plus product description 5

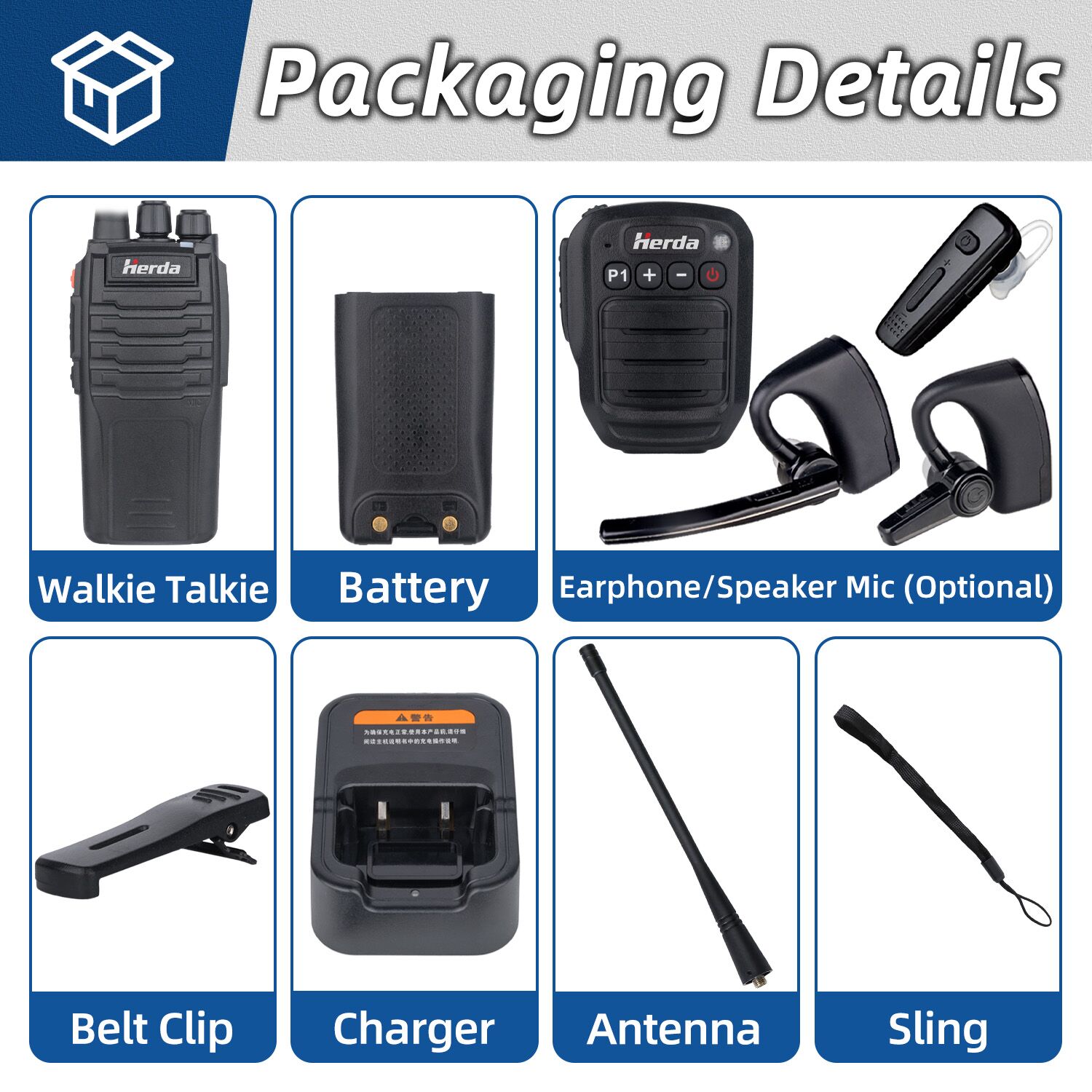

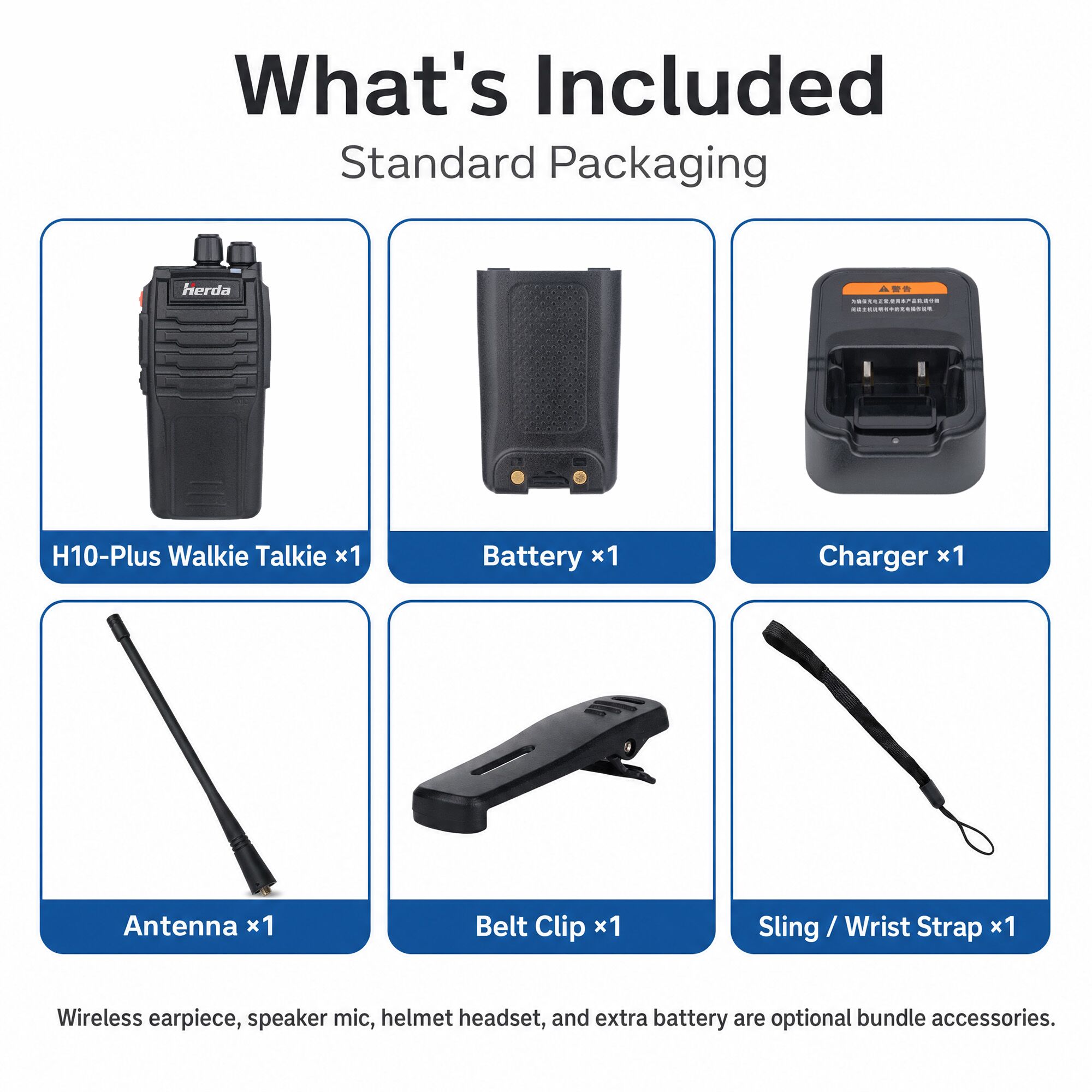

What's Included In Single Product Unit:

  • H10 Plus Radio * 1
  • Wireless Headset/Speaker Mic (Optional) * 1
  • Long Antenna * 1
  • Battery * 1
  • Charging Stand * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Detail Specifications

General

Frequency Range
UHF: 400-470MHz
BT: 2.4-2.480GHz HSP HFP
Channel Capacity
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2200mAh
Antenna Impedance
50Ω

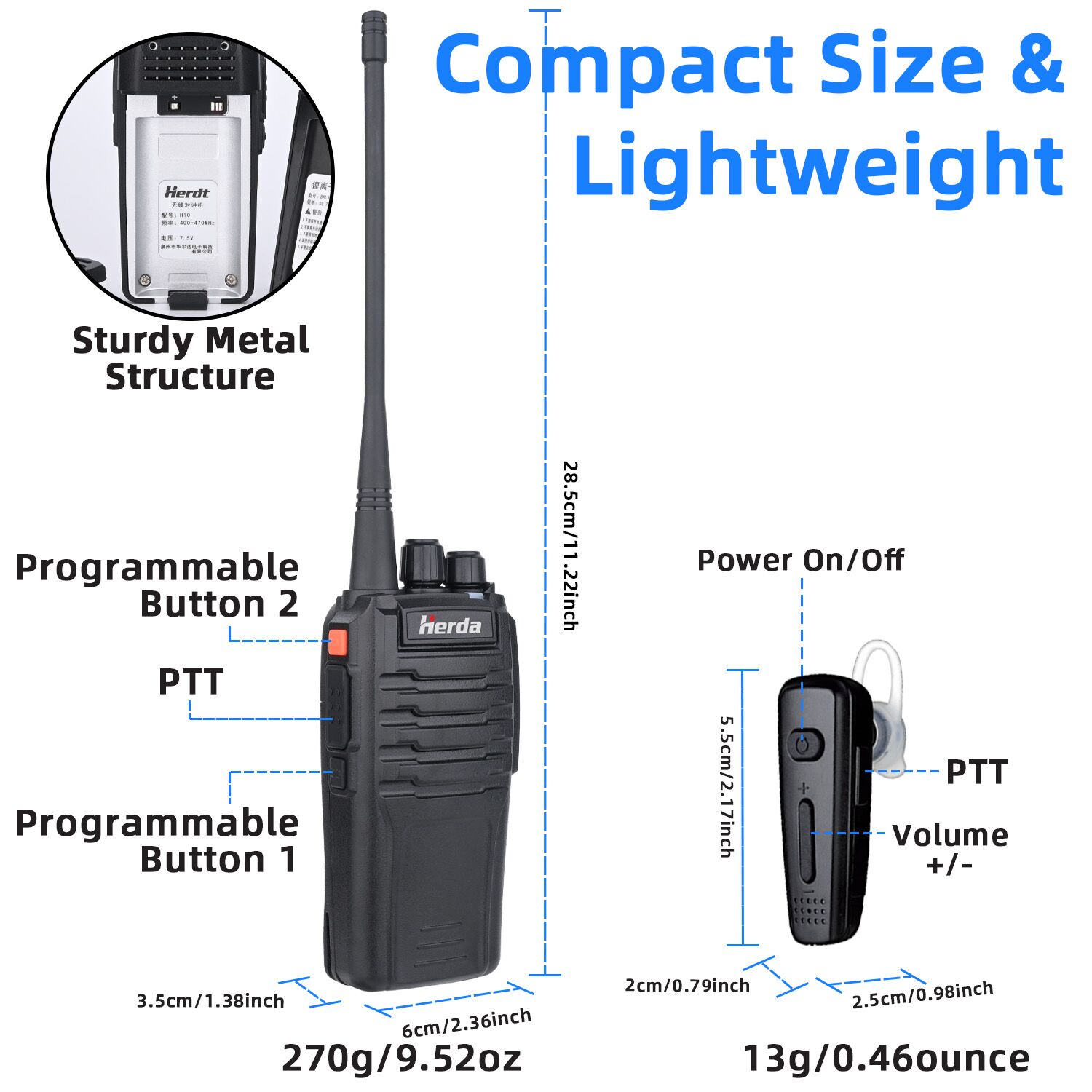

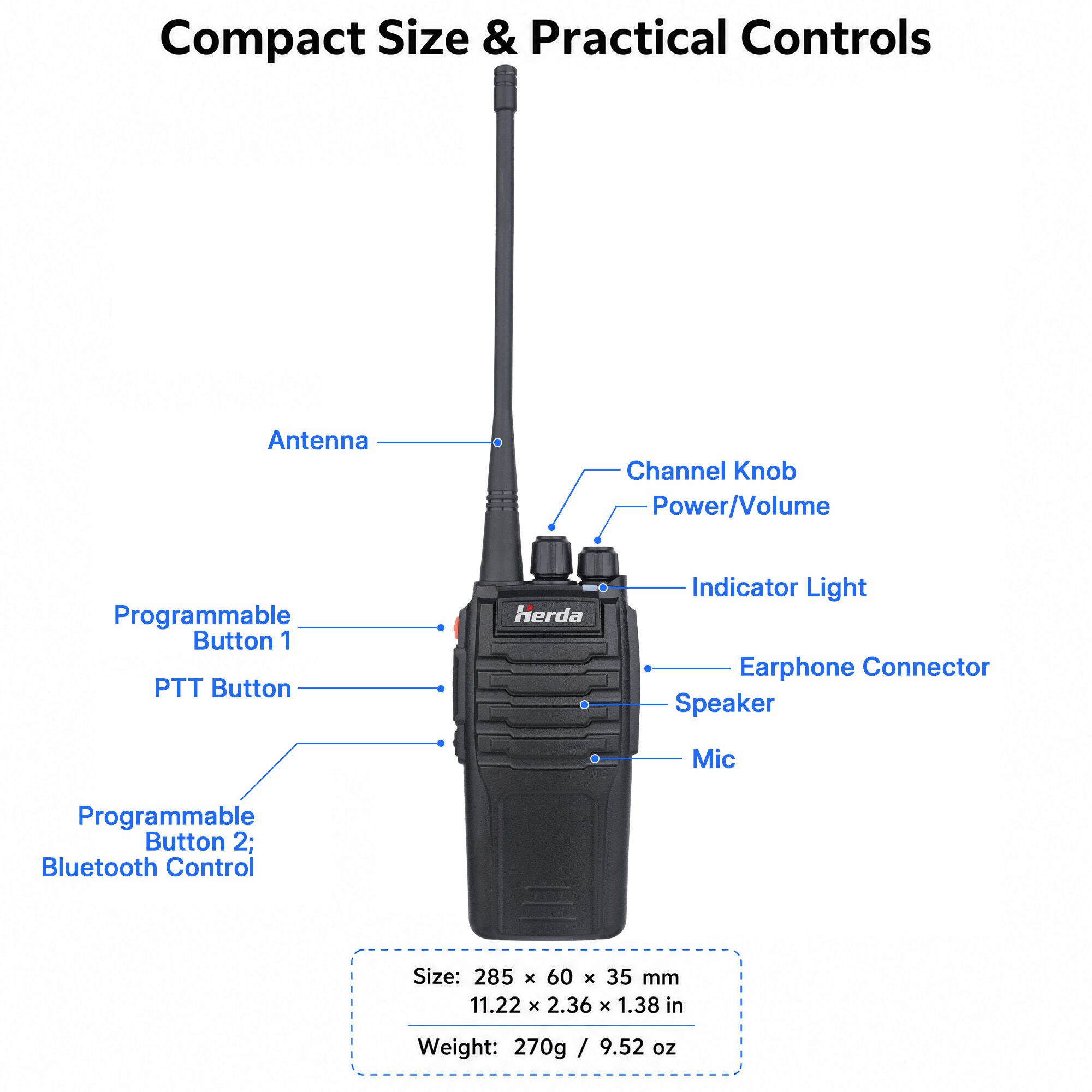

Dimension (L*W*H)
285*60*35 mm (11.22*2.36*1.38 in)
Weight
About 270g (9.52oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
≤60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥0.5W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
10 Watts; 5 Watts
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
