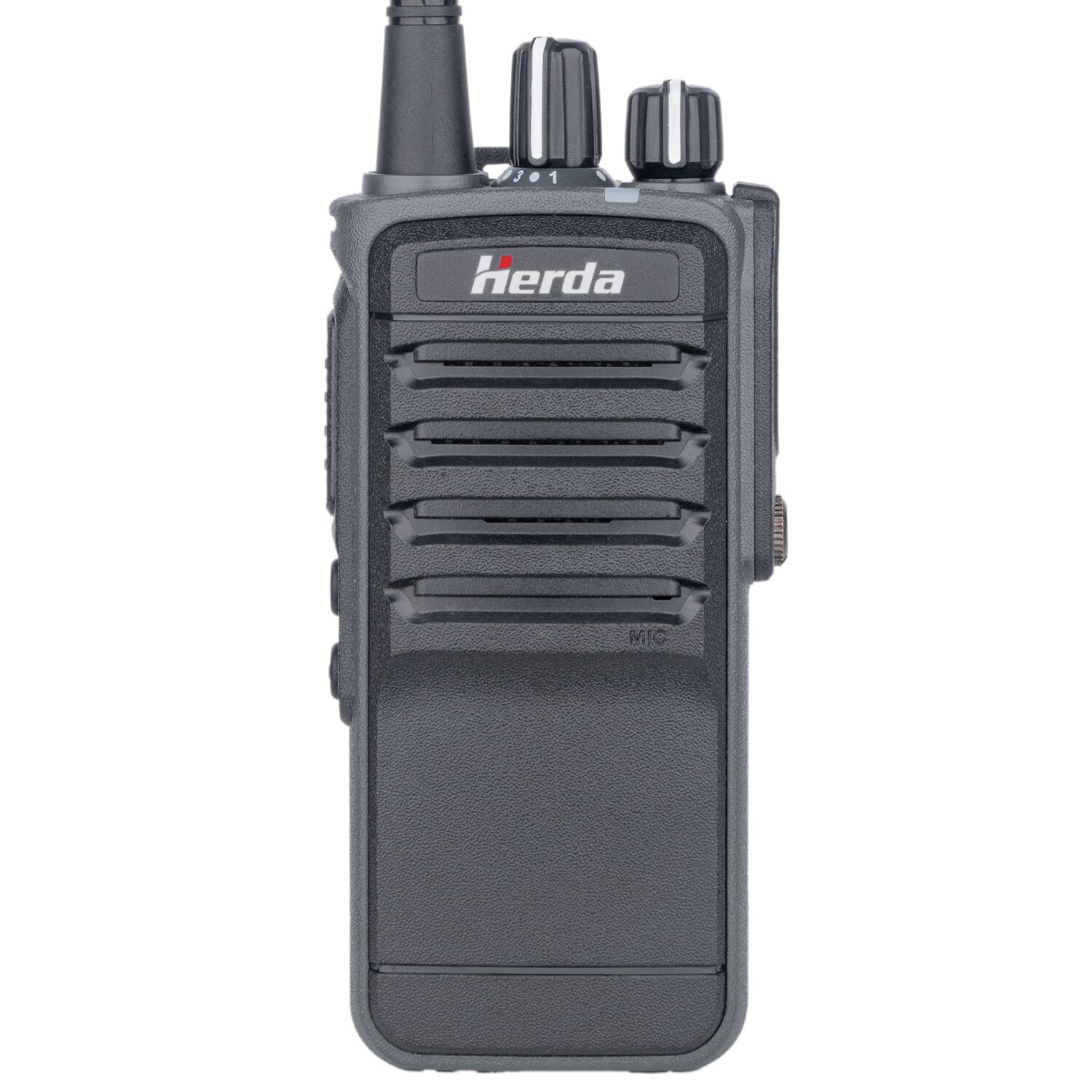

H368D Noise Canceling Mic 5W UHF Walkie Talkie

Powerful 5W walkie-talkies, resilient body, and 2200mAh battery. Enjoy multifunction options and noise canceling for crisp audio.

Powerful 5W walkie-talkies, resilient body, and 2200mAh battery. Enjoy multifunction options and noise canceling for crisp audio.

Features

radio antenna icon
5-watt Power Performance
speaker or max volume icon
Large 40mm Audio Speaker
vox icon
Multifaceted Options (VOX, BCL, etc)
noise reduction icon
Noise Canceling Microphone
full power or powerful feeling battery icon
2200mAh Dependable Battery
walkie talkie icon
Metal Product Structure
Ask about this product or Bulk Pricing

Product Description

Herda supports a one-year warranty on all items sold. If you encounter any questions or issues, our proficient staff is here to help without delay.

h368d radio product description 1

Descriptions

  • Featuring a compact structure and rugged design, our walkie-talkie is built to be durable, dustproof, drop-resistant, and shock-resistant, ensuring reliable communication in even the most challenging environments.
  • Built-in noise cancellation chip that filters all environmental noise, giving you crystal-clear audio.
  • Thanks to its improved design, our walkie-talkie boasts an extended communication range and better signal transmission, providing clear audio both indoors and outdoors, in urban or rural settings.
  • The 2200mAh high-capacity Li-ion battery allows for all-day communication on a single charge, supporting up to 20 hours of use.
  • With a large rotating knob, our walkie-talkie enables easy channel switching and volume adjustments. The user-friendly design ensures hassle-free operation, even when wearing heavy gloves.

Main Functions

  • Max 5 Watts High Power Output
  • Noise Canceling Mic
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set
  • VOX
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode
  • Read/Write Frequency Encryption
  • Voice Notification


*This walkie-talkie conforms to GMRS and PMR446 communication standards for reliable communication quality.

h368d radio product description 2
h368d radio product description 3
h368d radio product description 4

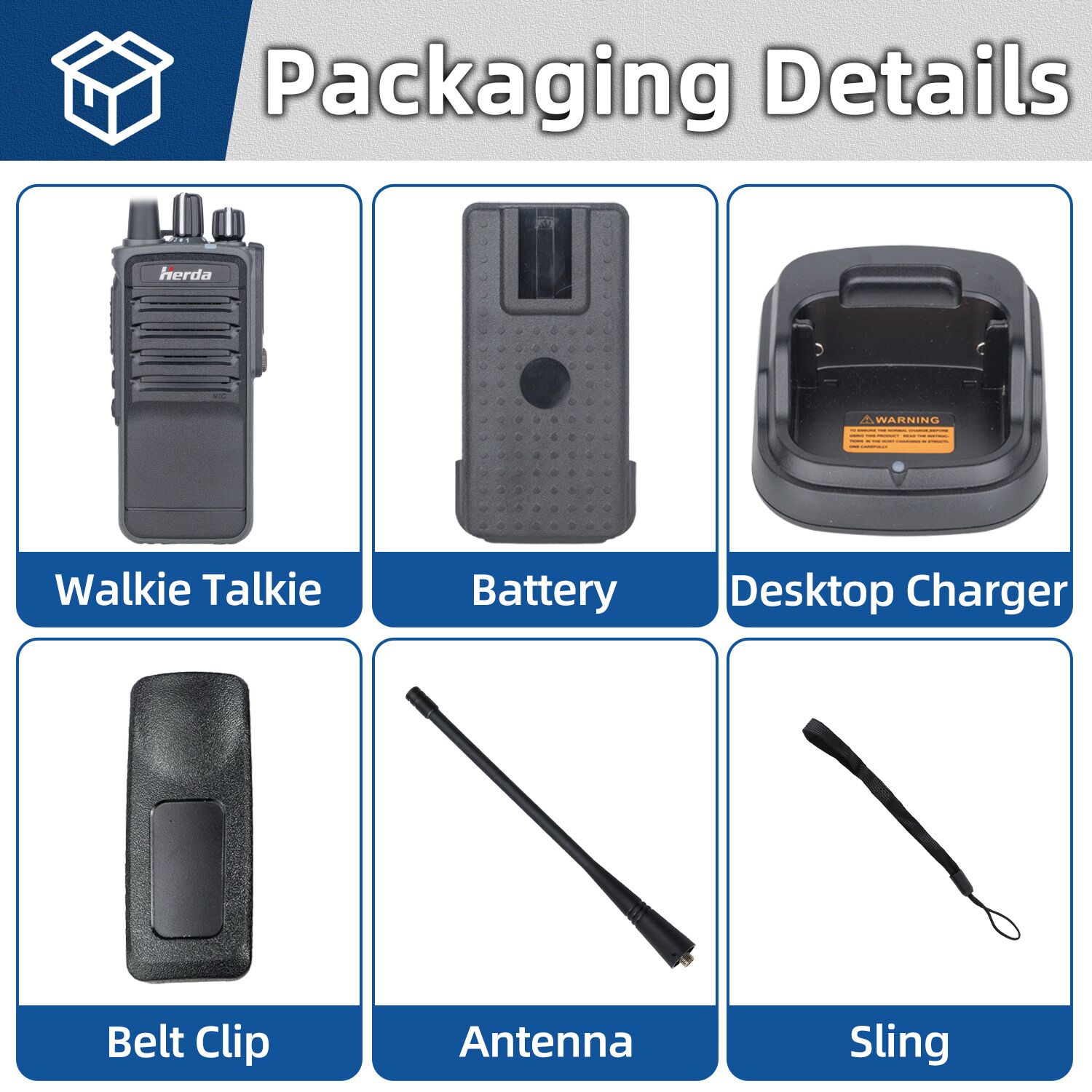

What's Included In Single Product Unit:

  • H368D Walkie Talkie * 1
  • Long Antenna * 1
  • Battery * 1
  • Charging Stand * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Detail Specifications

General

Frequency Range
UHF: 400-470MHz
Channel Capacity
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2200mAh
Antenna Impedance
50Ω

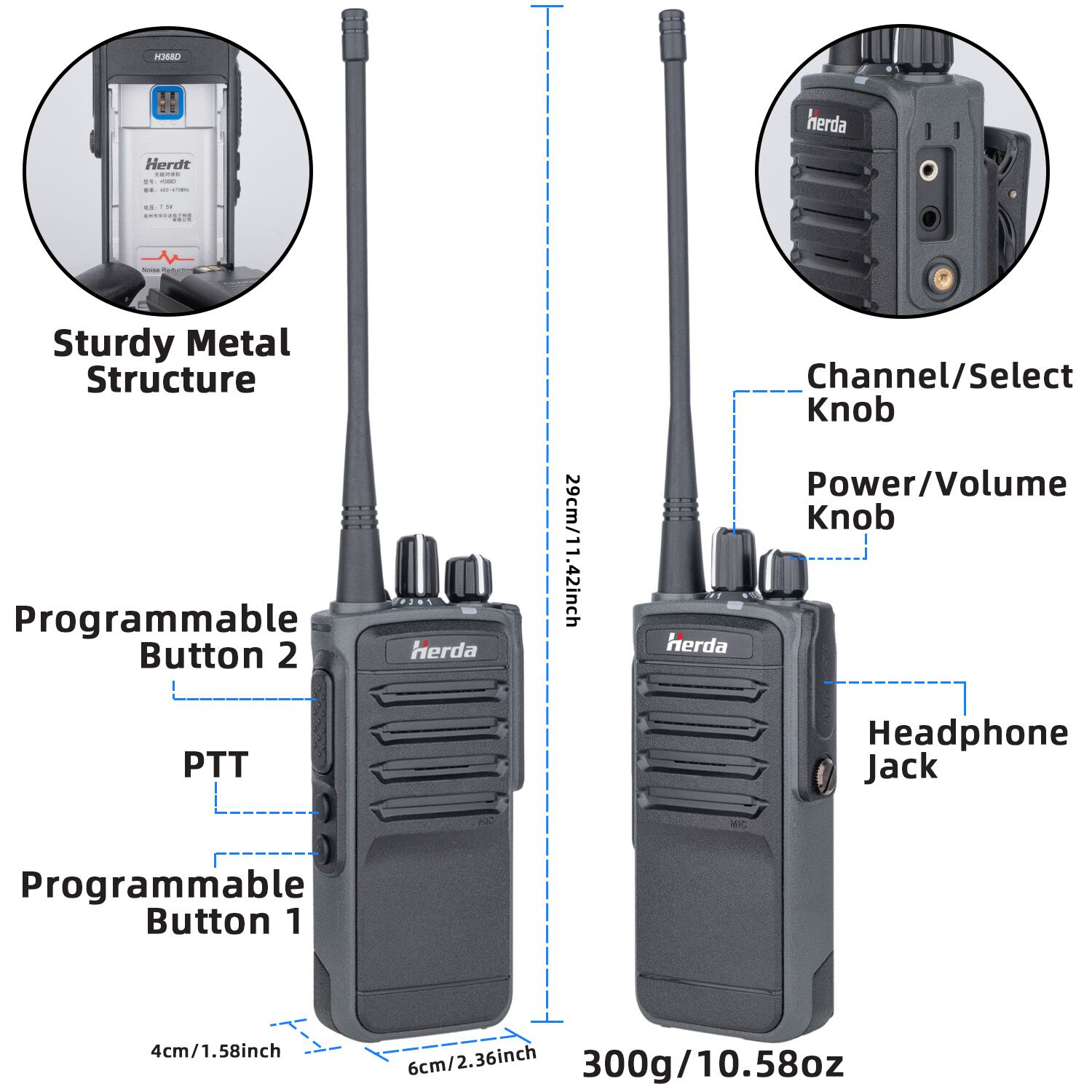

Dimension (L*W*H)
290*60*40 mm (11.42*2.36*1.58 in)
Weight
About 300g (10.58oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
≤60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥0.5W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
5 Watts; 2 Watts
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
