HB1 Bluetooth Walkie Talkie with Wireless Earphone

BT 5.2 walkie-talkies with 2W power, 40hr battery, compact design, optional BT earphone & earphone pairing. Multifunctional design

BT 5.2 walkie-talkies with 2W power, 40hr battery, compact design, optional BT earphone & earphone pairing. Multifunctional design

Upgraded Features

bt available

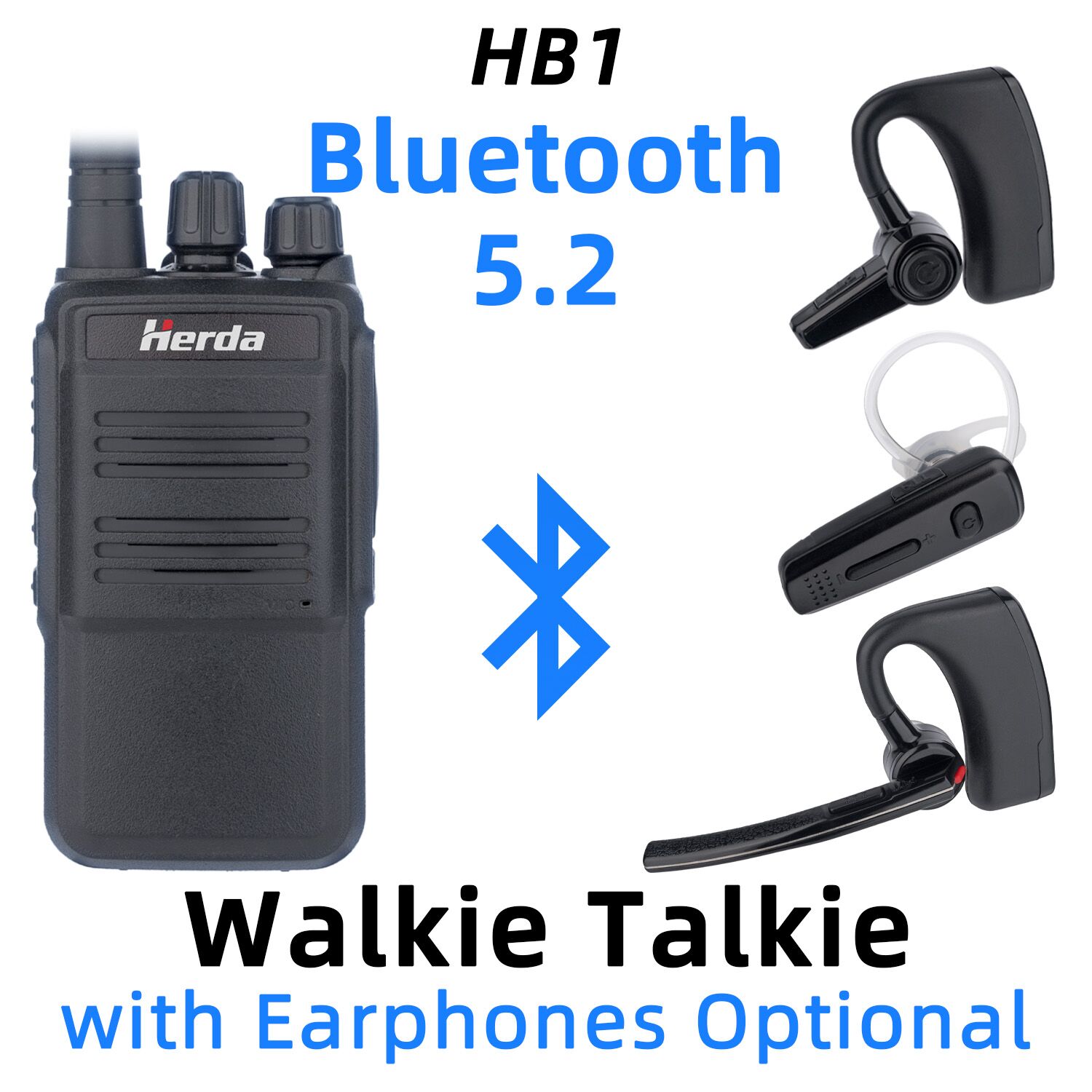

Integrated Bluetooth 5.2
radio antenna icon
2 Watts Power
optional walkie talkie wireless earphones icon
Optional PTT Earpieces
full power or powerful feeling battery icon

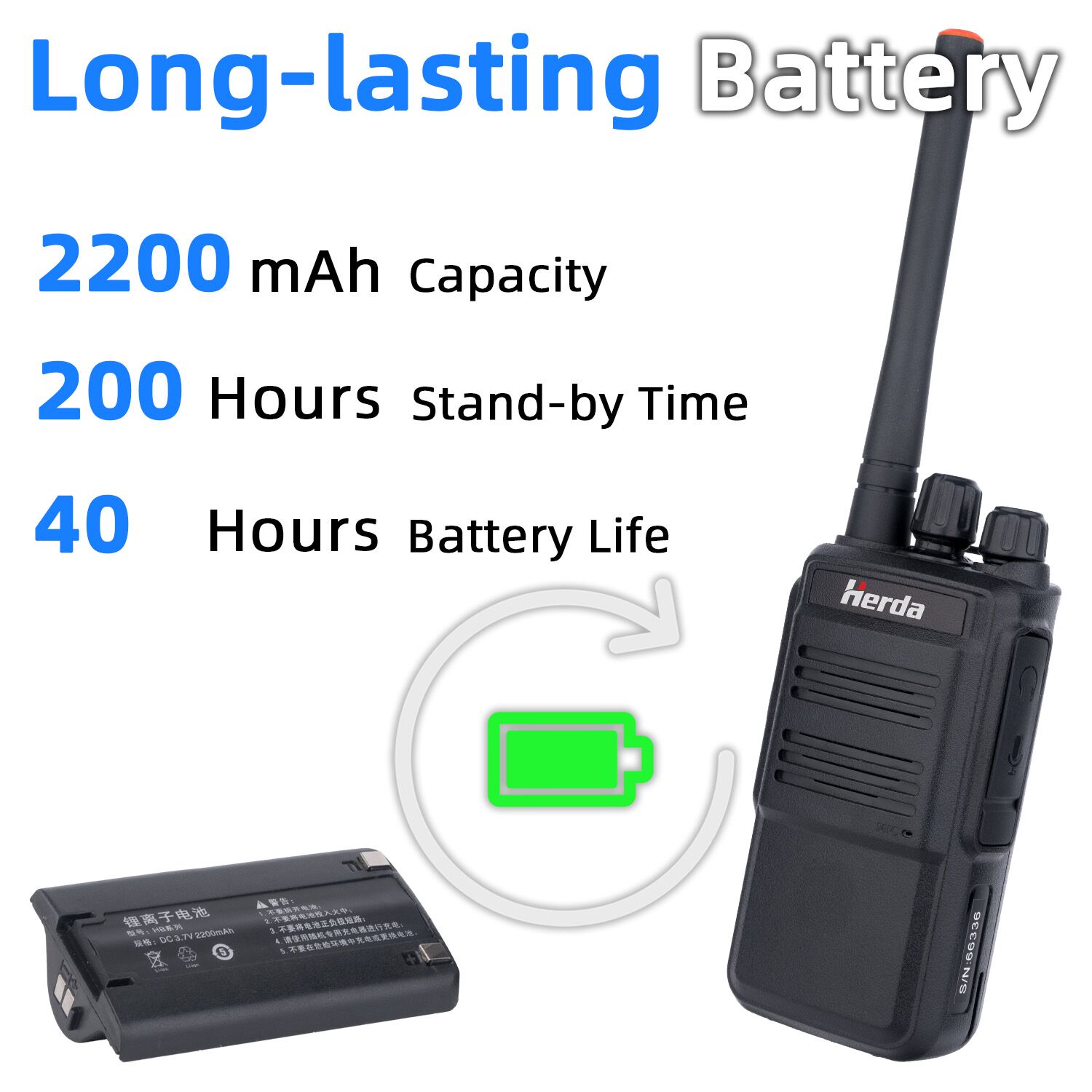

Battery Life Up to 40 Hours
compact

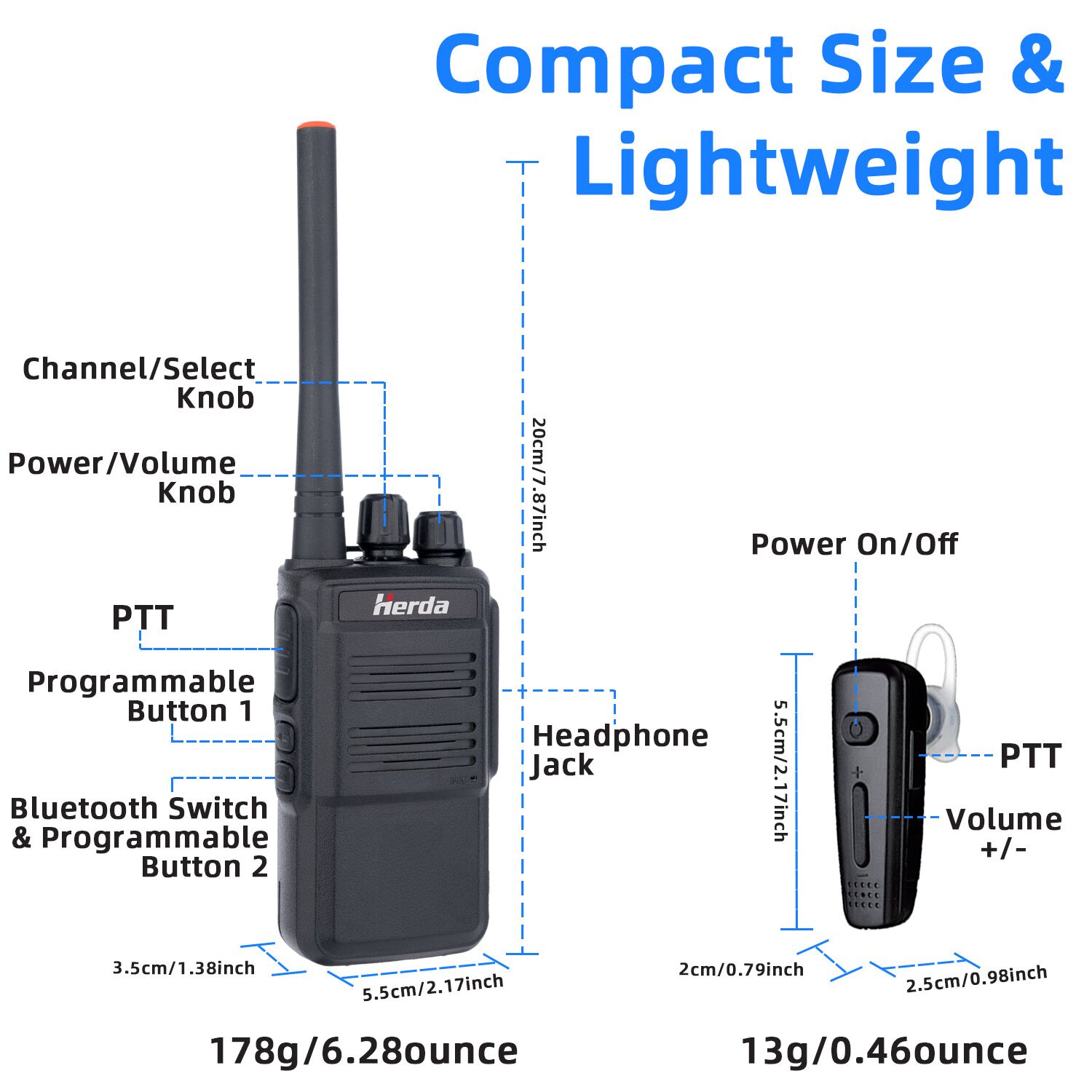

Compact & Lightweight
Ask about this product or Bulk Pricing

Product Description

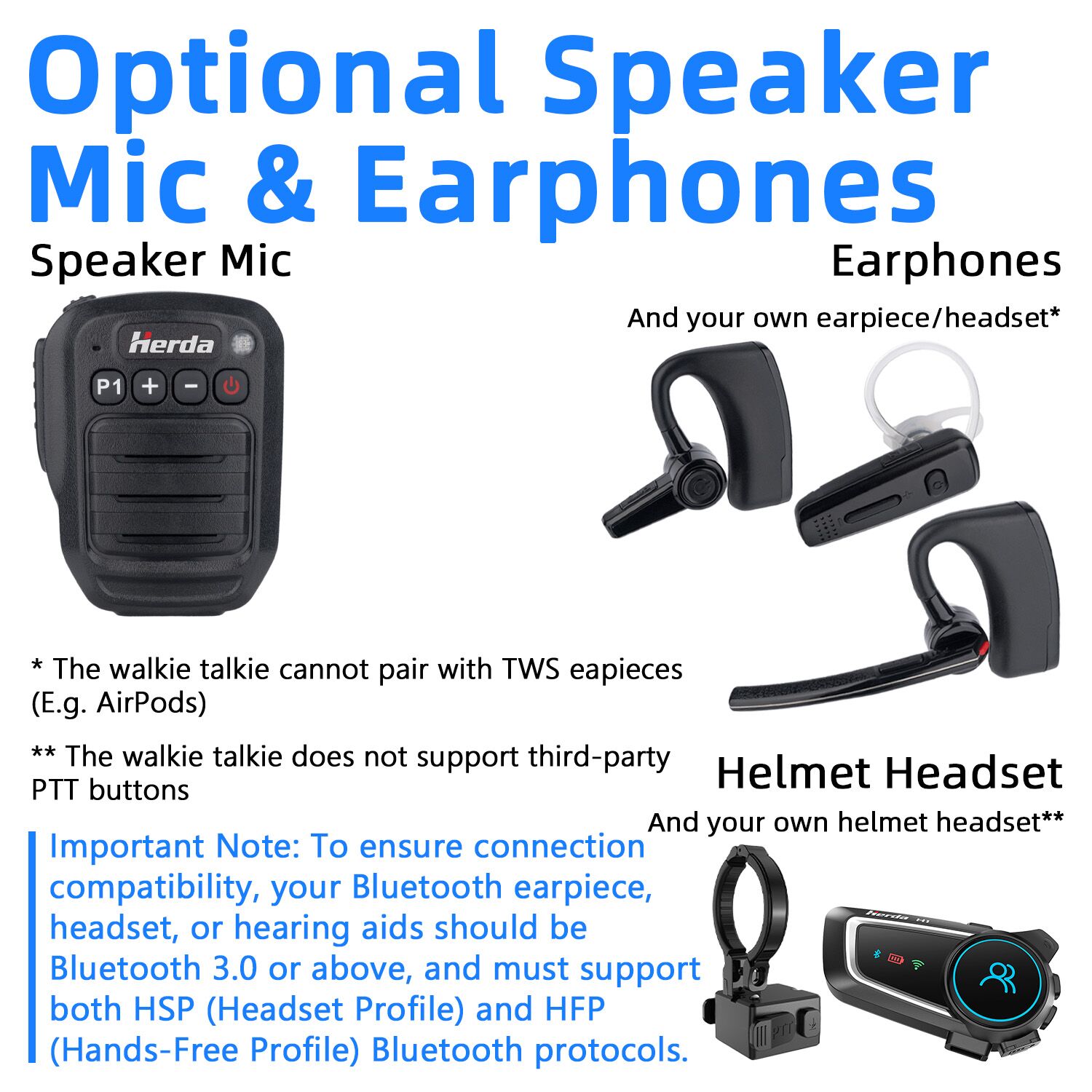

Note 1: To confirm compatibility of connection with your own earpiece, helmet intercom, or hearing aids, your Bluetooth device should be Bluetooth 3.0 or above, and must support both HSP (Headset Profile) and HFP (Hands-free Profile) Bluetooth protocols. Devices using only the A2DP (and AVCRP) profile are not supported. Please refer to your device manufacturer’s specifications to confirm profile support.

hb1 walkie talkie product description 1

Descriptions

  • Our walkie-talkie boasts a compact, lightweight design for easy carrying and handling.
  • The redesigned high-gain antenna ensures stable, extended-range transmission.

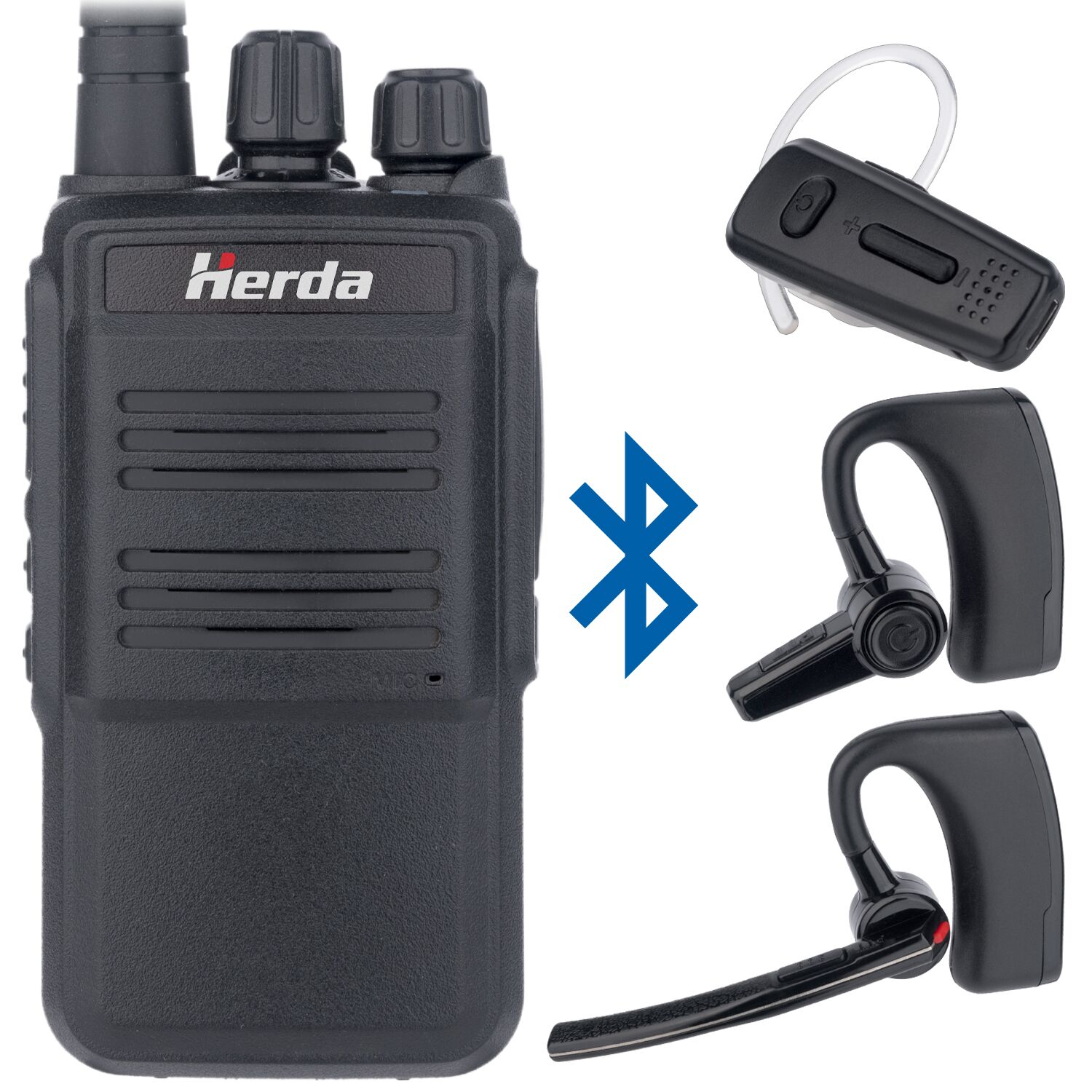

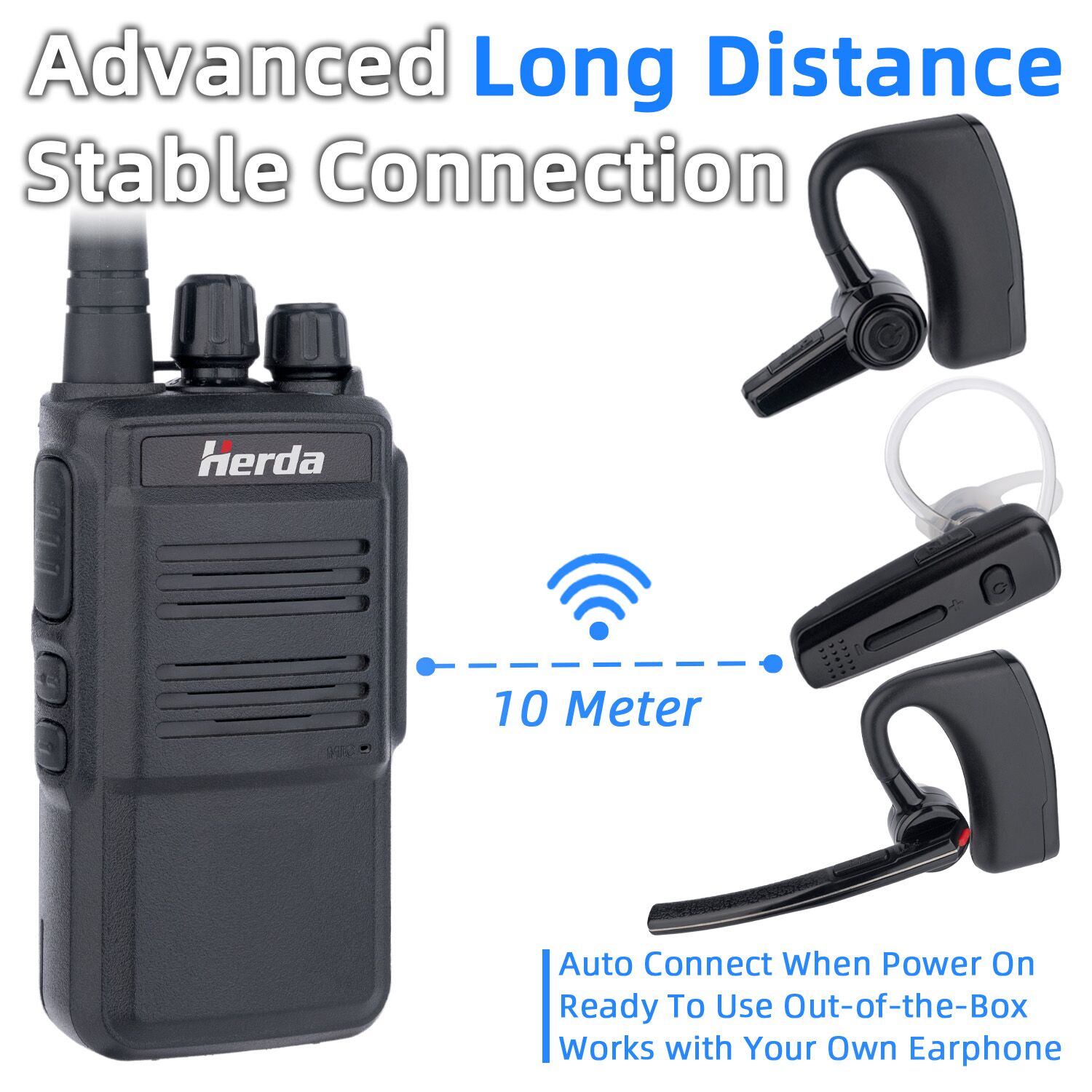

  • Integrated with Bluetooth 5.2, it’s compatible with wireless headsets and handheld mics.
  • The package includes a pre-paired wireless headset & PTT for instant use.
  • Numerous built-in features like BCL, DTMF, and TOT optimize communication.

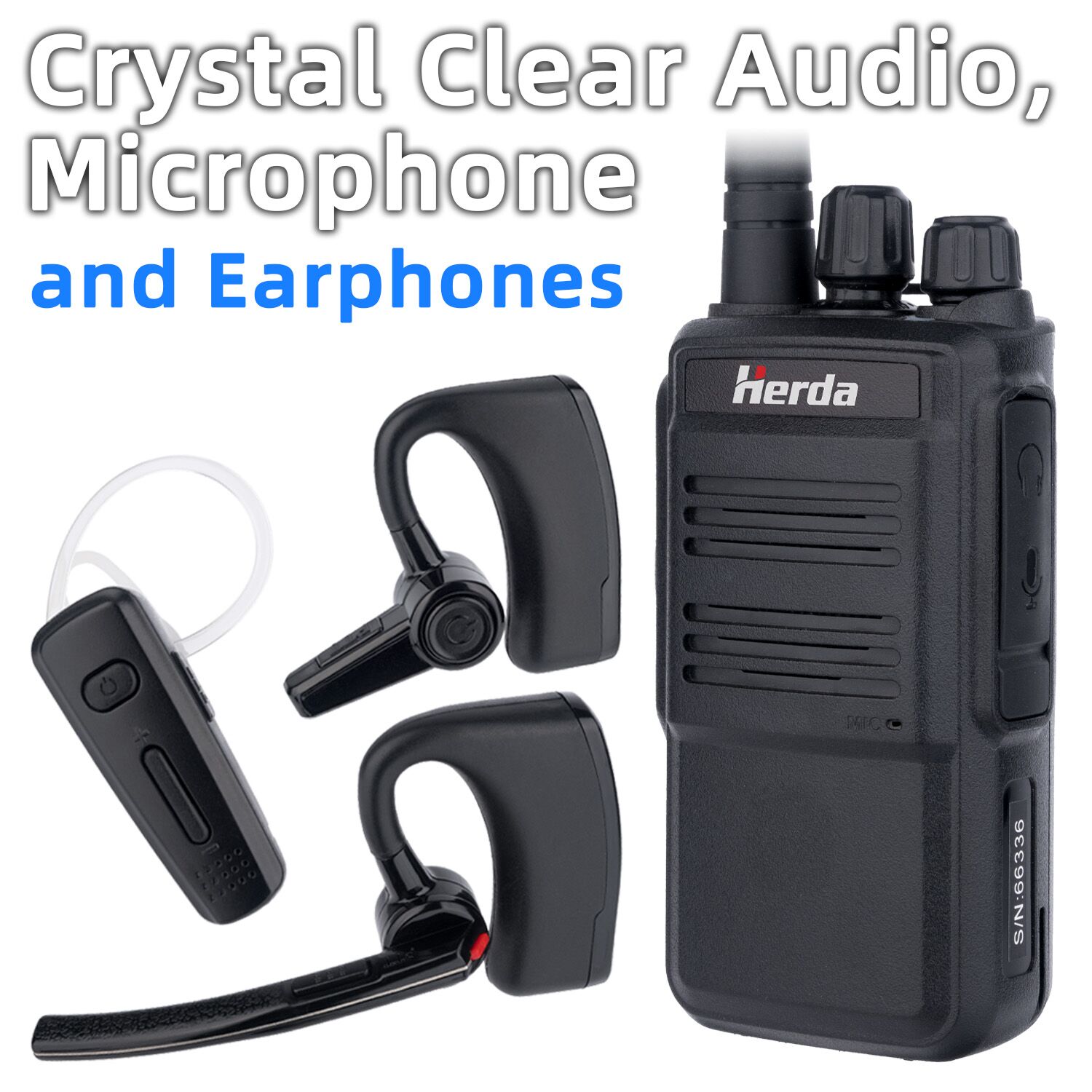

  • A noise-canceling mic, large 35mm speaker, and high-quality receiver deliver clear audio in noisy environments.

Main Functions

  • Built-in Bluetooth 5.2 module
  • Wireless Headset optional
  • Max 2W High Power Output, 0.5W Optional (Programming software needed)
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode
  • Read/Write Frequency Encryption
  • Voice Notification


*Our walkie-talkie adheres to FRS and PMR446 standards for quality audio.

hb1 walkie talkie product description 3
hb1 walkie talkie product description 4
hb1 walkie talkie product description 2
hb1 walkie talkie product description 5

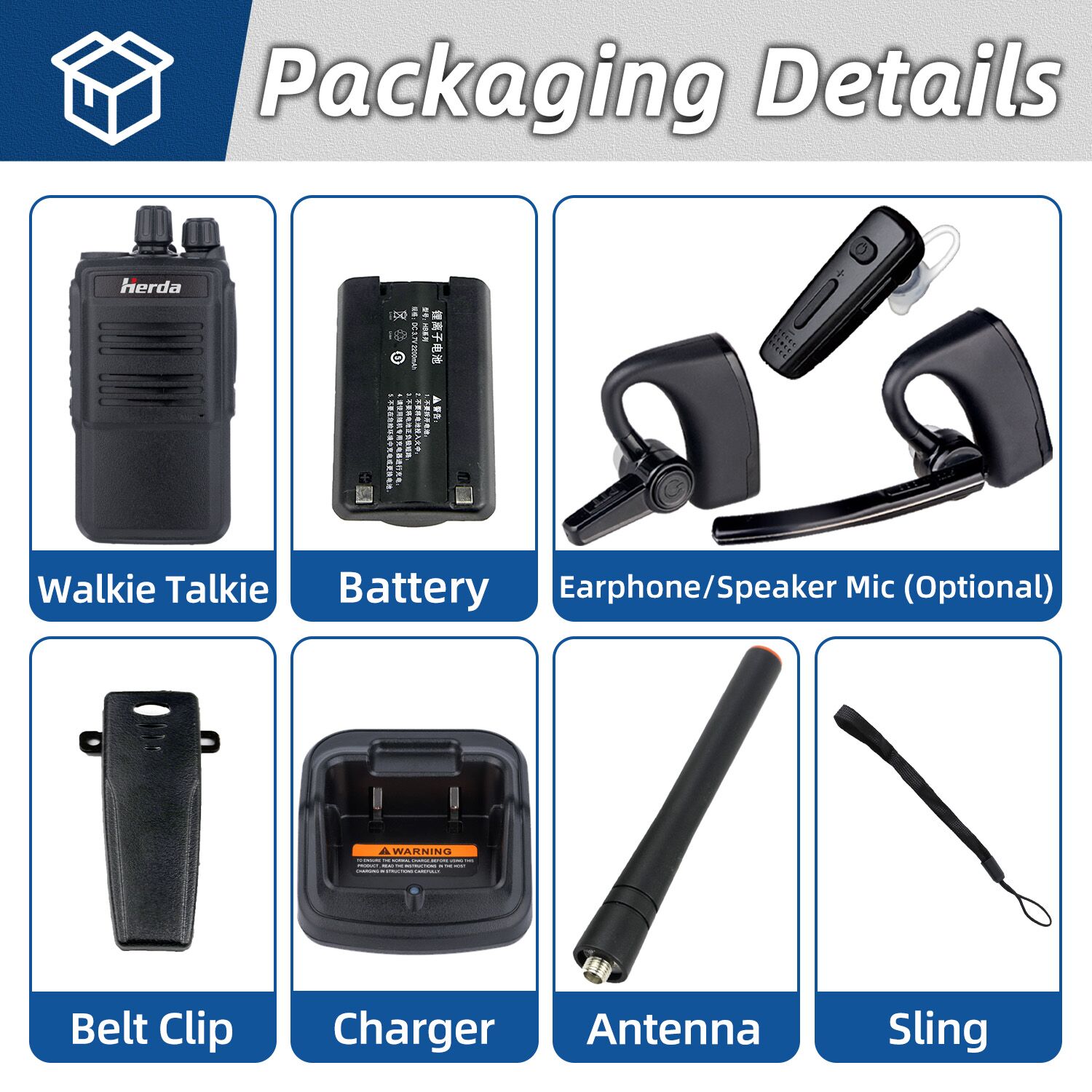

What's Included In Single Product Unit:

  • HB1 Walkie Talkie * 1
  • Antenna * 1
  • Wireless Earphone * 1
  • Battery * 1
  • Charging Stand * 1
  • Charging Cable * 1
  • Belt Clip * 1
  • Hanging Strap * 1

Technical Specifications

General

Frequency Range
UHF: 400-470MHz
Channel Capacity
16 Channels
Channel Spacing
25KHz, 12.5KHz
Frequency Stability
±2.5ppm
Operating Voltage
DC 7.4V ±15%
Battery Life
Up to 40 Hours (5/5/90 Duty Cycle, High TX Power)
Battery Capacity
2200mAh
Antenna Impedance
50Ω
Dimension (L*W*H)
200*55*35 mm (7.87*2.17*1.38 in)
Weight
About 178g (6.28oz)

Receiver

Sensitivity
<0.16μV (12dB SINAD)
Adjacent Channel Selectivity
≥60 dB
Intermodulation
≤60 dB
Spurious Response
≤70 dB
Signal-to-noise Ratio (SNR)
≥45 dB
Rated Audio Power Output
≥0.5W±10%
Rated Audio Receiving Distortion
≤5%

Transmitter

RF Power Output
2 Watts; 0.5 Watt
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
