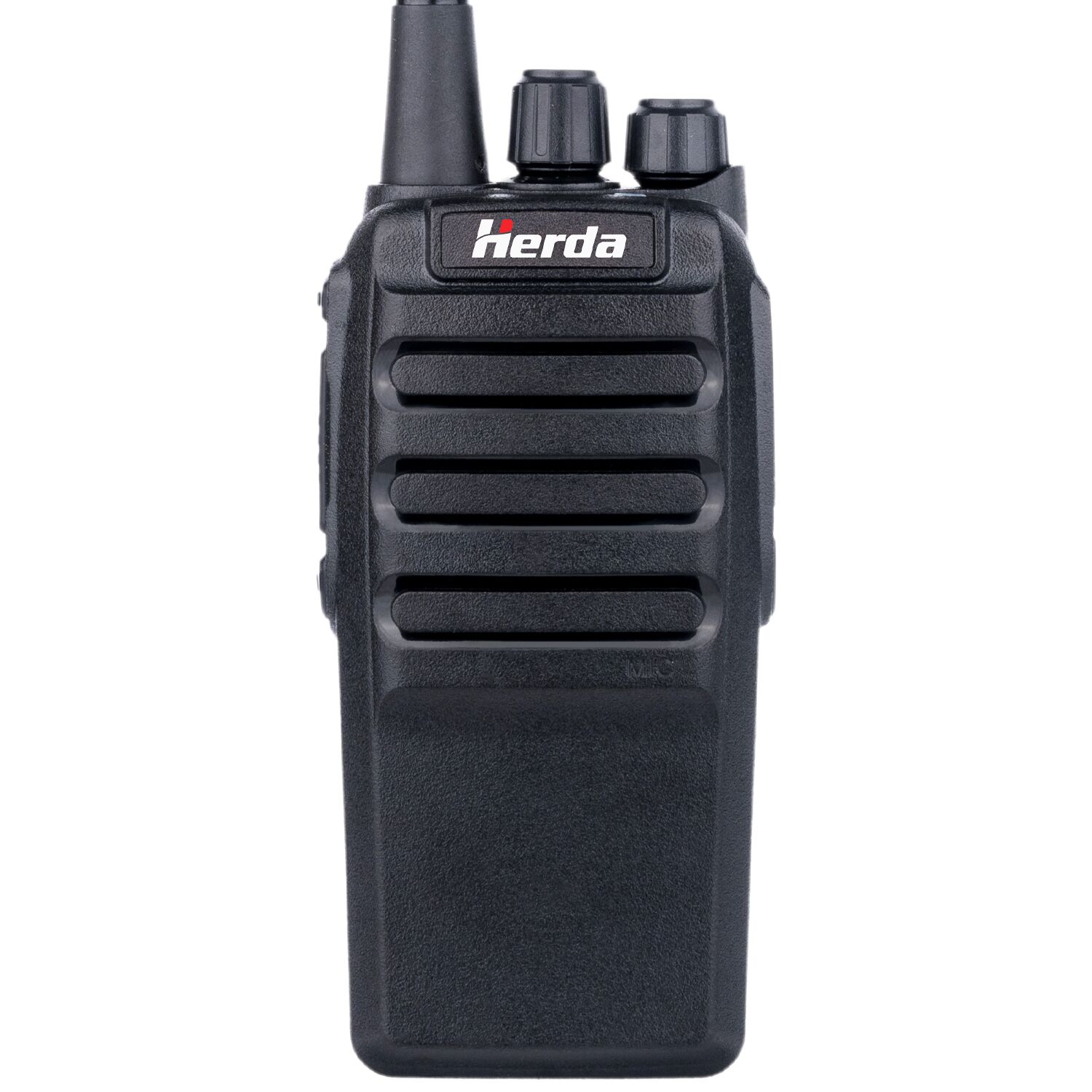

H19 10 Watts Long Range Walkie Talkie VHF/UHF Two Way Hand Radio

Count on our walkie-talkies for 10W output, sturdy build, 2200mAh battery, and noise-cancelling. Versatile and crisp sound.

ASK ABOUT THIS PRODUCT OR BULK PRICING
Get a quick response from the Herda team.
Secure checkout
1 Year Warranty
Aftersales Support
SKU H19 Category
BUILT FOR PRACTICAL COMMUNICATION

UPGRADED FEATURES

radio antenna icon
10W Power Output
speaker or max volume icon
40mm Premium Speaker
microphone
Noise Reduction Mic
robust
Durable Metal Frame
full power or powerful feeling battery icon
2200mAh Powerful Battery
vox icon
Multiple Functions
PRODUCT DESCRIPTION

PRODUCT DETAILS

All Herda items include a one-year guarantee. For any inquiries or issues, our skilled team is on hand for prompt support.

h19 walkie talkie product description 1

Descriptions

  • For professionals in need of a cost-effective, reliable communication tool, a durable radio is essential for on-site dialogue.
  • Our dependable walkie-talkie, encased in a tough ABS shell, provides clear audio transmission, making it perfect for crucial communications in industrial settings.
  • Equipped with a 2200mAh high-capacity battery, the walkie-talkie offers up to 20 hours of use, ensuring full-day functionality. Extra batteries are available for extended operation.
  • Our walkie-talkie comes with various features for enhanced utility, such as VOX, Squelch, Low Battery Alert, CTCSS/DCS, Energy-Saving Mode, and more.

Main Functions

  • Max 10W High Power Output (5 Watts available)
  • Extra Customizable Function Button
  • Channel Scan
  • CTCSS/DCS (Support non-standard codes for DCS)
  • High and Low Power Mode (Needs programming)
  • Companding
  • Busy Channel Lockout (BCL)
  • DTMF Send Code/Set
  • VOX
  • Scrambler
  • Time-out-timer (TOT) function
  • Battery Save Mode
  • Read/Write Frequency Encryption
  • Voice Notification
  h19 walkie talkie product description 2 h19 walkie talkie product description 3 h19 walkie talkie product description 4

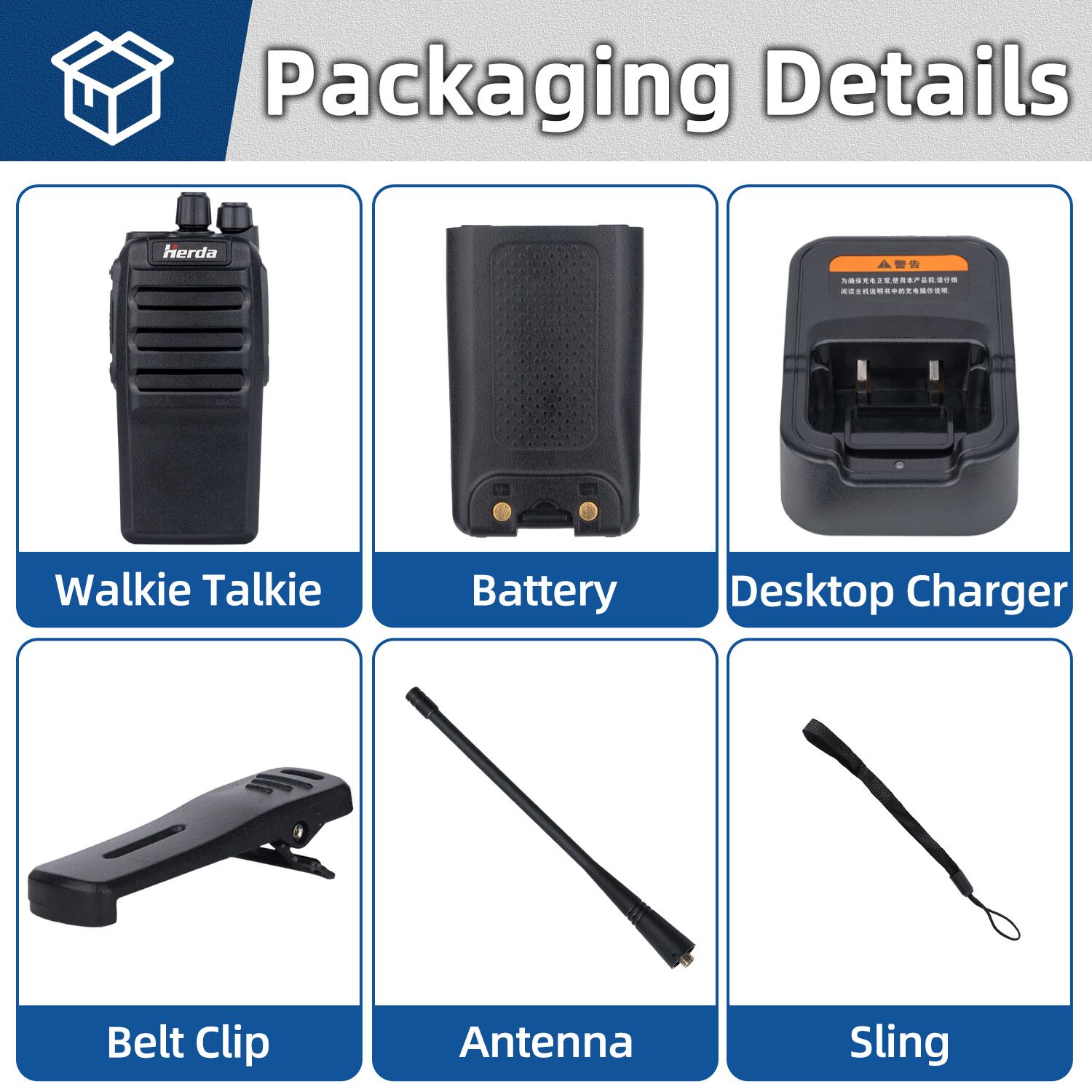

PACKAGE CONTENT

WHAT'S INCLUDED IN SINGLE PRODUCT UNIT:

  • H19 Walkie Talkie * 1
  • Long Antenna * 1
  • Battery * 1
  • Charging Stand * 1
  • Belt Clip * 1
  • Hanging Strap * 1
PRODUCT DATA

TECHNICAL SPECIFICATIONS

Frequency Range
UHF: 400-470MHz
VHF: 136-174MHz
Channel Capacity
16 Channels
Channel Spacing
25KHz, 12.5KHz
Operating Voltage
DC 7.4V ±15%
Battery Capacity
2200mAh
Battery Life
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
Frequency Stability
±2.5ppm
Antenna Impedance
50Ω

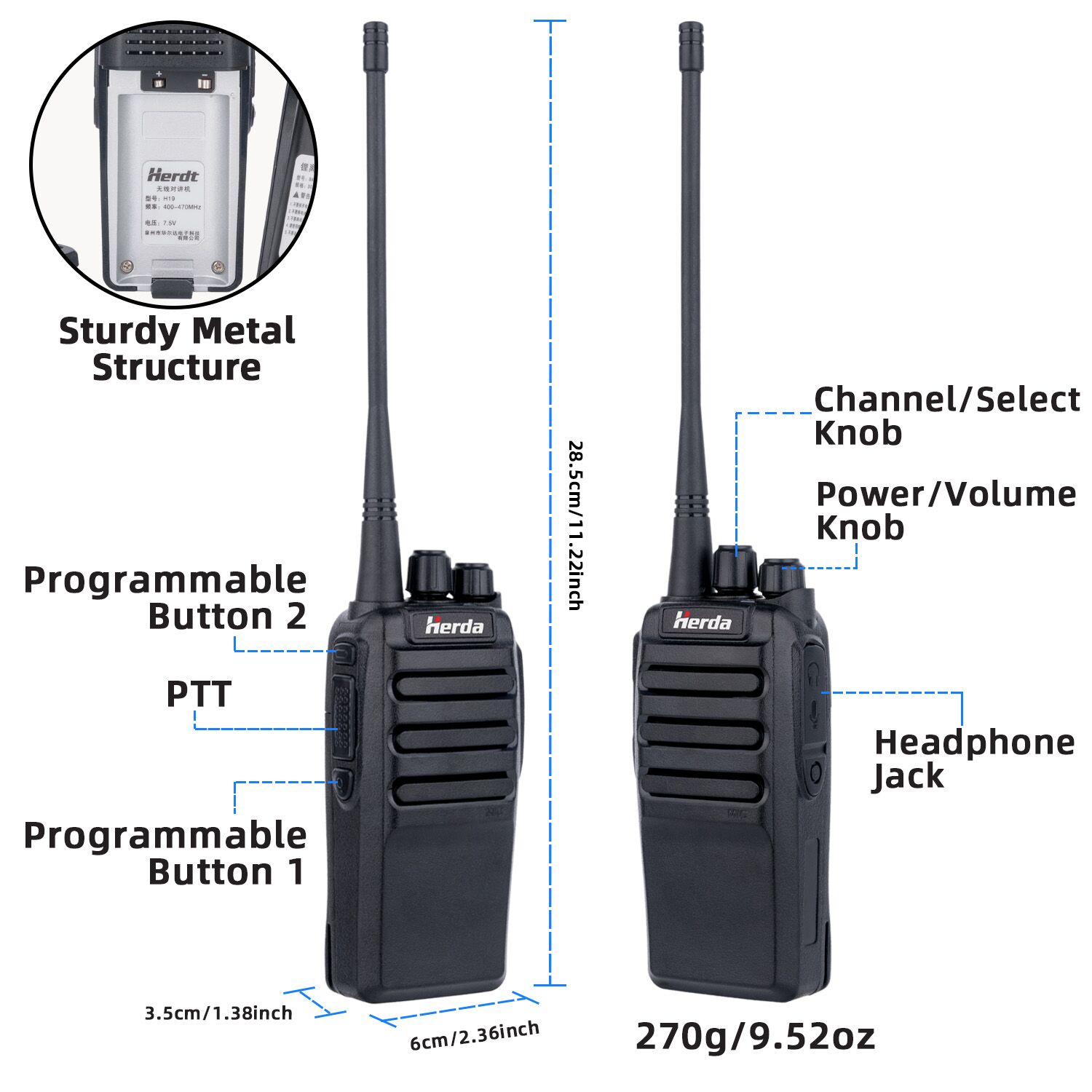

Dimensions (L x W x H)
285*60*35 mm (11.22*2.36*1.38 in)
Weight
About 270g (9.52oz)
Sensitivity
<0.16μV (12dB SINAD)
Intermodulation
≤60 dB
Rated Audio Power Output
≥0.5W±10%
Signal-to-noise Ratio (SNR)
≥45 dB
Adjacent Channel Selectivity
≥60 dB
Rated Audio Receiving Distortion
≤5%
Spurious Response
≤70 dB
RF Power Output
10 Watts; 5 Watts
Modulation Mode
F3E
Frequency Stability
±2.5ppm
Adjacent Channel Power Default & Wide Band
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc
Modulation Distortion
≤5%
Modulation Limitation Default & 25KHz
≤5KHz (25KHz)
≤2.5KHz (12.5KHz)
Spurious Emission
≤-36dBm
